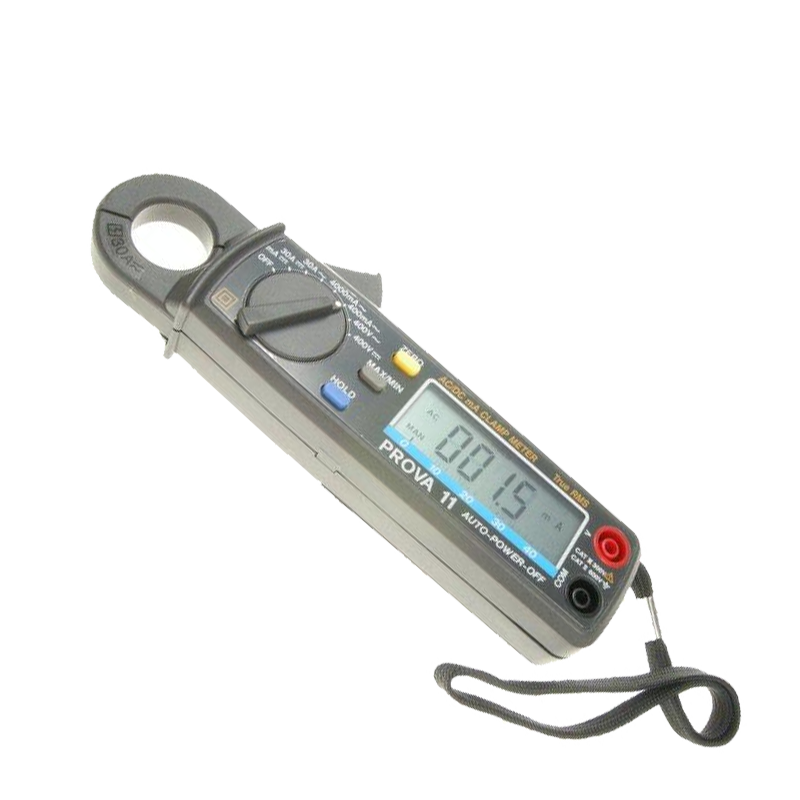

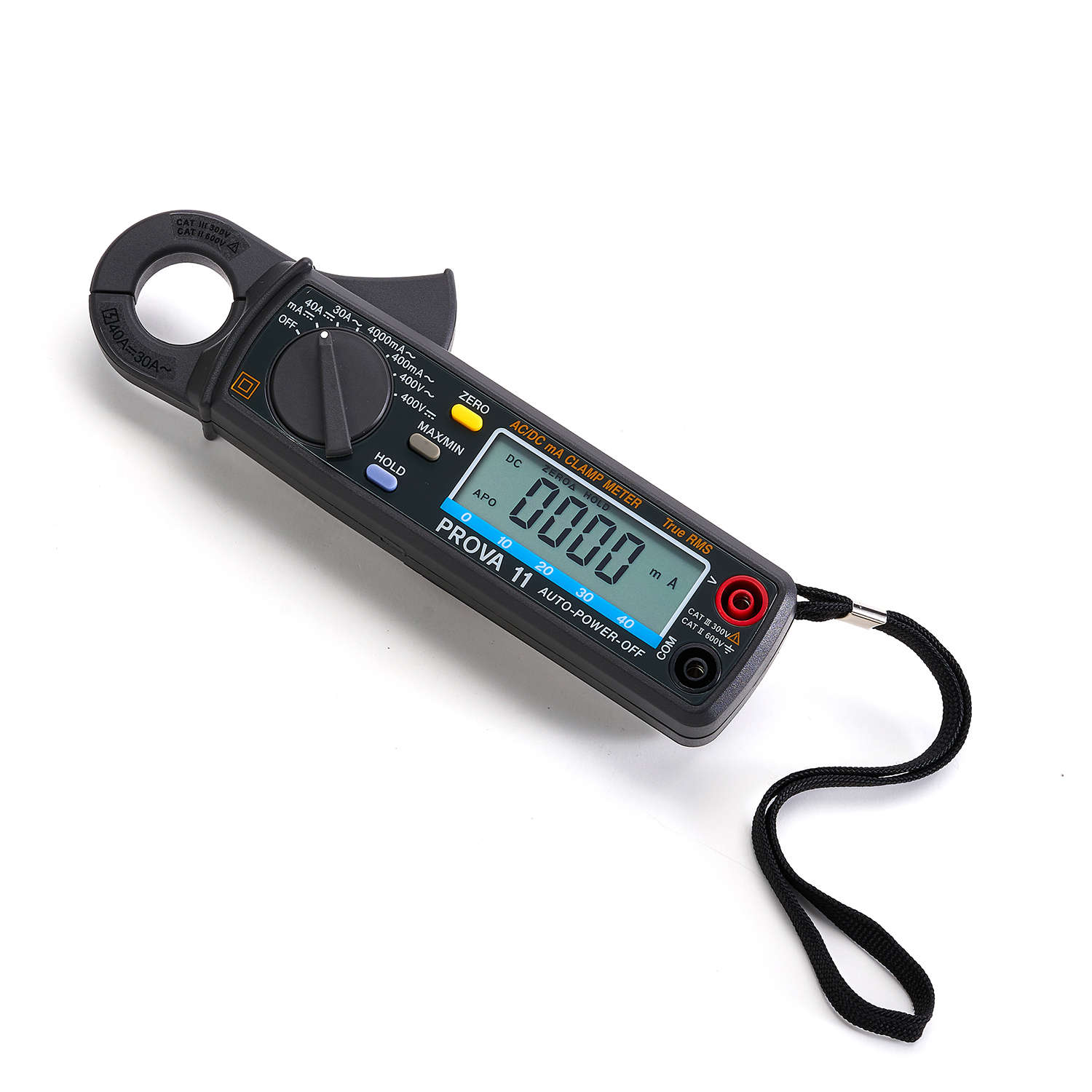

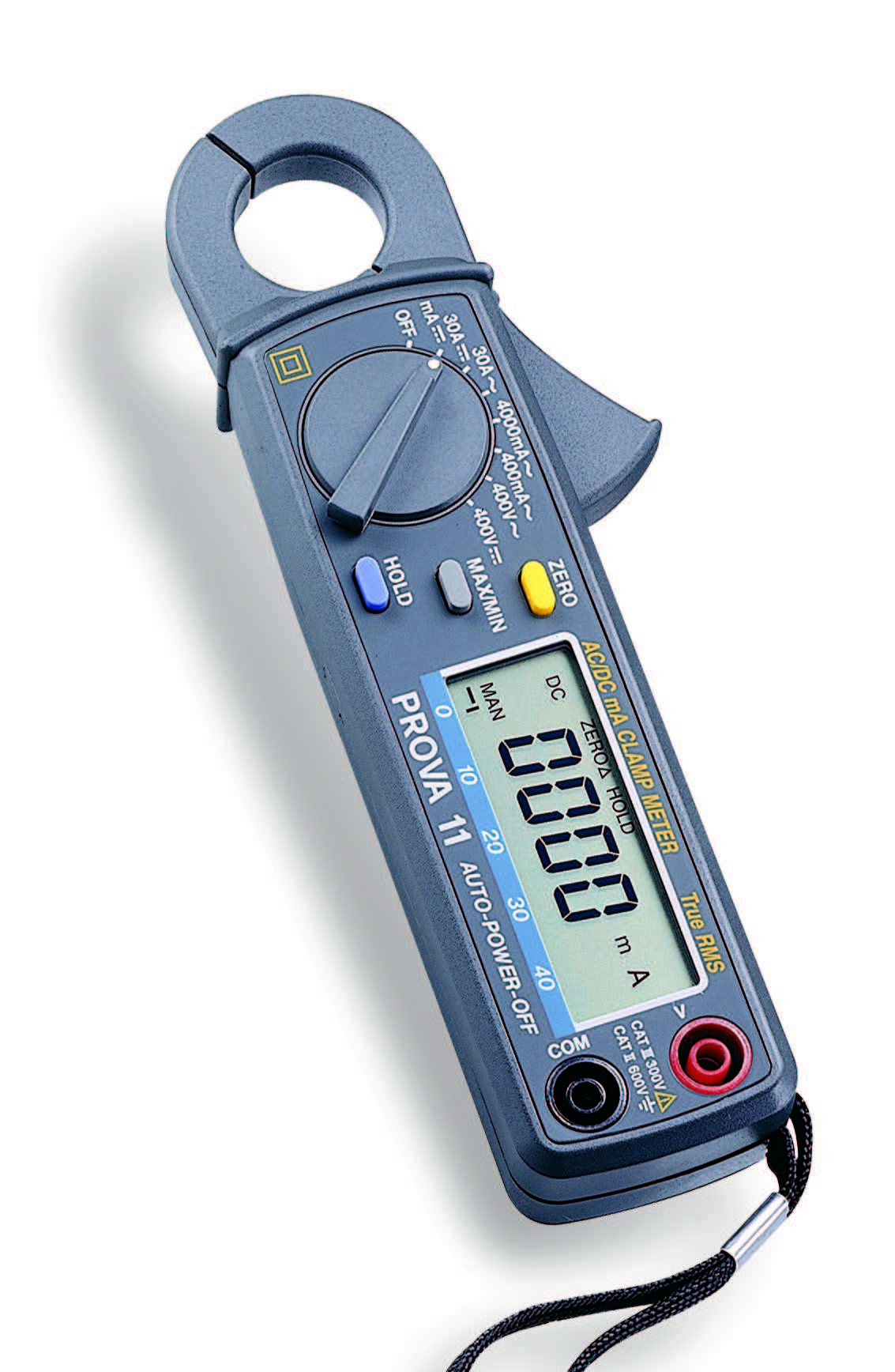

Prova-11 mini amp digital current clamp meter Product ID: Prova-11
PROVA 11
AC/DC mA Clamp Meter
■ Accurate digital clamp meter for Current measurement:
AC current: 0 ~ 30A (True RMS)
DC current: 0 ~ 40A
■ Accurate digital clamp meter for Voltage measurement:
AC voltage: 0 ~ 400V (True RMS)
DC voltage: 0 ~ 400V
■ AC 0.1mA, DC 1mA high resolution
■ One touch zero for DCA adjustment
■ 23 mm diameter jaw
■ Large 3 3/4 digits LCD
■ Fast bargraph display (30 times/sec.) for transient observation
■ Max/Min and Data Hold functions
■ Auto power off
■ Easy single rotary switch for any function selection
Electrical Specifications: (23℃±5℃)
DC Current:
Range Resolution Accuracy Overload Protection
mA (0-4A) 1mA ±2.0%±3dgts DC 40A
30A 10mA ±2.0%±3dgts DC 100A
40A 10mA ±2.5%±3dgts DC 100A
AC Current: (True RMS, Crest Factor < 3)
Range Resolution Accuracy
50/60 Hz 40 - 100Hz
Overload Protection
400mA 0.1mA ±1.5%±5dgts ±2.0%±5dgts AC 40A
50/60 Hz 40 - 1KHz
4000mA 1mA ±2.5%±5dgts ±3.0%±5dgts AC 40A
30A 10mA ±2.0%±5dgts ±2.5%±5dgts AC 100A
DC Voltage:
(Input Impedance: 10MΩ)
Range Resolution Accuracy Overload Protection
400V 0.1V ±1.0%±2dgts DC 1000V
AC Voltage:
(Input Impedance: 10MΩ, True RMS, Crest Factor < 3)
Range Resolution Accuracy
50/60 Hz 40 - 1KHz
Overload Protection
400V 0.1V ±1.5%±4dgts ±2.0%±5dgts AC 800V
General Specifications:
Conductor Size: 23mm max. (approx.)
Dimension (Box): 183 (L) x 61.3 (W) x 35.6 (H) mm
7.2" (L) x 2.5" (W) x 1.4" (H)
Battery Type: two 1.5V SUM-3
Display: 3 3/4 LCD with 40 seg. bargraph
Range Selection: Manual
Overload Indication: OL
Power Consumption: 15 mA (approx.)
Low Battery Indication:
Sampling Time: 3 times/sec. (display)
30 times/sec. (bargraph)
Operating Temperature: -10°C to 50°C
Operating Humidity: less than 85% relative
Altitude: up to 2000M
Storage Temperature: -20°C to 60°C
Storage Humidity: less than 75% relative
Weight: 190g (battery included)
Accessories: Carrying bag x 1
Users manual x 1
Batteries 1.5V x 2
Test leads x 1
