GDS-1072B / GDS-1074B / GDS-1102B / GDS-1104B / GDS-1000B Digital Oscilloscope 50MHz , 70 MHz , 100 MHz Product ID: GDS-1072B / GDS-1074B / GDS-1102B / GDS-1104B / GDS-1000B

Digital oscilloscopes have entered an epoch-making generation. Innovative design, compact appearance, and abundant functionalities together forge this simple-in-look oscilloscope a very powerful test and measurement instrument which facilitates engineers to easily solve complex measurement issues. This is the latest definition of digital oscilloscope defined by GDS-1000B. The GDS-1000B series demonstrates the impeccable functionalities with an extremely ordinary pricing, which allows customers to realize the true meaning of bigger bang for the buck. Although, the GDS-1000B series is under the category of general purpose oscilloscope, the full functionalities within this simple-in-look oscilloscope, including parameter measurement, cursor indication, digital voltage meter, and data logging, surpasses the same category 1000 series oscilloscopes in the market. All applications of the GDS-1000B series can be applied to the educational field and the fundamental R&D units of the industrial sector.


The GDS-1000B series features three bandwidth selections ─ 100 MHz, 70 MHz, 50MHz and equips with analog signal input terminals by four or two channels ( 50MHz only equipped 4 channels input ). The maximum sampling rate for each single channel is 1GSa/s, and the memory depth is 10Mpts per channel independently. The waveform update rate is 50,000wfms/s, which helps users to precisely observe the detailed waveform variation. Additionally, 7” WVGA color LCD display and the 256 color gradient display function together allow waveforms to be observed with the senses of transparency and gradation. With respect to the horizontal time scale adjustment knob and trigger level adjustment knob, GW Instek provides a very thoughtful design ─the zero key function, which allows engineers to work more effectively.


For mathematical analysis mode, 1Mpts FFT signal display makes the dull frequency domain signal analysis more delicate. Diversified trigger functions, X-Y mode analysis, and Go/NoGo function arm the GDS-1000B series oscilloscope with higher level measurement technologies. The GDS-1000B series oscilloscope also provides OpenWave connection software, which allows users to conduct waveform observation and data storage controlled by remote PC. Moreover, the innovative exterior design and compact design also bring much convenience to users. Other diversified and charming multi-functional operation demonstrates the concept of complete technology integration.






  • Waveform update rate up to 50,000wfms/s

  • 256 color gradient display

  • 10M memory depth per channel independently

  • 1M FFT mathematical sampling analysis mode

  • Zoom In/Play and Pause Function

  • Diversified Trigger Functions

  • X-Y Mode Display

  • Go/NoGo Function

  • Digital Voltage Meter Function

  • Data Log Function

  • Digital Filter Function

  • 36 Measurement Parameter Selections

  • OpenWave Connection Software

Category: Oscillosocpes
Certificate:CE

GDS-1000B Specifications:

*GDS-1054B

Channels 4
Bandwidth DC ~ 50MHz (–3dB)
Rise Time 5ns
Bandwidth Limit 20MHz

*GDS-1072B

Channels 2 + Ext
Bandwidth DC ~ 70MHz (–3dB)
Rise Time 5ns
Bandwidth Limit 20MHz

*GDS-1074B

Channels 4
Bandwidth DC ~ 70MHz (–3dB)
Rise Time 5ns
Bandwidth Limit 20MHz

*GDS-1102B

Channels 2 + Ext
Bandwidth DC ~ 100MHz (–3dB)
Rise Time 3.5ns
Bandwidth Limit 20MHz

*GDS-1104B

Channels 4
Bandwidth DC ~ 100MHz (–3dB)
Rise Time 3.5ns
Bandwidth Limit 20MHz

  • VerticalVertical Sensitivity Resolution 8 bit :1mV*~10V/div
  • Input Coupling AC, DC, GND
  • Input Impedance 1MΩ// 16pF approx.
  • DC Gain Accuracy* ±3%
  • Polarity Normal & Invert
  • Maximum Input Voltage 300Vrms, CAT I (300Vrms CAT II with GTP-070B- 4/100B-4 10:1 probe)
  • Offset Position Range 1mV/div : ±1.25V, 2mV/div ~ 100mV/div : ±2.5V, 200mV/div ~ 10V/div : ±125V
  • Waveform Signal Process Plus, -, ×, ÷, FFT, FFTrms, User Defined Expression FFT: Spectral magnitude. Set FFT Vertical Scale to Linear RMS or dBV RMS, and FFT Window to Rectangular, Hamming, Hanning, or Blackman-Harris
  • TriggerSource CH1, CH2, CH3*, CH4*, Line, EXT** *four channel models only. **two channel models only.
  • Trigger Mode Auto (supports Roll Mode for 100 ms/div and slower), Normal, Single Sequence
  • Trigger Type Edge, Pulse Width, Video, Pulse Runt, Rise & Fall,Timeout, Alternate, Event-Delay(1~65535 events), Time-Delay(Duration, 4nS~10S), Bus
  • Holdoff range 4ns to 10s
  • Coupling AC, DC, LF rej., Hf rej., Noise rej.
  • Sensitivity 1div
  • External Trigger Range ±15V
  • Sensitivity DC ~ 100MHz Approx. 100mV, 100MHz ~ 200MHz Approx. 150mV
  • Input Impedance 1MΩ±3%~16pF
  • HorizontalTime base Range 1ns/div ~ 100s/div (1-2-5 increments)
  • ROLL: 100ms/div ~ 100s/div
  • Pre-trigger 10 div maximum
  • Post-trigger 2,000,000 div maximum
  • Timebase Accuracy ±50 ppm over any ≥ 1 ms time interval
  • Real Time Sample Rate 1GSa/s max.
  • Record Length Max. 10Mpts
  • Acquisition Mode Normal, Average, Peak Detect, Single
  • Peak Detection 2nS (typical)
  • Average selectable from 2 to 256
  • X-Y ModeX-Axis Input Channel 1; Channel 3* *four channel models only
  • Y-Axis Input Channel 2; Channel 4* *four channel models only
  • Phase Shift ±3° at 100kHz
  • Cursors and MeasurementCursors Amplitude, Time, Gating available; Unit: Seconds(s), Hz(1/s), Phase(degree), Ration(%)
  • Automatic Measurement 36 sets: Pk-Pk, Max, Min, Amplitude, High, Low, Mean, Cycle Mean, RMS, Cycle RMS, Area, Cycle Area, ROVShoot, FOVShoot, RPREShoot, FPREShoot, Frequency, Period, RiseTime, FallTime, +Width, -Width, Duty Cycle, +Pulses, -Pulses, +Edges, -Edges, FRR, FRF, FFR, FFF, LRR, LRF, LFR, LFF, Phase
  • Cursors measurement Voltage difference between cursors ( ΔV) Time difference between cursors ( ΔT)
  • Auto counter6 digits, range from 2Hz minimum to the rated bandwidth
  • Control Panel FunctionAutoset Single-button, automatic setup of all channels for vertical, horizontal and trigger systems, with undo Autoset
  • Save Setup 20set
  • Save Waveform 24set
  • DisplayTFT LCD Type7"" TFT WVGA color display
  • Display Resolution 800 horizontal × 480 vertical pixels (WVGA)
  • InterpolationSin(x)/x
  • Waveform DisplayDots, vectors, variable persistence (16ms~4s),infinite persistence
  • Waveform Update Rate50,000 waveforms per second, maximum
  • Display Graticule8 x 10 divisions
  • Display ModeYT, XY

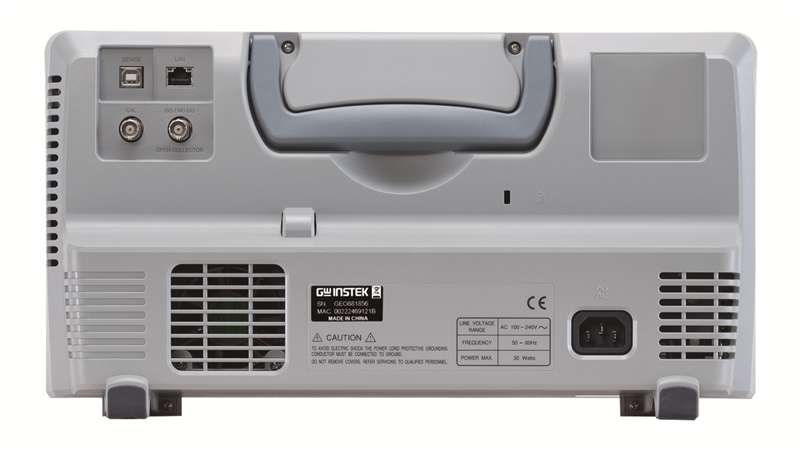

  • InterfaceUSB PortUSB 2.0 High-speed host port X1, USB High-speed 2.0 device port X1
  • Ethernet Port(LAN)RJ-45 connector, 10/100Mbps with HP Auto-MDIX (Only for the GDS-1054B, GDS-1074B, GDS-1104B.)
  • Go-NoGo BNC5V Max/10mA TTL open collector output
  • Kensington Style LockRear-panel security slot connects to standard Kensington-style lock
  • MiscellaneousMulti-language menuAvailable
  • Operation EnvironmentTemperature: 0°C to 50°C. Relative Humidity ≤80% at 40°C or below; ≤ 45% at 41°C ~ 50°C
  • On-line helpAvailable
  • Dimensions380mmX208mmX127.3mm
  • Weight2.8kg
