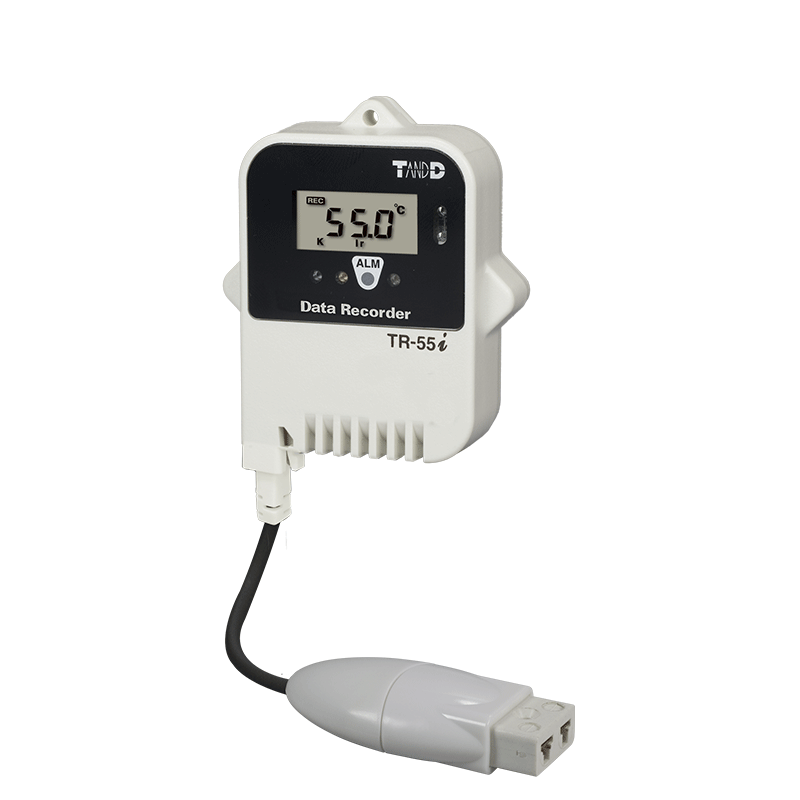

T&D TR-55i-Pt Infrared Temperature Data Logger

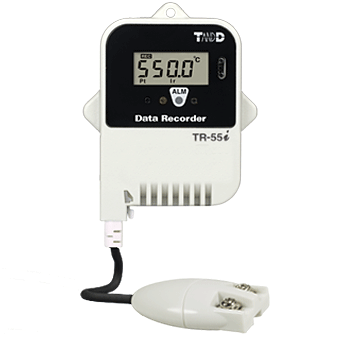

Compact temperature data logger TR - 55i - Pt for Pt100 / Pt1000

TR-55i-Pt is a temperature data logger compatible with Pt100 / Pt1000 sensor, no matter where you put it in a compact size.
By connecting an optional 3-wire Pt sensor, it is possible to record a wide range of temperatures from -199 to 600 ° C.
The recorded data can be transferred to the personal computer via either the optional communication port TR - 50U2 or the data collector TR - 57DCi, and graph display / data analysis is possible.
If you use the data collector, you can also collect and view data on site without retrieving the data logger.

Category: Thermometers
Certificate:CE
Measurement Channels Temperature 1ch
Sensor Pt100, Pt1000   3-wire, 4-wire
Measurement Units °C, °F
Measurement Range -199 to 600 °
Accuracy ±( 0.3 °C + 0.3 % of reading ) at 10 to 40 °C
±( 0.5 °C + 0.3 % of reading ) at -40 to 10 °C,40 to 80 °C
Measurement Resolution 0.1 °C
Logging Capacity 16,000 readings
Recording Interval Select from 15 choices: 1, 2, 5, 10, 15, 20, 30 sec. or 1, 2, 5, 10, 15, 20, 30, 60 min
Recording Mode Endless ( Overwrite oldest data when capacity is full ) or One Time ( Stop recording when capacity is full
LCD Display Items Measurements, Recording Status, Battery Life Warning, etc
Communication Interfaces Optical Communication Infrared Communication: IrPHY 1.2 low power
Power Lithium Battery LS14250 x 1
Battery Life Approx. 24 months 14 months with IR Communication Enabled
Dimensions H 62 mm x W 47 mm x D 19 mm
Weight Approx. 45g
Operating Environment -40 to 80°C
Waterproof Capacity IP64: Splash proof
Accessories Input Module PTM-3010
Data Collection Device Data Collector: TR-57DCi
Communication Port: TR-50U2 / 50U
Features:
  • Measurement Range: -199 to 600°C
  • Pt100, Pt1000 (3 wire) sensor
  • Logging Capacity: Up to 16,000 Readings
  • Low energy consumption for long battery life
  • Downloading Data: Infrared Communication / Optical Communication
  • Warning Monitoring Function
  • Compact Waterproof Type
