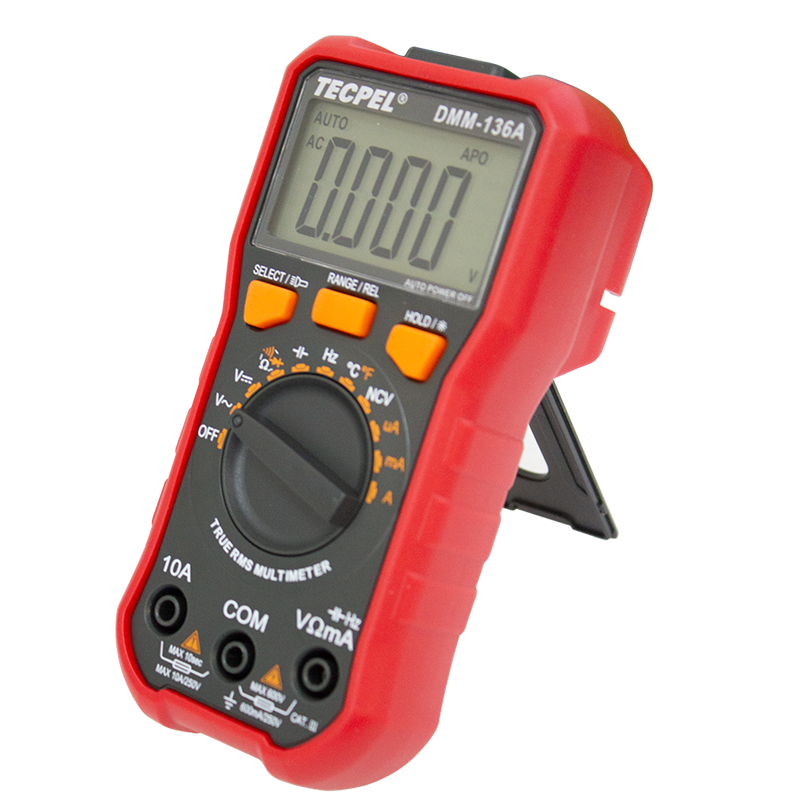

DMM-136A Digital multimeter Product ID: DMM-136A

Model Type : DMM-136A
*Brand New type holster, streamlined design, comfortable handle.
*Large LCD display makes reading clear.
*Strong antimagnetic and anti-interferential performance.
*Full function protection.
*Auto power off when there is no measurement in 15 minutes.
*Unit symbol display, easy to read.
*Lighting function, backlight display.
*True RMS , non-contact voltage detect (NCV), relative value measurement, frequency/duty cycle and data hold function.

General specifications:

Meter weight 195g(including battery)

Meter size 140×72×37mm

Standard accessory Test leads, battery, manual, TP01 temperature probe

Standard packing Gift box

Category: Multimeters
Certificate:CE
Meter weight : 195g(including battery)

Meter size : 140×72×37mm

Standard accessory Test leads, battery, manual, TP01 temperature probe

Standard packing Gift box
Product introduction:
DMM-136A is a 5,999-digit multi-function meter with high stability and performance.
Using a 20mm high LCD screen, the subtitles are clearer and easier to read.
DMM-136A can test DCV, ACV, DCA, ACA, resistance, capacitance, frequency, NCV, duty cycle, temperature, diode and continuity.
Including unit symbol display, data retention, lighting function, auto range, auto power off and warning function.
This instrument adopts 8-bit microprocessor and double integral A/D conversion to achieve high resolution and precision.
It is the best choice tool for laboratories, factories and personal studios.
Measurement specifications:
Display digits: 5,999 display
DC voltage (DCV): 600mV/ 6V/ 60V/ 600V ±(0.5%+4)
AC voltage (ACV): 6V/ 60V/ 600V/ 600V ±(0.8%+6)
Direct current (DCA): 600uA/ 6000uA/ 60mA/ 600mA/ 6A/ 10A ±(1.0%+5)
Alternating current (ACA): 600uA/ 6000uA/ 60mA/ 600mA/ 6A/ 10A ±(1.5%+5)
Resistance (Ω): 600Ω/ 6kΩ/ 60kΩ/ 600kΩ/ 6MΩ/ 60MΩ ±(0.8%+1)
Temperature measurement: -40~1,000C (-40 ~ 1,832 °F) ±(1.0%+5)
Capacitance: 60nF/ 600nF/ 6uF/ 60uF/ 600uF/ 6mF/ 60mF ±(3.5%+8)
Frequency: 10Hz/ 100Hz/ 1kHz/ 10kHz/ 100kHz/ 1MHz/ 10MHz ±(0.5%+4)
Sampling frequency: 3 times per second
AC frequency response: 40Hz-2kHz
Product Features:
Automatic shut-down
Backlit display
Conduction buzzer: less than 50Ω
Diode measurement: 0.001V
Value hold
Protection specification: CAT II 250V
True mean square rooted True RMS
Non-contact voltage detection NCV
Lighting function
Duty cycle: 1%~99%
Low battery indicator: battery voltage is lower than 2.4V
Input impedance: 10MΩ
Product Information:
Operating environment: -10~60°C / less than 75%RH and no condensation
Storage environment: 0~40°C / less than 75%RH and no condensation
Power specification: DC 1.5V battery (No. 4) x2
Product size: 140 × 72 × 37mm
Weight: about 195g (including battery)
Accessories: probe, battery, manual, temperature measuring line
