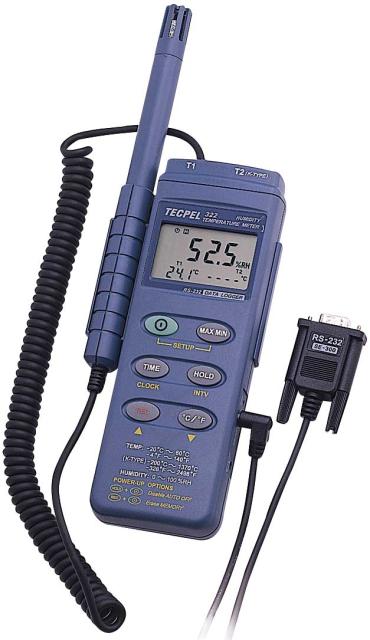

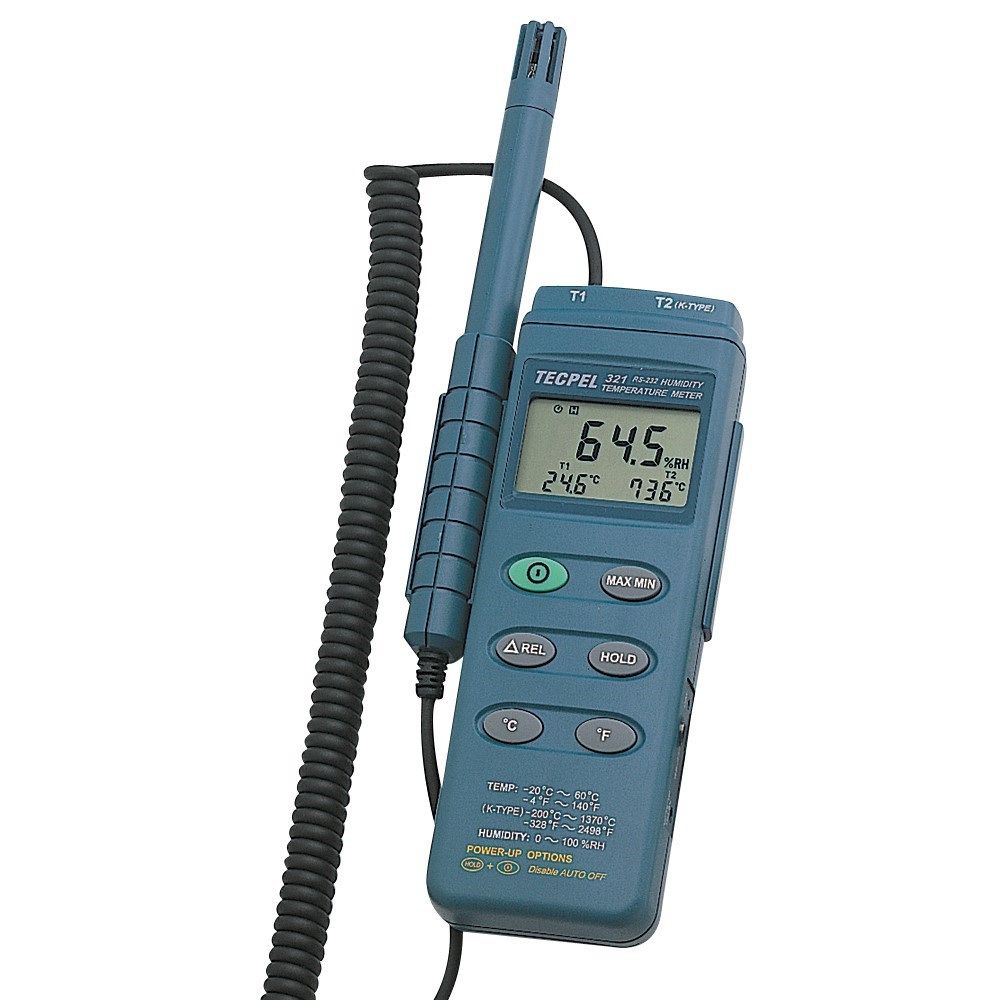

DTM-321 / DTM-322 Temperature and Humidity Meter Product ID: DTM-321 , DTM-322

DTM-321: Dual Input.Temperature and humdity meter.
DTM-322: Dual Input + Data Recorder.+RS-232 interface (optional USB cable)
Company Web Site: http://www.tecpel.com

Category: Data Loggers
Certificate:CE

Specifications

Temperature humidity meter data logger data recorder DTM-322: Dual Input + Data Recorder.+RS-232 interface (optional USB cable)

Temperature  Humidity meter data logger data recorder

Hygro thermometer

DTM-322: Hygrometer,   Humidity Temperature meter

  • Temp:-20°C ~ 60°C (-4°F ~ 140°F ); K-type: -200°C ~ 1,370°C (-328°F ~ 2,498°F); Humidity: 0 ~ 100% RH
  • Data Logging capacity 16,000 records.
  • 4 Digit, Triple display.
  • K-type Termocouple.
  • Reading hold, °C or °F annunciators.
  • MAX, MIN function.
  • Auto power off.
  • Time function.
  • Automatic low battery indication.
  • RS-232 computer interface.
  • RS-232 cable and software for Windows.

Specification :

Measurement Range:
 T1:-20 ~ 60 (-4 ~ 140)

T2:K-type:-200 ~ 1370 (-328 ~ 2498)
Humidity:
 0~100%RH, Accuracy ±2.5%RH

Accuracy:

  -20 ~ +60:
 T1:±0.7

  -4 ~ 140
 T1:±1.4

  -200 ~ 1370:
 T2:±(0.3%rdg+1) typical

  -328 ~ 2498
 T2:±(0.3%rdg+2) typical

Temperature Scale:
 Celsius or Fahrenheit user-selectable

Resolution:
 Humidity:0.1%RH;Temp.T1:0.1,0.1

T2:-200~200,0.1; 200 ~ 1370,1.

Sensor:
 K­-type Thermocouple

Response Time (T1):
 Humidity:75 sec. in slowly moving air

Temperature:
 40 sec. in slowly moving air

Input Protection:
 60V DC or 24V rms AC Maximum

General
Power Requirement:
 1 piece 9V battery

Dimensions:
 Meter:10.8""x2.5""x1.2"" (186x64x30mm)

Probe:7.5""x0.6"" (190x15mm)

Weight:11.2 oz(320g)

Accessories: 1 x TPK-01,probe, 9V battery, Deluxe carrying case,  owners manual, RS-232 cable & software for Windows

  • DTM-321:
    • Temp:-20°C ~ 60°C (-4°F ~ 140°F ); K-type: -200°C ~ 1,370°C (-328°F ~ 2,498°F); Humidity: 0 ~ 100% RH
    • 4 Digit, Triple display.
    • K-type Termocouple.
    • Reading hold °C or °F annunciators.
    • MAX, MIN. function.
    • Auto power off.
    • ΔREL function.
    • Automatic low battery indication.
    • RS-232 computer interface.
    • RS-232 cable and software for Windows (Options).
  • DTM-322:
    • Temp:-20°C ~ 60°C (-4°F ~ 140°F ); K-type: -200°C ~ 1,370°C (-328°F ~ 2,498°F); Humidity: 0 ~ 100% RH
    • Data Logging capacity 16,000 records.
    • 4 Digit, Triple display.
    • K-type Termocouple.
    • Reading hold, °C or °F annunciators.
    • MAX, MIN function.
    • Auto power off.
    • Time function.
    • Automatic low battery indication.
    • RS-232 computer interface.
    • RS-232 cable and software for Windows.
