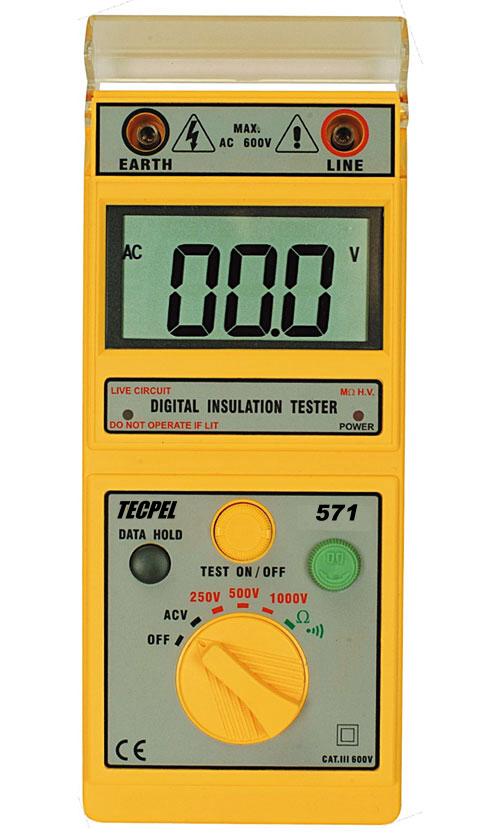

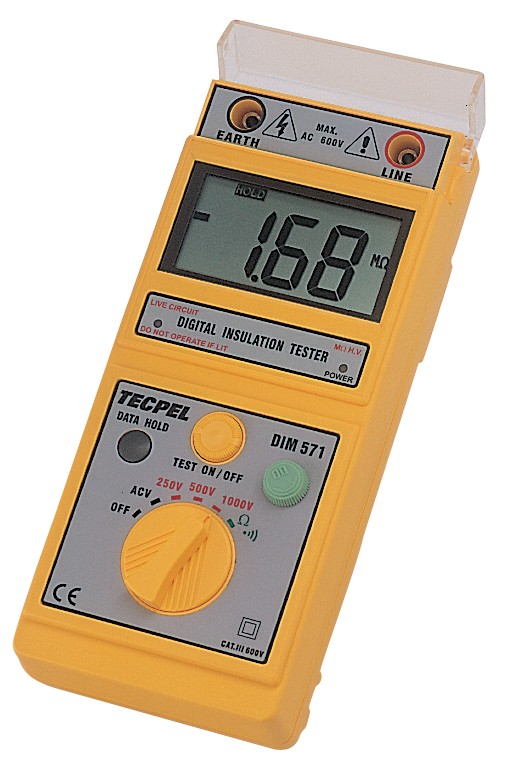

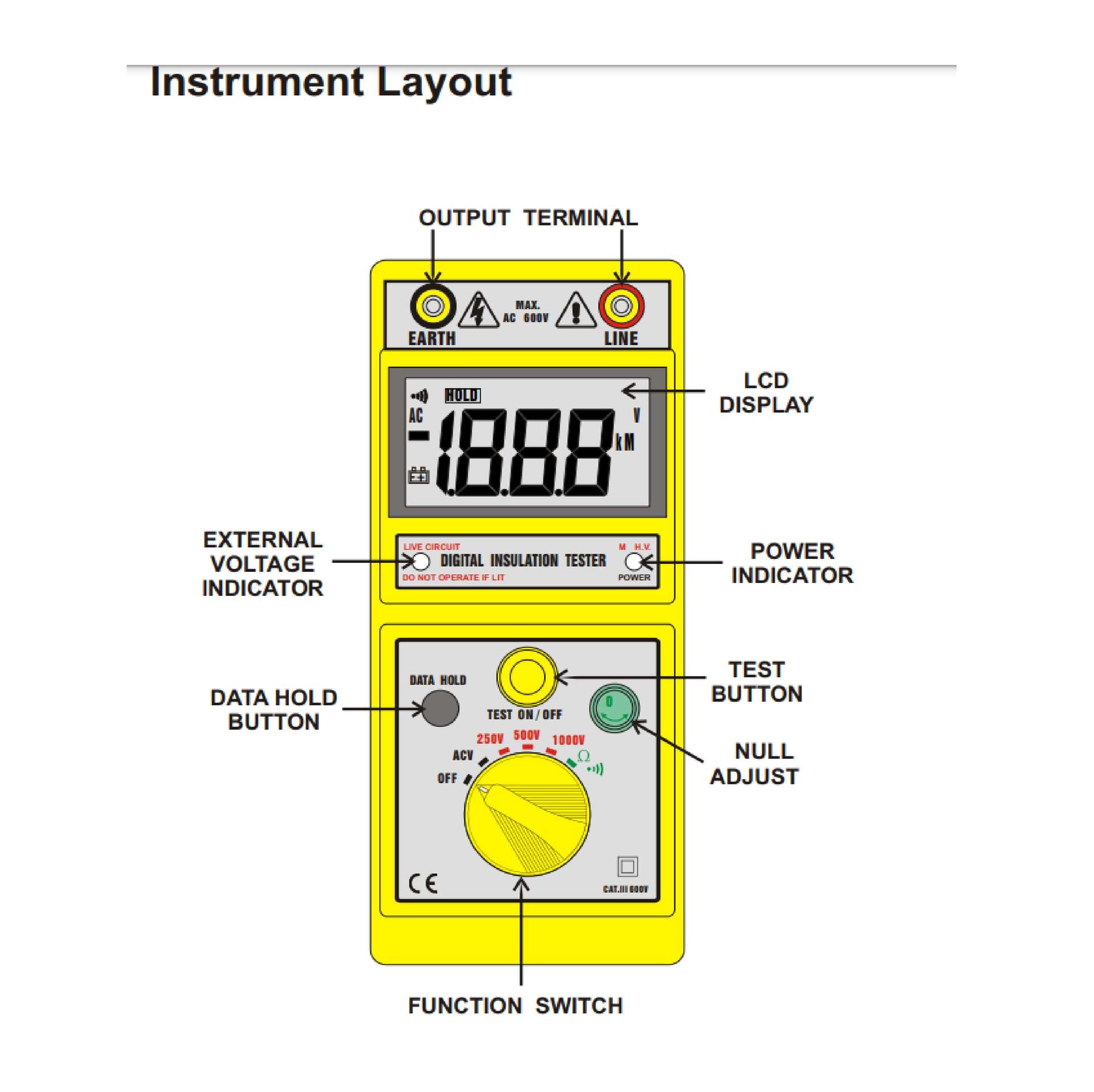

DIM-571 Digital Insulation Tester Product ID: DIM-571

FEATURES:
1. DIM-571 is a LCD Indicated instruments for insulation (M Ohm), Continuity (OHM) and AC Voltage
2. Three Insulation test voltage (DCV): 250V, 500V, 1,000V.
3. Large LCD display(68 x 34mm)
4. Test Insulation at rated voltate into 1 1mA load
5. 200mA short circuit continuity current.
6. Timer for test functions (3 ~ 5 minutes)
7. Data Hold function
8. Auto power off function
9. Automatic circuit dischage
10. Fuse proection
11. EN61010 CAT III 600V
12. BS 16"" Edition

Certificate:CE
  • Why Insulation Test Is necessary?
    • A. Insulation:
    • 1. Every electrical apparatus and installation need to be safe for the user and for the equipment itself.
    • 2. Electrical conductors of electricity need to be insulated from each other so that they do not create electrical hazard or unnecesary consumption.
    • 3. Badly insulated circuits can create leakage current which can be dangerous and trip your GFCI, RCCB or ELCB.
    • 4. Each Country regulate those levels at which the insulation ia aceptable.
    • Generally, insulation resistance measurements are done between each conductor and the earth, and between each conductors.
    • B. Continuity
    • Checking the continuity of wires, complete circuits, connections, closure of contacts, circuit breakers, fuses, bounding resistance of connections, etc. are all very important.
  • INSULATION RESISTANCE:
    • Insulation Resistance:
    • 1. Test Range DCV : 250V/500V/1000V
    • 2. Meausuring Ranges(Auto) : 20/200/2,000M Ohm
    • 3. Resolution: 0.01/ 0.1/ 1M Ohm
    • 4. Output Voltage: Rated test voltage +10%
    • 5. Output Current: 1mA DC
    • 6. Power Consumption: Max consumption current Approx. 250mA
    • 7. Accuracy: 20M Ohm : +/-(1.5% reading+ 5 dgts), 200M Ohm :+/-(2.5% reading + 3 dgts), 2000M Ohm : +/-(5% reading + 5 dgts)
  • CONTUNITY TEST
    • 1.Measuring Ranges (Auto) 20/ 200/ 2000 Ohm
    • 2. Resolution: 0.01 / 0.1/ 1 Ohm
    • 3. Buzzer Sound Below: Under 1 Ohm
    • 4. Open circuit Terminal voltage: 4V DC Min
    • 5. Short Circuit Terminal Current: 200mA DC Min
    • 6. Power Consumption: Max. Consumption current Approx. 300mA
  • AC VOLTAGE:
    • 1. AC Voltage Ranges: 0 ~ 600V
    • 2. Resolution: 1V
    • 3. Line Frequency Range: 40 ~ 120 Hz
    • 4. Accuracy: +/- (1.5% reading + 3 dgts)
  • GENERAL SPECIFICATIONS:
    • 1. LCD : 3 1/2 Digits , 2000 counts
    • 2. Over range display: 1
    • 3. Dimension: 205 (L) x 90(W) x 55(D) mm
    • 4. Weight: 600 g Approx. (battery included)
    • 5. Power Source: 1.5V (SUN-3) x 6 Type AA

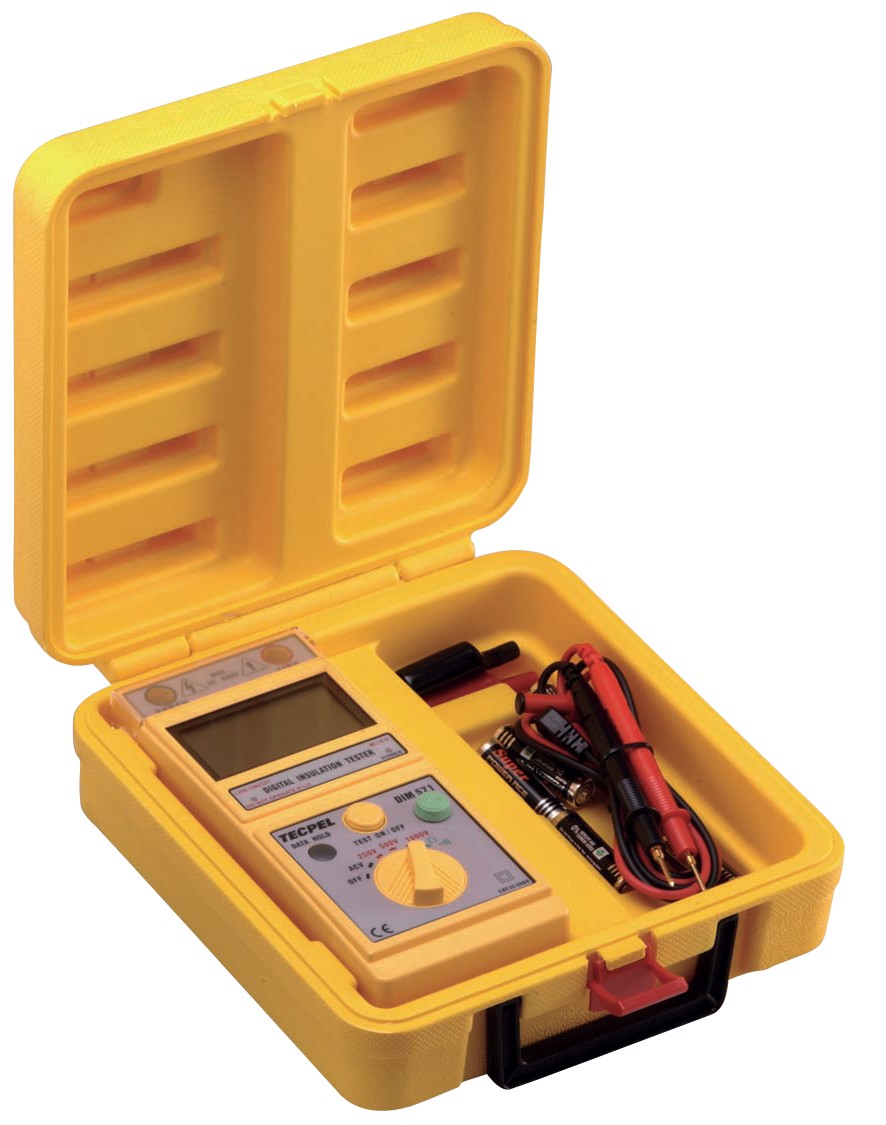

    • 6. Accessories: Insutrion Manual , test leads, Fuse (0.5A, 250V), Batteries, Hard carrying case.
