HV-40, HVP-40M High Voltage Probe / High Voltage Analog Meter Product ID: HV-40 / HVP-40M
High Voltage Test Probe
Model：HV-40 Features :
Connect to any digital multimeter with industry
standard jacks to measure up to 40K VDC
or peak AC or 28KV rms AC.
-----------------------------------------
HVP-40M Features:
DC 40KV CAT II Pollution 2
600M Ohm Impedance
25KV ± 2%, 40KV ± 3%
T.C. 200 ppm/°C.
Positive Polarity only.
Resolution 1KV
No Need power.
CE, TUV GS, UL, CUL, IEC1010
- HV-40 SPECIFICATION:
- Max. Working Voltage : 40kV DC or Peak AC 28kV rms AC
- Accuracy : DC Volts : +1%(1kV to 20kV); +2%(20kV to 40kV)
- AC Volts : Typically 5% at 60Hz
- Division Ratio : 1000 : 1
- Input Resistance : Approx. 1000M Ohm
- Cable length : 1 meter
- TECPEL CO., LTD
- E-MAIL: sales@tecpel.com Web-site: http://www.tecpel.com
- TEL:2-27375866 FAX:886-2-27373343

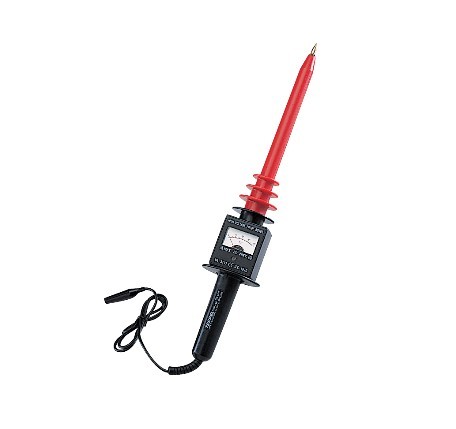

- HVP-40M
- SPECIFICATIONS ( 20 ± 5°C, RH < 80% )
- Before taking any measurements, first connect the alligator clip of this probe to earth ground and make sure connection is electrically good.
- Input impedance:600M Ohm
- Maximum operation voltage:40KV DC , CAT II , Pollution 2
- Polarity:Positive only
- Display:Analog indicate
- Accuracy:Factory calibrater 25KV ± 2%
- FULL scale 40KV ± 3 %
- Temperature Coefficient:Maximum loading Current:Maximum loading power:Voltage Range:40KV / 1 Range
- Voltage resolution:1KV
- Power source:Need not power
- Operating temperature:0 °C ~ + 50 °C.
- Storage temperature:- 20 °C ~ + 70 °C.
- Ground lead length:90cm ( 35 "" )
- Dimensions:420 L x 80 ø
- Weight:360g
