TR-55i-PT T&D Infrared Temperature Data Logger Product ID: TR-55i-PT
Product Summary:
TR - 55i - Pt is a temperature data logger compatible with Pt100 / Pt1000 sensor, no matter where you put it in a compact size.
By connecting an optional 3-wire Pt sensor, it is possible to record a wide range of temperatures from -199 to 600 ° C.
The recorded data can be transferred to the personal computer via either the optional communication port TR - 50U2 or the data collector TR - 57DCi, and graph display / data analysis is possible.
If you use the data collector, you can also collect and view data on site without retrieving the data logger.
TandD TR-55i-PT
Temperature Measurement Range: -199°C to 600°C
PT100, PT1000 (3 wire) sensor available as option)
Logging Capacity: Up to 16,000 Readings
Low energy consumption for long battery life
Downloading Data: Communication Interfaces Optical, Infrared
Warning Monitoring Function
Compact Waterproof Capacity IP64
Channels Temperature 1ch
Because the TR-55i-Pt is capable of measuring a wide range of temperature with high accuracy, it is perfect for recording temperature in research using deep freezers, high temperature testing, and low temperature testing.

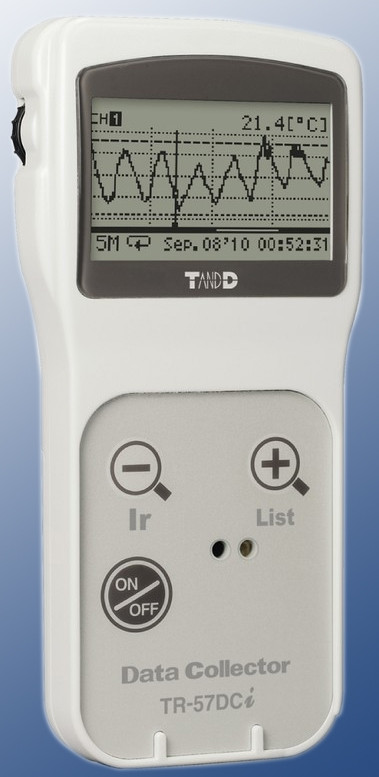

Two ways to download recorded data. By using our Data Collector TR-57DCi, it is possible to download data on site for immediate checking. By connecting our Communication Port TR-50U2 to your PC via a USB cable, you can easily download data by placing the logger face down on the port. Data downloaded to your PC can then be viewed and analyzed with our Windows compatible software “T&D Graph”.
| SPECIFICATIONS | |
|---|---|
| Measurement Channels | Temperature (Pt100, Pt1000) |
| Measurement Range | -199 to 600 °C |
| Measurement Resolution | 0.1 °C |
| Accuracy | ±0.3°C+0.3%rdg (at 10 to 40°C) |
| Logging Capacity | 16,000 |
| Recording Interval | 1,2,5,10,15,20,30 sec / 1,2,5,10,15,20,30,60 min |
| Operating Environment | -40 to 80 °C |
| Waterproof Capacity | IP64 |
| Data Collection Devices | Communication Port : TR-50U2 Data Collector : TR-57DCi |
| Power | Lithium Battery |
| Dimensions | H62×W47×D19mm |
| Weight | Approx. 45g |
| Accessories | Lithium Battery Strap User's Manual |
- Measurement Range: -199 to 600°C
- Pt100, Pt1000 (3 wire) sensor
- Logging Capacity: Up to 16,000 Readings
- Low energy consumption for long battery life
- Downloading Data: Infrared Communication / Optical Communication
- Warning Monitoring Function
- Compact Waterproof Type
| SPECIFICATIONS | |
|---|---|
| Measurement Channels | Temperature (Pt100, Pt1000) |
| Measurement Range | -199 to 600 °C |
| Measurement Resolution | 0.1 °C |
| Accuracy | ±0.3°C+0.3%rdg (at 10 to 40°C) |
| Logging Capacity | 16,000 |
| Recording Interval | 1,2,5,10,15,20,30 sec / 1,2,5,10,15,20,30,60 min |
| Operating Environment | -40 to 80 °C |
| Waterproof Capacity | IP64 |
| Data Collection Devices | Communication Port : TR-50U2 Data Collector : TR-57DCi |
| Power | Lithium Battery |
| Dimensions | H62×W47×D19mm |
| Weight | Approx. 45g |
| Accessories | Lithium Battery Strap User's Manual |
