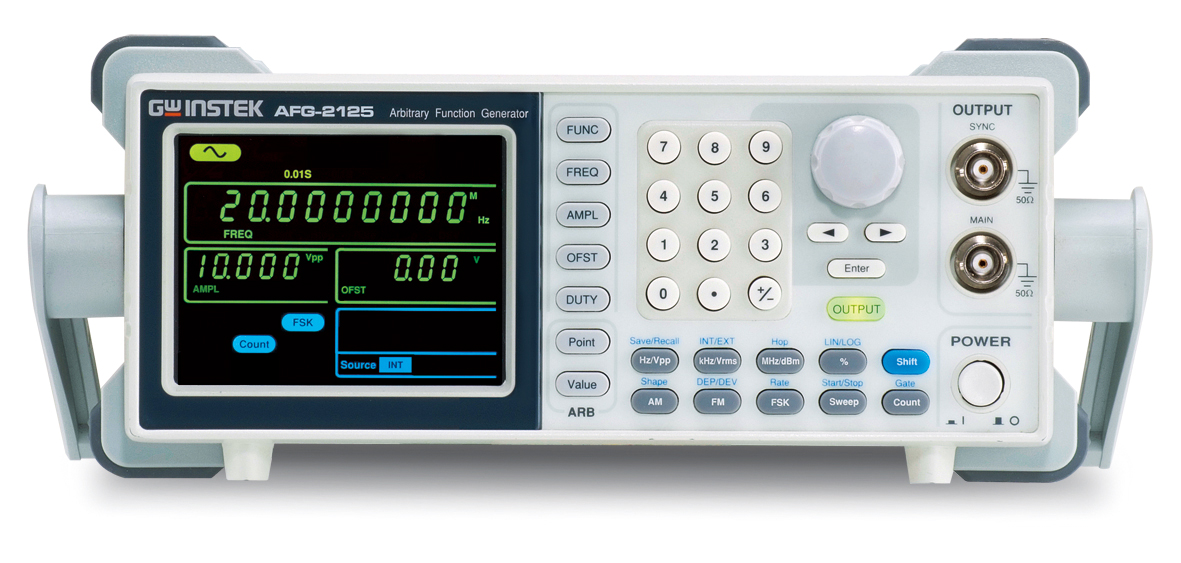

GWinstek AFG-2125, 2005, 2105, 2012, 2112, 2025 Arbitrary Function Generator DDS Direct Digital Synthesized Product ID: GWinstek AFG-2125, 2005, 2105, 2012, 2112, 2025

* PC Arbitrary Waveform Editing Software
* 0.1Hz to 5/12/25 MHz with in 0.1Hz Resolution
* Sine, Square, Triangular, Noise and Arbitrary Waveform
* 20MSa/s Sampling Rate, 10 bit Vertical Resolution and 4k Point Memory for Arbitrary Waveform
* 1% ~ 99% adjustable duty cycle for Square Waveform
* Waveform Parameter Setting Through Numeric Keypad Entry & Knob Selection
* Amplitude, DC Offset and Other Key Setting Information Shown on the 3.5” LCD Screen Simultaneously
* AM/FM/FSK Modulation, Sweep, and Frequency Counter Functions (AFG-2100 only)
* USB Device Interface for Remote Control and Waveform Editing

Certificate:

The user friendly interface of AFG-2100/2000 Series allows user to set waveform parameters, including waveform type, frequency, amplitude, DC offset, modulation type, and duty cycle, through keypad entry and/or the knob selection, and display the set parameters on the 3.5” LCD screen. The AFG-2100/2000 Series is equipped with a USB Device interface for remote control and waveform editing through a PC. A waveform editing software is provided to facilitate the waveform creation on the PC. After the waveform editing is done, the user is able to download the waveform data from PC to the AFG-2100/2000 Series for signal output.

The AFG-2100/2000 Series Arbitrary Function Generator is a DDS (Direct Digital Synthesized) based signal generator designed to accommodate the Educational and Basic Industrial requirements for an accurate and affordable signal source covering the output of Sine, Square (Pulse), Ramp (Triangle), Noise and Arbitrary waveforms. The 20M Sa/s sampling rate, 10 bit vertical resolution and 4k point memory of the AFG-2100/2000 Series provide user with a flexible environment for creating the specific waveform output as needed. The 0.1Hz resolution of Sine, Square and Triangle waveforms and the 1% ~ 99% adjustable duty cycle of Square (Pulse) waveform are the remarkable features to greatly extend its application range in various fields.


The AFG-2100/2000 Series includes 6 models in three frequency bands of 5MHz, 12MHz and 25MHz. Besides the basic features of the whole AFG-2100/2000 Series, AFG-2100 also carries additional features of AM/FM/FSK Modulation, Sweep, and Frequency Counter.


AFG-2125, 25MHz Arbitrary DDS Function Generator with Counter, Sweep, AM, FM and FSK ModulationAFG-2005, 5MHz Arbitrary DDS Function Generator
AFG-2105, 5MHz Arbitrary DDS Function Generator with Counter, Sweep, AM, FM and FSK Modulation
AFG-2012, 12MHz Arbitrary DDS Function Generator
AFG-2112, 12MHz Arbitrary DDS Function Generator with Counter, Sweep, AM, FM and FSK Modulation
AFG-2025, 25MHz Arbitrary DDS Function Generator

Models
AFG-2000 series
AFG-2100 Series
2005
2012
2025
2105
2112
2125
Waveforms


Sine, Square, Ramp, Noise, Arbitrary Waveform
Arbitrary Waveform

Sample Rate
20 MSa/s
Repetition Rate
10MHz
Waveform Length
4k points
Amplitude Resolution
10 bit
Non-Volatile Memory
4k points
Frequency Characteristics
Range
Sine, Square
0.1Hz
|
5MHz
0.1Hz
|
12MHz
0.1Hz
|
25MHz
0.1Hz
|
5MHz
0.1Hz
|
12MHz
0.1Hz
|
25MHz
Ramp
0.1Hz ~ 1MHz
Resolution
Sine, Square, Ramp
0.1Hz
Accuracy
Stability
±20 ppm
Aging
±1 ppm, per 1 year
Tolerance
 1 mHz
Output Characteristics
Amplitude
Range
1 mVpp to 10 Vpp( into 50Ω), 0.1Hz20MHz
2 mVpp to 20 Vpp(open-circuit) , 0.1Hz
20MHz
1 mVpp to 5 Vpp( into 50Ω), 20MHz25MHz
2 mVpp to 10 Vpp(open-circuit), 20MHz25MHz
Accuracy
± 2% of setting ±1 mVpp (at 1 kHz,>10 mVpp)
Resolution
1 mV or 3 digits
Flatness
± 1%  (0.1dB)  100kHz
± 3% (0.3 dB)
5MHz
± 4% (0.4 dB)   12MHz
± 20% (2 dB)
20MHz
± 5% (0.4 dB)   25MHz
(sine wave relative to 1 kHz)
Units
Vpp, Vrms, dBm
Offset
Range
±5 Vpk ac +dc (into 50Ω)
±10Vpk ac +dc (Open circuit)
±2.5 Vpk ac +dc (into 50Ω) for 20MHz-25MHz
±5Vpk ac +dc (Open circuit) for 20MHz-25MHz
Accuracy
2% of setting + 5 mV+ 0.5% of amplitude
Output
Impedance
50Ω typical (fixed) > 300kΩ (output disabled)
Protection (main output)
Short-circuit protected by overload relay automatically disables output
SYNC Output


Level
TTL-compatible into>1kΩ
Impedance
50Ω nominal
Rise or Fall Time
25ns
Sine wave Characteristics Harmonic Distortion
–55 dBc DC ~ 200kHz, Ampl > 0.1Vpp
–50 dBc 200kHz ~ 1MHz, Ampl > 0.1Vpp
–35 dBc 1MHz ~ 5MHz, Ampl > 0.1Vpp
–30 dBc 5MHz ~ 25MHz, Ampl > 0.1Vpp
Square wave
Characteristics
Rise/Fall Time
25ns at maximum output (into 50Ωload)
Overshoot < 5%
Asymmetry 1% of period+1 ns
Variable Duty Cycle
1.0% to 99.0%   100kHz
20.0% to 80.0%
 5 MHz
40.0% to 60.0%
10MHz                                                                                                  50%            25MHz
Ramp Characteristics Linearity
 0.1% of peak output
Variable Symmetry 0% to 100%(0.1% Resolution)
AM Modulation
  Carrier Waveforms
Sine, Square, Triangle
Modulating Waveforms
Sine, Square, Triangle
Modulating Frequency
2 mHz to 20 kHz (Int)
DC to 20KHz (Ext)
Depth
0% to 120.0%
Source
Internal / External
FM Modulation
  Carrier Waveforms
Sine, Square, Triangle
Modulating Waveforms
Sine, Square, Triangle
Modulating Frequency
2 mHz to 20 kHz (Int)
DC to 20KHz (Ext)
Deviation
DC to Max Frequency
Source
Internal / External
SWEEP
  Waveforms
Sine, Square, Triangle
Type
Linear or Logarithmic
Start F / Stop F
0.1Hz to Max Frequency
Sweep Time
1 ms to 500 s
Source
Internal / External
FSK
  Carrier Waveforms
Sine, Square, Triangle
Modulating Waveforms
50% duty cycle square
Modulation Rate
2mHz to 100kHz(INT)
DC to 100kHz(Ext)
Frequency Range
0.1Hz to Max Frequency
Source
Internal / External
Frequency Counter
  Range
5Hz to 150MHz
Accuracy
Time Base accuracy±1count
Time base
±20ppm (23℃ ± 5℃) after 30 minutes warm up
Resolution
100nHz for 1Hz,
0.1Hz for 100MHz.
Input Impedance
1kΩ/1pf
Sensitivity
35mVrms ~ 30Vms (5Hz to 150MHz)
System Characteristics
  Store/Recall
10 Groups of Setting Memories
Interface
USB(Device)
Display
LCD
General Specifications
  Power Source
AC100240V ,  5060Hz
Power Consumption
25 VA
Operating Environment
Temperature to satisfy the specification :  18 ~ 28C
 Operating temperature :  0 ~ 40
C
Relative Humidity:  80%, 0 ~ 40°C
 70%, 35 ~ 40°C
Installation category CAT
Operating Altitude
2000 meters
Storage Temperature
-10 ~ 70C, Humidity: 70%
Dimensions (WxHxD)
266(W)×107(H)×293(D) mm
Weight
Approx. 2.5 kg
Accessories CD (user manual + software) ×1 , Quick Start Guide x1, Power cord×1
GTL-101× 1
GTL-101× 2
