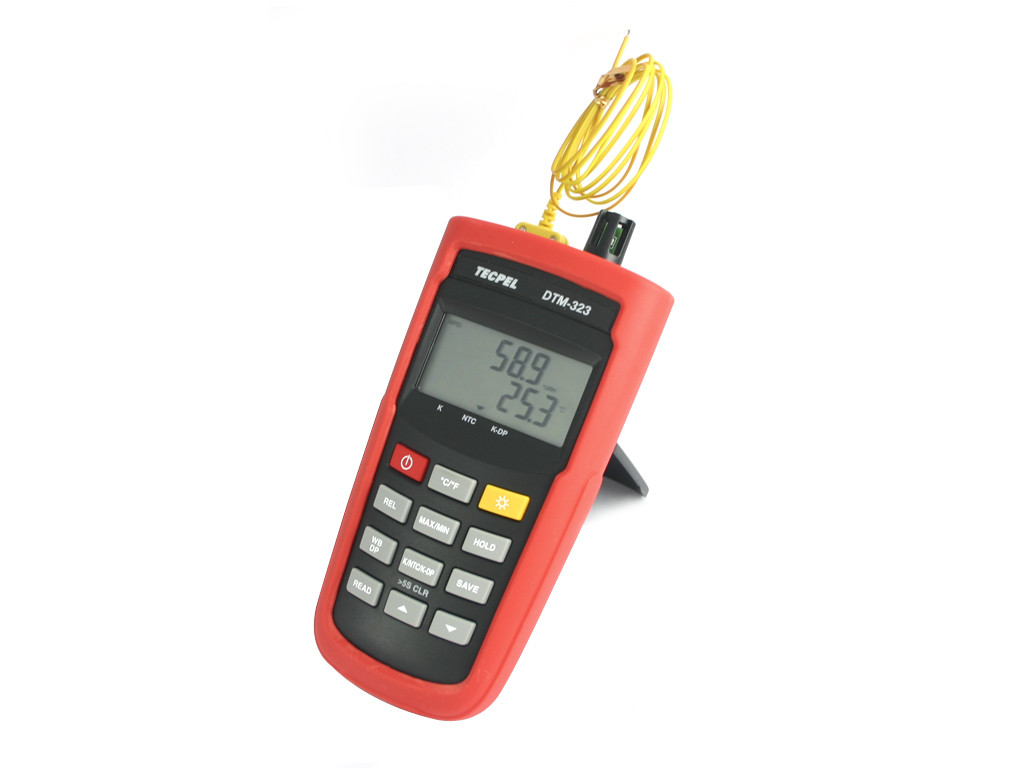

Digital Hygro Thermometer(DTM-323) Product ID: DTM-323
Digital Hygro Thermometer
Highly stable humidity measurement +/-2.5%
Processing & RH and temperature simultaneously
Two temperature sensors (NTC and K-Type) & Humidity sensor together
Wet/Dry bulb, dew point and %RH
Easy switching between K/NTC/K-DP
Auto power off function
- Speification of DTM-323:
- Display: 5 digit liquid crystal display (LCD) with a maximum
- reading of 888.8
- Polarity: Automatic, positive implied, negative polarity
- Low battery indication: The “ ” is displayed when the battery
- voltage drops below the operating level.
- Operating environment: 0°C to 50°C atStorage environment: -20°C to 60°C, 0 to 70% R.H. with
- battery removed from meter.
- Accuracy: Stated accuracy at 23°C±5°C,Battery: 1.5Vx4pcs AAA size.
- Dimensions: 160mm(H) x 83mm(W) x 38mm(D).
- Weight: approx. 265g including batteries.
- Temperature Range
- Range: -50°C to 1000°C, -50°F to 1832°F
- ±(0.1% rdg+1°C) on 50°C to 1000°C
- ±(0.1% rdg+2°F) on -50°F to 1832°F
- Sensor: Thermistor temperature sensor
- Range: 0°C to 60°C, 32°F to 140°F
- Resolution: 0.1°C/°F
- ±2°C on 0°C to 10°C, ±0.5°C on 10°C to 45°C
- ±2°C on 45°C to 60°C
- ±4°F on 32°F to 50°F, ±1°F on 50°F to 113°F
- ±4°F on 113°F to 140°F
- Relative Humidity
- Sensor: Capacitive humidity sensor
- Range: 0% to 100% RH
- ±2.5% at 25°C(77°F), 10% to 90% RH
- ±5% at 25°C(77°F), 0% to 10% RH, 90% to 100% RH
- Sensor Response Time for 90% of Total Range:
- 60 sec typical.
