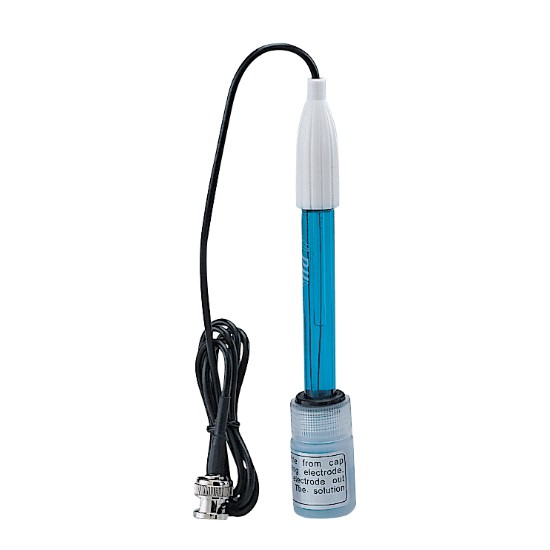

PE-148 PE-148N PE-149G ORP-148G pH Electrode ORP Electrode Product ID: PE-148 PE-148N PE-149G ORP-148G

A wide variety of Tecpel pH electrodes in the result of continuing Research and Development in this technology.

The pH sensitive glass membrance of electrodes has extremely low alkaline error and low electrical resistance thus ensuring fas and accurate response. We can supply these electrodes for pH range of 0 14 and for temprature range of 0~ 70°C and 0~ 100 °C.

Electrode are available in Gel, KCl filled versions and are supplied with 1 meter long cable and BNC plug. Longer cable lengths can be supplied at an extra cost. These electrodes can be supplied with almost all makes of int'l and domestic pH meters.

We follow well defined strict quality control measures and each and every electrode is checked individually for its performance and quality by our Q.C. Department.

Certificate:
  • PE-148
    • Range: 0 ~ 14 pH
    • Temperature: 0 ~ 80 C
    • Type Ref.: Ag/Agcl
    • Junction: Ceramic
    • Refillable: Yes
    • Body : PC
    • Connector: Regular BNC
    • Body Size: 160 mm
    • Cable Length: 1 M
  • PE-148N
    • Range: 0 ~ 14 pH
    • Temperature: 0 ~ 80 C
    • Type Ref.: Ag/Agcl
    • Junction: Ceramic
    • Refillable: No.
    • Body : PC (Gel filled type)
    • Connector: Regular BNC
    • Body Size: 160 mm
    • Cable Length: 1 M
  • PE-149G
    • Range: 0 ~ 14 pH
    • Temperature: 0 ~ 80 C
    • Type Ref.: Ag/Agcl
    • Junction: Ceramic
    • Refillable: Yes
    • Body : Glass
    • Connector: Regular BNC
    • Body Size: 160 mm
    • Cable Length: 1 M
  • ORP-148G
    • Range: +/- 1500mV
    • Temperature: 0 ~ 80 C
    • Type Ref.: Ag/Agcl
    • Junction: Ceramic
    • Refillable: Yes
    • Body : Glass
    • Connector: Regular BNC
    • Body Size: 160 mm
    • Cable Length: 1 M
  • Q & A :
    • Are ORP and PH probes that Tecpel supply us (with the BNC connectors) suitable
    • for continuous submersion in a Salt water marine fish tank, With periodic
    • cleaning of course.
    • Ans: We have some dealers and OEM’s who are selling in that market & hence I think they can absolutely be used.
Model Range Temperature Body Refillable
PE-148 0 ~ 14 pH 0 ~ 80 °C PC Yes
PE-148N 0 ~ 14 pH 0 ~ 80 °C PC No
PE-149G 0 ~ 14 pH 0 ~ 80 °C Glass Yes
ORP-148G ± 1500 mV 0 ~ 80 °C Glass Yes
