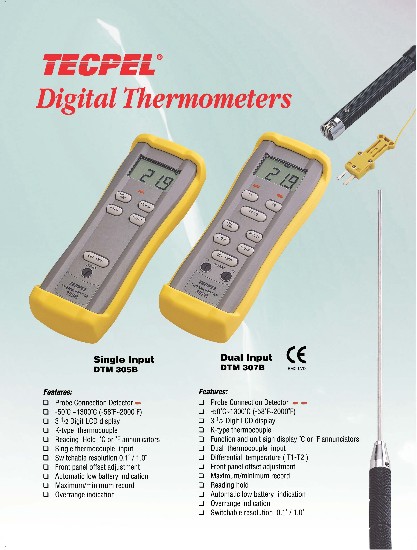

DTM-305B, DTM-307B Industrial Thermometer single/ Dual inputs type K themocouples Product ID: DTM-305B, DTM-307B

This Digital industrial thermometer is especially designed and manufactured for industries. Customers may need a measuring device which can provide accurate measurement. In this case, our product is definitely your best choice to fulfill all your needs and expectations! Furthermore, if you want a durable temperature meter which can measure a wide range of temperature, the Digital Industrial Thermometer is a good choice as well. It's not only accurate, but also protable and convenience for precise measurement.



Having been devoted to this industry for over 20 years, TECPEL is a rapidly growing company and considered as one of leading Taiwanese manufactures of high quality test and measurement devices. For more information in details about our industrial thermometer, please feel free to send your inquiry to us anytime. We will contact you once we receieve your inquiry. Presending you our best device is our pleasure.

Certificate:CE
Specifications :  CE Approved
Thermometer DTM-305B


Measurement Range:
-50°C to 1300°C (-58 °F to 2000 °F)

Accuracy:

-50 °Cto 1000 °C:
±(0.3%rdg+1 °C)

1000°C  to 1300°C :
±(0.5%rdg+1 °C)

-58 °F to 2000 °F
±(0.3%rdg+2 °F)

Temperature Scale:
Celsius of Fahrenheit user-selectable

Resolution:
1 °C or 1 °F (or 0.1 °C of  0.1 °F)

Sensor:
K­-type Thermocouple

Sampling rate:
3 times/per second

General
Power Requirement:
1 piece 9V battery

Dimensions:
5.8"x2.8"x1.5" (147x70x39mm)

Weight:
13.8 oz(395g)

Accessories:
TPK-01x1, holster, and owner's manual.




  • DTM-305B:
    • -50°C ~ 1,300°C (-58°F ~ 2,000°F).
    • Probe Connection Detector.
    • 3 1/2 Digit LCD display.
    • K-type thermocouple.
    • Reading Hold °C of °F annunicators.
    • Single thermocouple input.
    • Switchable resolution 0.1°/1.0°
    • Front panel offset adjustment.
    • Automatic low battery indication.
    • Maximum record.
    • Overrange indication.

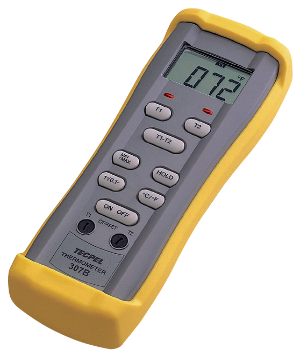

  • DTM-307B Industrial Thermometer:
    • -50°C ~ 1,300°C (-58°F ~ 2,000°F).
    • Dual input + 0.1 ° C resolution.
    • Probe Connection Detector
    • 3 1/2 Digit LCD display.
    • K-type thermocouple.
    • Function & unit sign display °C of °F annunciators.
    • Dual thermocouple input.
    • Differential temperature of the product (T1-T2).
    • Front panel offset adjustment.
    • Maximum record.
    • Reading hold.
    • Automatic low battery indication
    • Overrange indication.
    • With 0.1°C resolution.
  • Specifications:
    • 1. Accuracy:
      • +/-( 0.3% reading + 1 ° C) - 50 deg C to 1000 ° C.
      • +/-(0.5% reading + 1 ° C) 1000 ° C to 1300 ° C.
      • +/- (0.3% reading + 2 ° F) -58 ° F to 2000 F.
    • 2. Resolution:
      • 1 ° C or 1 ° F; 0.1 ° F or 0.1 ° F(below 200 ° C or ° F)
Industrial Thermometer:
  • -50°C ~ 1,300°C (-58°F ~ 2,000°F).
  • Dual input + 0.1 ° C resolution.  DTM-307B;
  • Single input  + 0.1 ° C resolution. DTM-305B
  • Probe Connection Detector (Red LED Alert)
  • 3 1/2 Digit LCD display.
  • K-type thermocouple x 2 pcs (DTM-307B);   X 1 pc (DTM-305B)
  • Function & unit sign display °C of °F annunciators.
  • Dual thermocouple input (DTM-307B)
  • Differential temperature of the product (T1-T2) for DTM-307B
  • Front panel offset adjustment.
  • Maximum record.
  • Reading hold.
  • Automatic low battery indication
  • Overrange indication.
  • With 0.1°C resolution.



Q & A:

We are currently using your 305B thermometer, and I see the 'OL.'mark appears when I turn it on. This mark never disappears and I cannot use this device. What does this sign mean? and what should I do in order to eliminate this?



Answer:
This could happen
1. The sensor got damaged.
You’d better try to change another new sensor to check if it works well.

2. If you measure temperature over 200 deg C,
the meter will show “OL” to let you know you should change
the resolution from “ O.1 “ to “ 1 “.

3.  Before the battery is consumed up, the meter will shall "OL"" too.
4. Finally, the worst possibility is that the meter gets damaged and should be returned back to our distributor for after-sales service.



Q & A:
We are facing a thermometer with a 0L display.
the terminal connection is correct.
I am using this model to measure 245degree temperature.
Is it due to over the limit of reading?
But I am sure that this thermometer can read more than this. Am I right?

Answer: You are right.
Please refer to the manual and you should switch its display decimal from o.1 to 1.0 because It is only 3 1/2 digits.


Q& A:
I would like to ask what is the problem when our thermometer is showing
negative reading instead of positive reading when we are checking a high
temperature solution.
Is there any way to troubleshoot this?

Answer:
You probably use a flawed thermocouple probe
and insert the thermocouple 2 pin reversed.
The narrow pin is positive, broad one is negative.
Please check.
