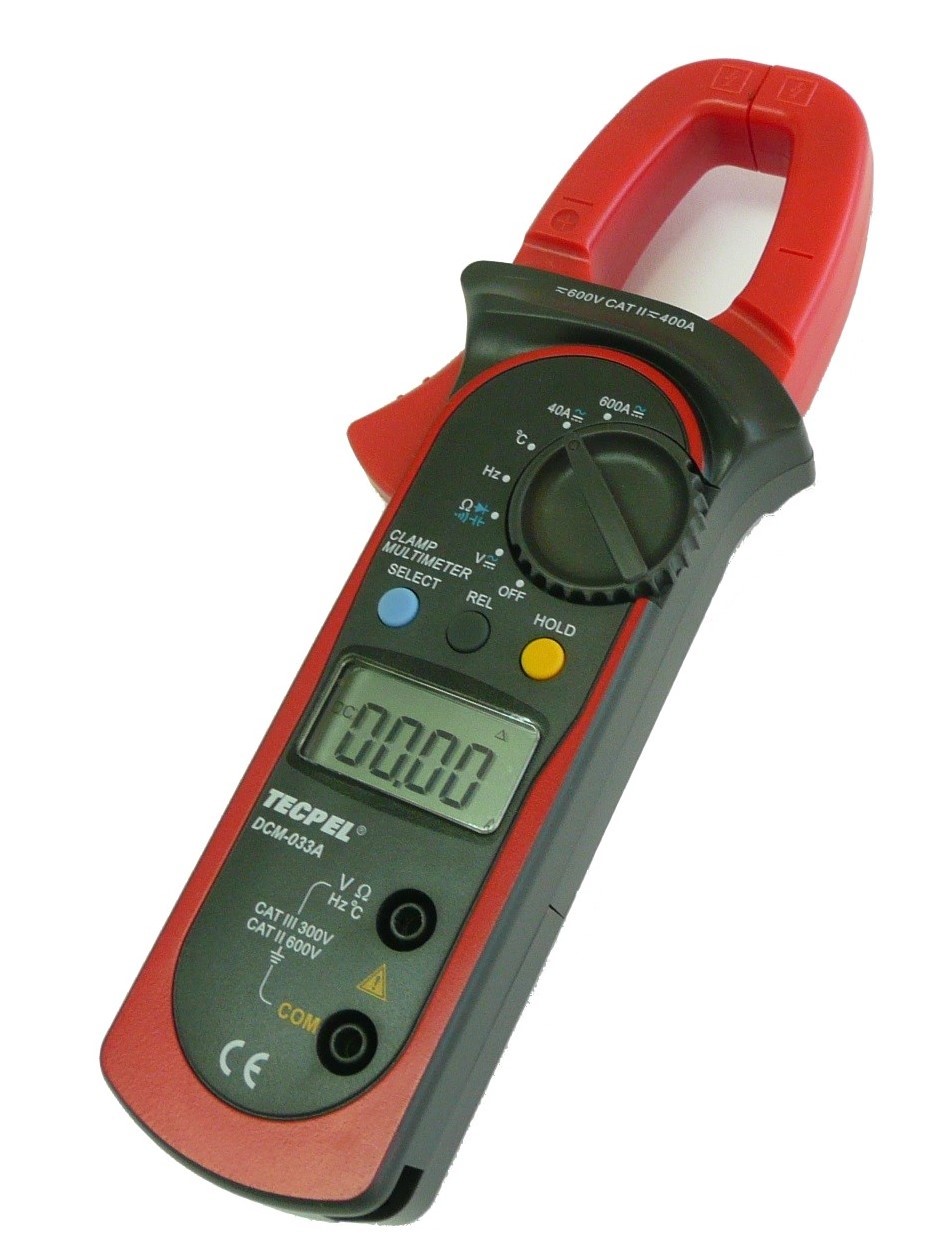

DCM-033A 3999 Count Clamp Meter + AC Frequency Measure Product ID: DCM-033A

Digital clamp meter Model DCM-033A
Features:
DC Voltage 400mV~ 600V (0.8%+1)
AC Voltage 4V ~ 600V (1%+5)
DC Current 40A/400A (2%+3)
AC Current 40A/400A (2.5%+5)
Resistance 400 ~40M Ohm (1%+2)

Temperature measurement:
-40~0'C±(8%+5), 0~400'C±(2.5%+3), 400~1000'C±(3.0%+3)

Frequency
Duty Cycle
Special Functions
Auto Ranging
Diode
Continuity Buzzer
Data Hold
Full Icon Display
Sleep Mode
Low Battery Display
Input Impedance for
DC Voltage Measurement
Around 10M Ohm
Max. Display 3999

Certificate:CE

<iframe width="560" height="315" src="https://www.youtube.com/embed/mTIO87hY2ps" title="YouTube video player" frameborder="0" allow="accelerometer; autoplay; clipboard-write; encrypted-media; gyroscope; picture-in-picture" allowfullscreen></iframe>


  • GENERAL CHARACTERISTICS
    • Power 9V Battery (6F22)
    • LCD Size 35.6 x 18 mm
    • Product Colour Red and Grey
    • Product Net Weight 200g
    • Product Size 210 x 75.6 x 30mm
    • Standard Accessories Test Lead, English Manual, Carrying Bag
    • Standard Individual Packing Gift Box
    • Standard Quantity Per Carton 40 pcs
    • Standard Carton Measurement 510 x 490 x 330mm
    • (0.082 CBM Per Standard Carton)
    • Standard Carton Gross Weight 15kg
  • Q & A:
    • What is the lowest reading the meter will read on AC/DC Amps? Will it read from 0A to 40A, and will it read mA ?
    • Yes, you can have a high resolution 10 mA on 40A range. For example, you can get 1.00 A, while you use 40A range measurement.
Model: Tecpel DCM-033A
- Color: Grey + Red
- 1.5"" LCD display
- AC Voltage Range:
   4V / 40V / 400V ±(1%+5), 600V ±(1.2%+5)

- DC Voltage Range
 : 400mV ±(0.8%+3), 4V / 40V / 400V ±(0.8%+1), 600V ±(1.0%+3)

- AC Current Range: 40A ± (2.5%+8), 600A ± (2.5%+5)
- DC Current Range: 40A / 600A ±(2.0%+5)
- Resistance Measurement:
  400ohm ±(1.2%+2), 4Kohm / 40Kohm / 400Kohm ±(1.0%+2), 4Mohm ±(1.2%+2),   40Mohm ±(1.5%+2)


- Capacitance Measurement
  4nF / 40nF / 400nF / 4uF / 40uF ±(4.0%+3), 100uF ±(5.0%+10)

- Frequency Measurment
  10Hz ~ 1MHz ±(0.5%+3), 10MHz ±(0.5%+3)

- Temperature Ramge : -40~0'C±(8%+5), 0~400'C±(2.5%+3), 400~1000'C±(3.0%+3)
- Input  Impedance: About 10Mohm
- Max. clamp size: 28mm
- Powered source by 1 x 9V 6F22 battery (included)

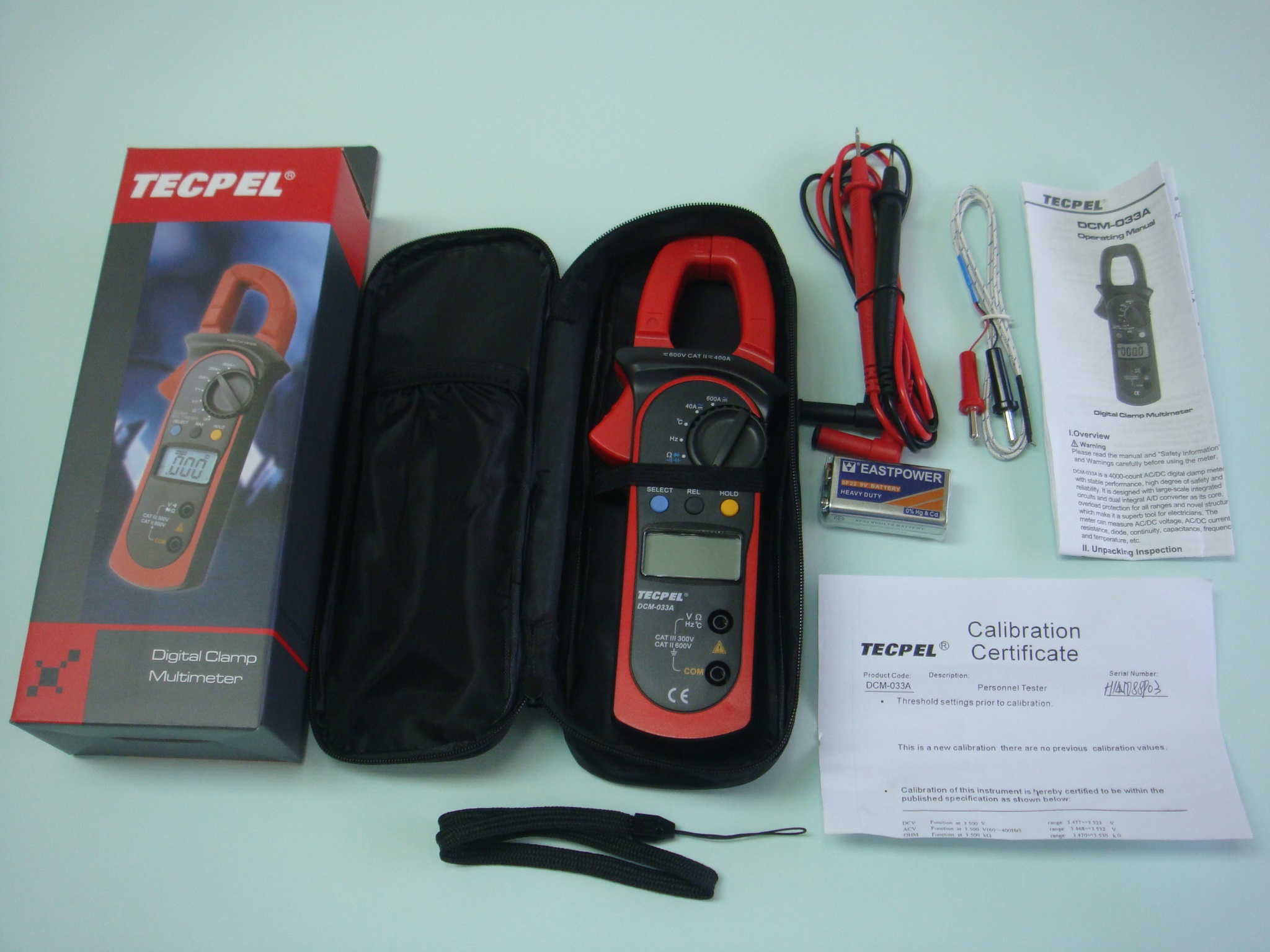

- Accessories:
- 2 x Testing leads (91cm cable)
- 1 x Temperature probe (95cm cable)
- 1 x Carrying bag
- 1 x Carrying strap
- 1 x English user manual
- 1 x Certificate of Calibration - Tecpel
