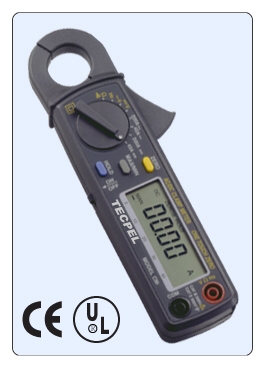

DCM-039 AC/DC 200A Current Clamp Meter Product ID: DCM-039

Accurate DC/AC digital clamp meter for current measurement.
10mA high resolution on 40A DC/AC range.
One touch zero for DCA adjustment.
23 mm diameter jaw.
Large 3 3/4 digits LCD
Fast bargraph display (20 times/sec.) for transient observation.
Continuity and frequency measurements.
Max/Min and Data Hold functions.
600V overload protection for ohm measurement.
Easy single rotary switch for any function selection.
Ideal for works in crowded switch box or cable areas.

Certificate:UL, CE
  • Specifications (23 +/- 5 deg C)
    • DCA 0-40A 10mA +/- 1.0% +/- 2dgts
    • DCA 0-150A 100mA +/- 1.0% +/-2 dgts
    • DCA 150-200A 100mA -2.2% +/- 2dgts
    • ACA 0-40A 10mA +/- 1.0% +/- 3 dgts
    • ACA 0-150A 100mA +/- 1.0% +/- 3 dgts
    • ACA 150-200A 100mA -2.2% +/- 3dgts
    • DCV 0-400V 0.1 V +/- 1.0% +/- 2dgts
    • ACV 0-400V 0.1 V +/- 1.0% +/- 2 dgts
    • 0 Ohm-400 Ohm 0.1 Ohm +/- 1.0% +/-2dgts beep if < 40 Ohm (Approx.)
    • Hz 0-1000KHz 0.1-100 +/- 0.5% +/- 2dgts 1V sensitivity Auto Range
  • General Specification
    • General Specification
    • Conductor Size: 23mm max. (approx.)
    • Battery Type: two 1.5V SUM-3
    • Display: 3 3/4 LCD with 40 seg. bargraph
    • Range Selection: manual
    • Overload Indication: left most digit blinks
    • Power Consumption: 10 mA (approx.)
    • Low battery Indication:
    • Sampling Time: 2 times/sec. (display)
    • 20 times/sec. (bargraph)
    • Operating Temperature: -10 deg C to 50 deg C
    • Operating Humidity: less than 85% relative
    • Altitude : up to 2000M
    • Storage Temperature: -20 to 60 deg C.
    • Storage Humidity: less than 75% relative
    • Dimension: 183mm (L) x 63.6mm (W) x 35.6mm (H)
    • 7.2"" (L) x 2.5"" (W) x 1.4"" (H)
    • Weight: 190g (battery included)
    • Accessories: Carrying bag x 1
    • Users manual x 1
    • 1.5V battery x 2
