8吋圖表記錄器
Brand
DICKSON
|
Model
KT8-50
|
🇺🇸 USA
Key features of the Dickson 8-inch chart recorder include:
- Large chart size with selectable recording time ranges
- Compatible with interchangeable sensors for easy calibration
- Built-in LCD display with audio-visual alarm system
- Reliable performance suitable for diverse application environments
Out of Stock
Views: 50
Description

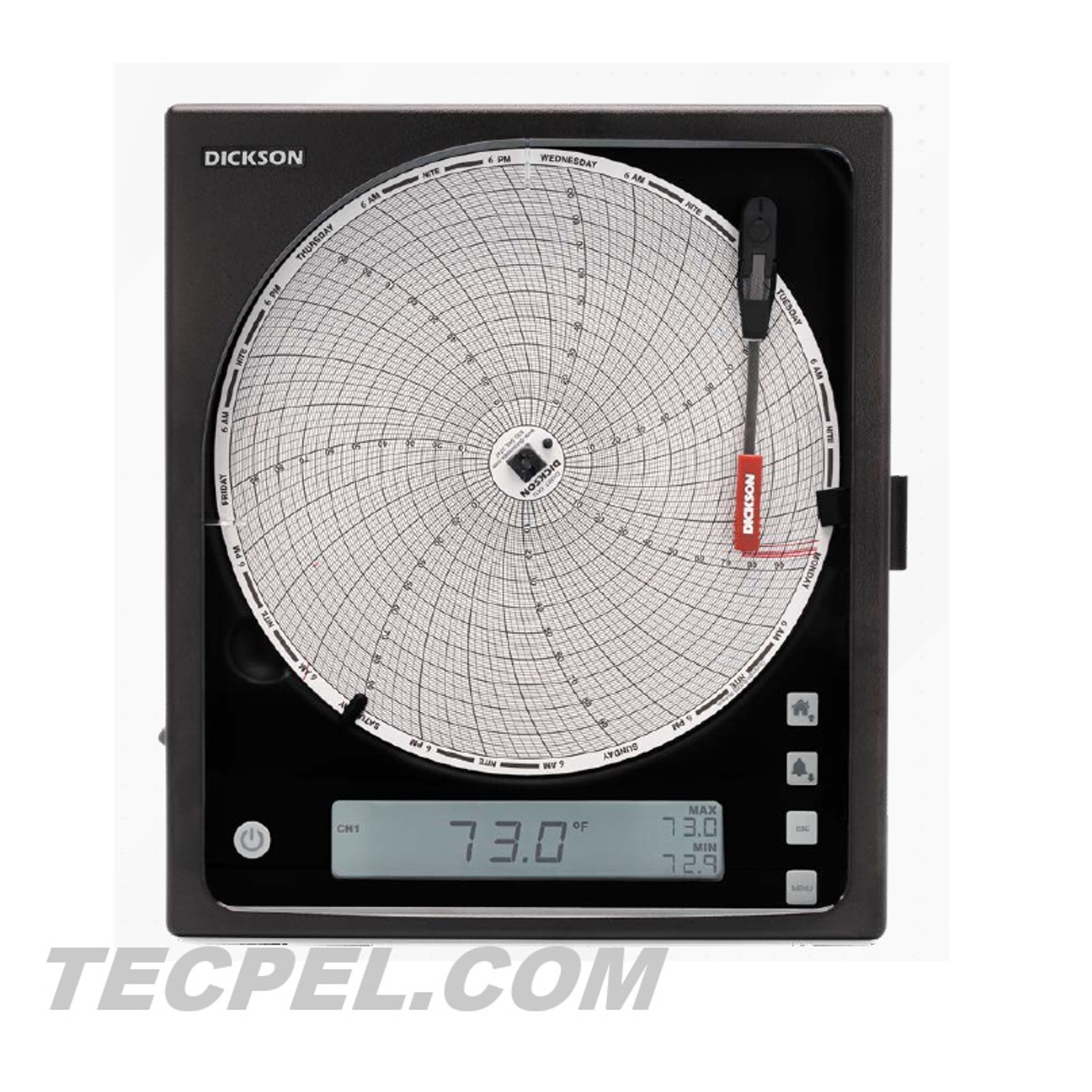

The Dickson KT8-50 8-inch temperature chart recorder features a large LCD display and interchangeable sensor technology, providing high resolution and convenient calibration options for various environmental monitoring needs. With built-in audio-visual alarms, it ensures users can stay updated on environmental changes and enhances operational safety.
Specifications
- Sensor Type可更換感應器 (RS050)
- Operating Temperature-22°F 至 122°F (±1.2°F) / -30°C 至 50°C (±1°C)
- Humidity0-95% RH 非凝結
- Resolution0.1°F / 0.1°C
- Battery Life平均1個月 (使用4顆C型電池)
- Calibration OptionsN100, N300, N400
- ChannelsCH1: 溫度
- RPM Range24小時、7天
- Dimensions9 3/8”x 2 3/4”x 10 1/8”
- Display5 1/8” x 1”
- Body Material耐用黑色ABS外殼,聚碳酸酯門,鋁製撥盤
- Waterproof RatingIP20
- Accessories6英尺
- Power Supply120到240VAC, 12VDC (國際配件可用); AC適配器
- Weight2.45磅 (不含電池)
- Warranty12個月有限保固
Features
- DisplayLCD
- Alarm Function音/視覺
- Installation Options自由站立或壁掛(帶鑰匙孔)
- Power Status IndicatorLED指示燈
Attributes
- Operating TemperatureOperating temp 0-50°C, Humidity 0-95% RH non-condensing
- Storage TemperatureTemp -20 to 60°C, Humidity below 80% RH non-condensing
- Power Supply4 C batteries, 120 to 240 VAC, 12 VDC
