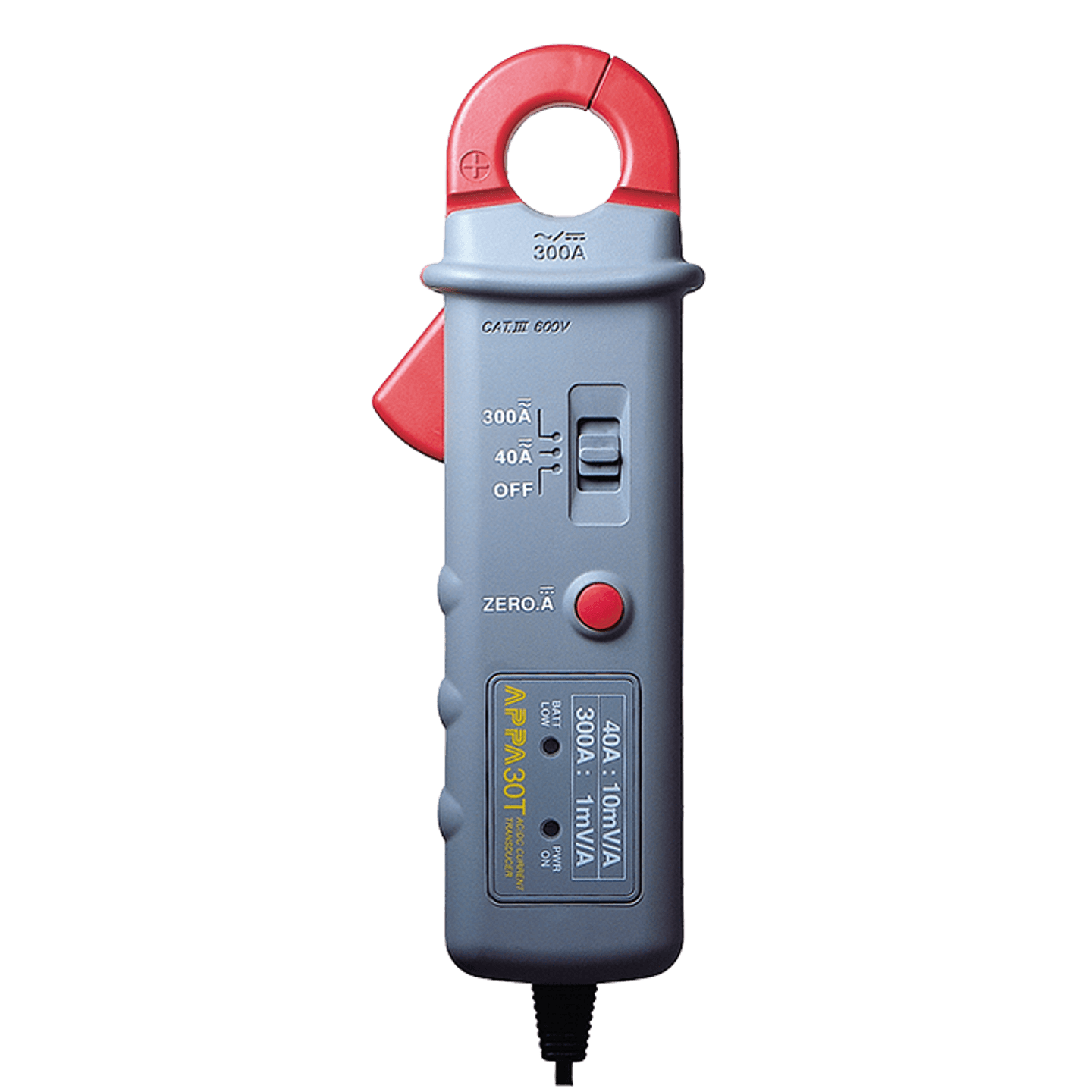

300A current Clamp probe Transmitter
Brand
APPA
|
Model
APPA 30T
|
🇹🇼 Taiwan
The APPA 30T is a current measurement instrument with the capability to measure both AC and DC currents in the range of 40A and 300A.
It can test AC frequencies from 40 to 400Hz, The measurement output is 40A: 10mV/A or 300A: 1mV/A.
Price
NT$ 3,150
Out of Stock
Views: 2
Description
The APPA 30T is a current measurement instrument with the capability to measure both AC and DC currents in the range of 40A and 300A. It can test AC frequencies from 40 to 400Hz.
Utilizing Hall effect sensing components, it operates within a temperature range of 0 to 50°C and runs on a 9V battery with a lifespan of up to 66 hours. The product also features a red LED for low-battery indication and boasts a high safety rating of CAT III 600V.
It is a versatile clamp meter with robust safety features.
Specifications
- Type of SensingHall effect sensing
- Measuring RangeAC&DC 40A / 300A
- Jaw Opening22 mm
- Load Impedance< 10kΩ
- Accuracy±1% rdg
- Sound Frequency40 ~ 400 Hz
Features
- Safety RatingRed LED
Attributes
- Operating Temperature0 to 50°C / ≤80%RH Without dew
- Storage Temperature-20 to 60°C
- Temperature Coefficient0.2 x (Spec. Acc) / °C, <18°C or >28°C
- Elevation LimitationLower than 1,000 meters
- Power Supply9v Battery x 1
- Safety RatingIEC 1010-1，IEC 1010-2-032，UL，CE
- Dimensions178 x 70 x 33 mm
- AccessoryBattery、 Manual
