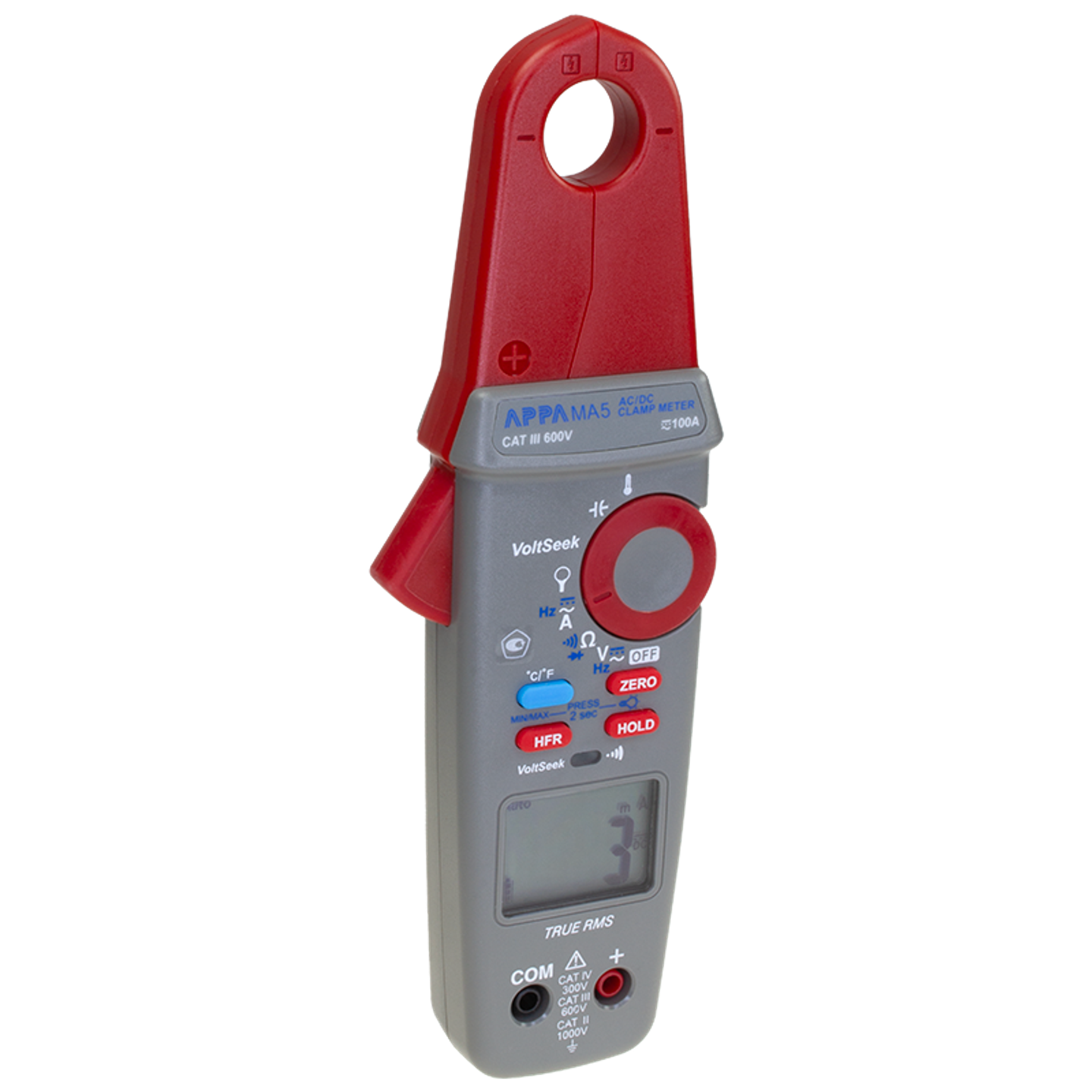

Digital 6000 Counts AC/DC Clamp Meter
Brand
APPA
|
Model
APPA_MA5
|
🇹🇼 Taiwan
• 6000 counts digital display
• Large white LED backlight for easy reading
• Automatic range function for improved measurement efficiency
• High resolution: 1mA and DC 0.1mV
• VoltSeek™ non-contact voltage detection for added safety
• Multiple testing functions suitable for various electrical applications
Price
NT$ 6,510
Out of Stock
Views: 48
Description
The APPA MA5 is a highly efficient and accurate 6000 counts AC/DC clamp meter designed for portability and functionality. Featuring a large white LED backlit display, it allows for easy reading of data in any lighting condition. Its automatic range and high resolution (1mA and DC 0.1mV) ensure high accuracy in every measurement. Additionally, the built-in VoltSeek™ non-contact voltage detection function enhances convenience and safety, making it suitable for various electrical testing needs.
Specifications
- Display Counts6,000 位數
- Jaw OpeningØ21 mm
- AC Current6000m / 60.00 A ±(1.8% + 5D) / 100.0 A ±(3.5% + 5D) @40 ~ 400 Hz
- DC Current6000m / 60.00 A ±(1.8% + 5D) / 100.0 A ±(3.5% + 5D)
- DC Voltage600.0m ±(0.7% + 5D) / 6.000 / 60.00 / 600.0 V ±(0.7% + 2D)
- AC Voltage6.000 / 60.00 / 600.0 V ±(1.0% + 5D)
- Resistance600 Ω ±(1.0% + 5D) / 6k/ 60k/ 600k/ 6M Ω ±(1.0% + 2D) / 40M Ω ±(0.8%+2)
- Capacitance1000n/ 10.00μ / 100.0μ / 1.00m / 10.00m F ±(2.9% + 5D)
- Measuring Range-40.0 ~ 400.0 °C ±(1% + 20D) / -40.0 ~ 752.0 °F ±(1% + 36D)
- Frequency1000.0 / 10.000k / 50.00k Hz 0.3% + 5D
- 非接觸驗電80V ~ 1,000V
Features
- Diode Test1.500 V
- Continuity小於20Ω
- Low Battery Indicator低於2.6V
- HFR (高頻抑制)截止頻率 (-3dB):800Hz
- Input Impedance10MΩ
- Waterproof RatingIP40
- 衝撞防護MIL-PRF-28800F / class 2 設備
Attributes
- Operating Temperature10 to 50°C / lower than 80 %RH without dew。
- Storage Temperature-20 to 60°C / lower than 80 %RH without dew。
- Altitude LimitLower than 2,000 meters
- Power SupplyAAA size 1.5 x2
- Battery Life150 hours Alkaline battery
- Dimensions60 x 220 x33 mm
- Weight260g
- AccessoriesTest Lead、 Temperature measuring probe、 Battery 、 Carrying Bag、Manual
