Process multimeter Calibrator
Brand
APPA
|
Model
APPA-507
|
🇹🇼 Taiwan

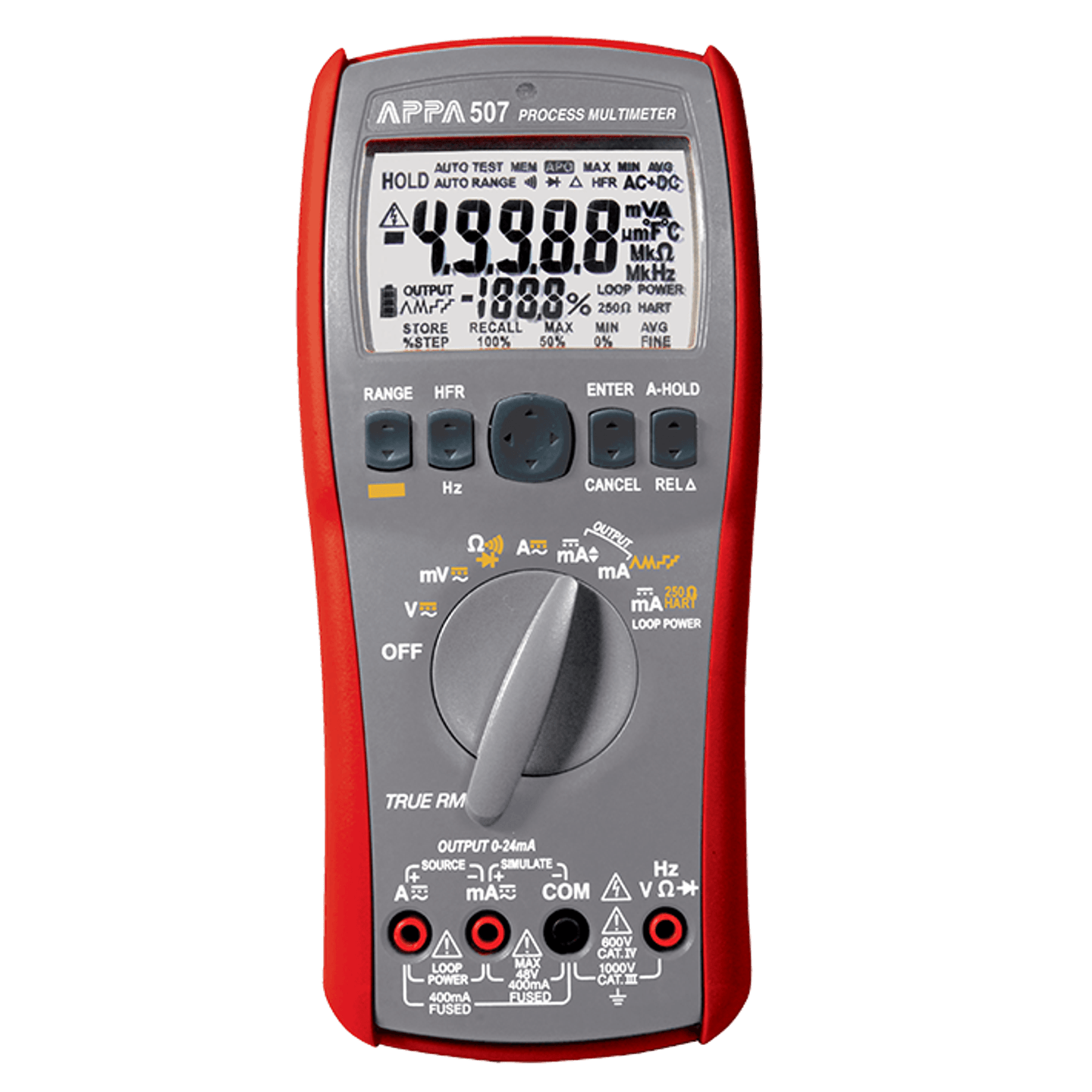

Appa 507
The APPA 507 is a portable digital process calibrator with a multimeter function for generating and measuring direct current up to 24 mA. For the direct power generation, it is also possible that the percentage values, depending on the set current (0% = 4 mA, 100%=20mA). The APPA 507 also enables the measurement of the current, which is generated by an external converter to measure or a current converter to simulate. The APPA 507 corresponds to the safety standard IEC/EN 61010-1 with double insulation and overvoltage category CAT III lOOOV I CAT IV 600 V. Each function can be comfortably directly by the function buttons on the control panel selected. The APPA 507 is the ideal solution for the most common industrial applications and their use in laboratory areas.
Highlights & Details
CAT III 1000 V, CAT IV 600 V
Features
Dual Display, car AC, DC and AC + DC voltage-mode
It can be extended with an external voltage source.
Optically isolated USB interface, including software
Auto Backlight
4-20mA DC power source and reference encoder function (HART communication compatible)
Price
NT$ 13,000
Out of Stock
Views: 1
Description
The APPA 507 Process Calibrator is a high-efficiency process multimeter with the following features:
The 50,000-count extra-large digital display provides clear and easy-to-read measurement results.
Automatic backlight for use in dark environments.
A dual display can display two kinds of measurement values.
The onscreen menu selection allows for easy calibration settings.
Manual stepping (100%, 25%, coarse, fine), autostepping, and auto-ramp provide flexible correction control.
HART mode setup with loop power for calibration of HART devices.
The APPA 507 programmable calibrator is suitable for correcting various process measurements, including pressure, flow, temperature, and current. It is ideal for industrial and commercial applications.
Specifications
- DC Voltage50mV~1000V
- AC VoltageACV 50mV~1000V
- DCA50mA~1A
- ACA50mA~1A
- Resistance500Ω~50MΩ
- Diode Test2.000V
- Continuity<30Ω, 2kHz tone buzzer
- Frequency500Hz~100KHz
- Source/Simulate modeDC 0mA to 24mA, 0.05% of span, 32V Output
- Power Supply30V/1,25kΩ
- Loop supply (HART)24V/1kΩ
Features
- Display50,000
- Sampling Rate10 times / sec
- Overload Protection
- Low Battery Indicator✓
- Backlight✓
- Safety RatingCAT IV 600V / CAT III 1000V
- Auto Power Off20 minutes
- Operating Temperature-10°C~50°C, ≤80%RH
- Storage Temperature-20°C~60°C
- Temperature Coefficient0.1 x (Spec. Acc) / °C, <18°C, >28°C
- Battery Life100 hours
- Power RequirementAA Size 1.5V x 4 Batteries (NEDA 15A/IEC LR6)
- DimensionsW x L x D 95 x 207 x 52mm
- Weight630g
- AccessoryIncluded with instrument Test Leads, Alligator Clips, USB Cable, Software, Magnetic Hanging Kit, Alkaline Battery, Protective Holster
Attributes
- Operating Temperature0~50°C / lower than 80%RH without dew。
- Storage Temperature-20~60°C / lower than 90%RH without dew。
- Elevation LimitationLower than 1,000 meters
- Power Supply1.5V AAA x 4
