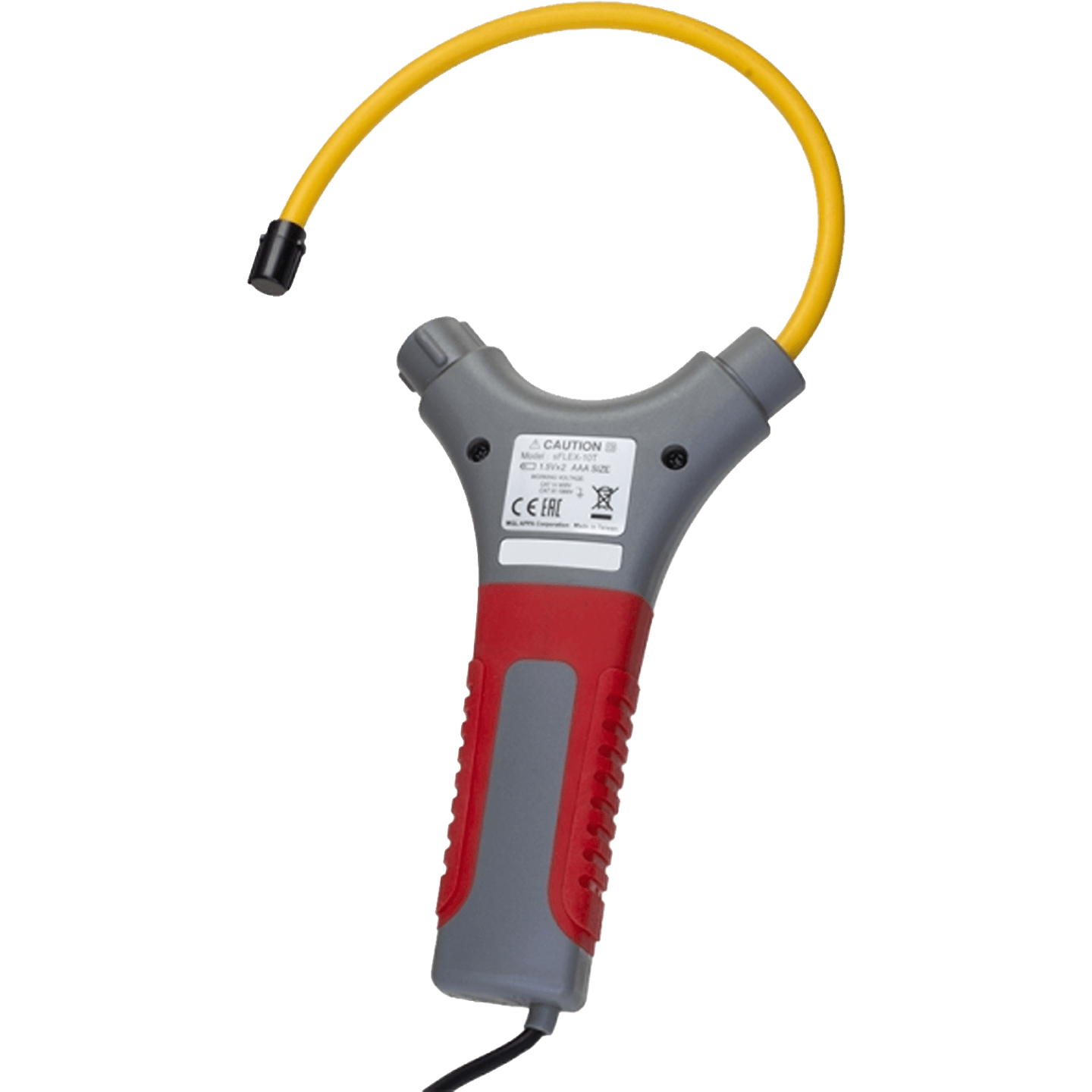

Flexible AC Current Clamp Meter
Brand
APPA
|
Model
sFlex10T
|
🇹🇼 Taiwan
The APPA sFlex 10T is a professional-grade AC current clamp meter with the following features:
- TRUE RMS technology ensures measurement accuracy
- CAT IV 600V safety rating suitable for high-voltage power systems
- 10-inch flexible clamp for easy measurement in tight spaces
- Measurement range: 0.01A to 3000A, meeting various needs
- Low battery LED indication and automatic shutdown for easy operation
- Lightweight design for portability, suitable for industrial applications
Price
NT$ 3,675
Out of Stock
Views: 2
Description
The APPA sFlex 10T is a high-performance AC current clamp meter designed for measuring high currents, with a measurement range from 0.01A to 3000A and TRUE RMS precision measurement capabilities. Its 10-inch flexible clamp and 2-meter extension cord make it easier to measure in tight spaces. Complying with CAT IV 600V safety standards, it ensures reliable operational safety. Additional features include low battery LED indication and automatic shutdown, making it lightweight and portable, ideal for professional electrical measurements.
Specifications
- 交流電流30.00 / 300.0 / 3,000 A (輸出: 100mV/A, 10mV/A, 1mV/A)
- 鉗口開度10
- 頻率45 ~ 500 Hz
- 精確度o.2 x (指定精度) / °C (當小於 18°C 或大於 28°C時)
Features
- 最大電壓輸出4.5Vpeak
- 安全等級EN61010-1, EN61010-2-032, EN61010-031 EN61326-1 CAT IV 600V, CAT III 1000V
- 抗摔保護約 2公尺
Attributes
- Operating Temperature0 to 50 °C / lower than 80%RH no batteries
- Storage Temperature-20 to 60°C / lower than 80%RH no batteries.
- Elevation LimitationLower than 2,000m (6562 ft)
- Shock vibrationSinusoidal vibration MIL-PRF-28800F (5-55 Hz, 3g max.)
- Power SupplyAAA Size Battery x 2
- Battery Life60 hours ALKALINE Battery
- Dimensions120 x 280 x 25 mm
- Weight170g
- AccessoryManual
