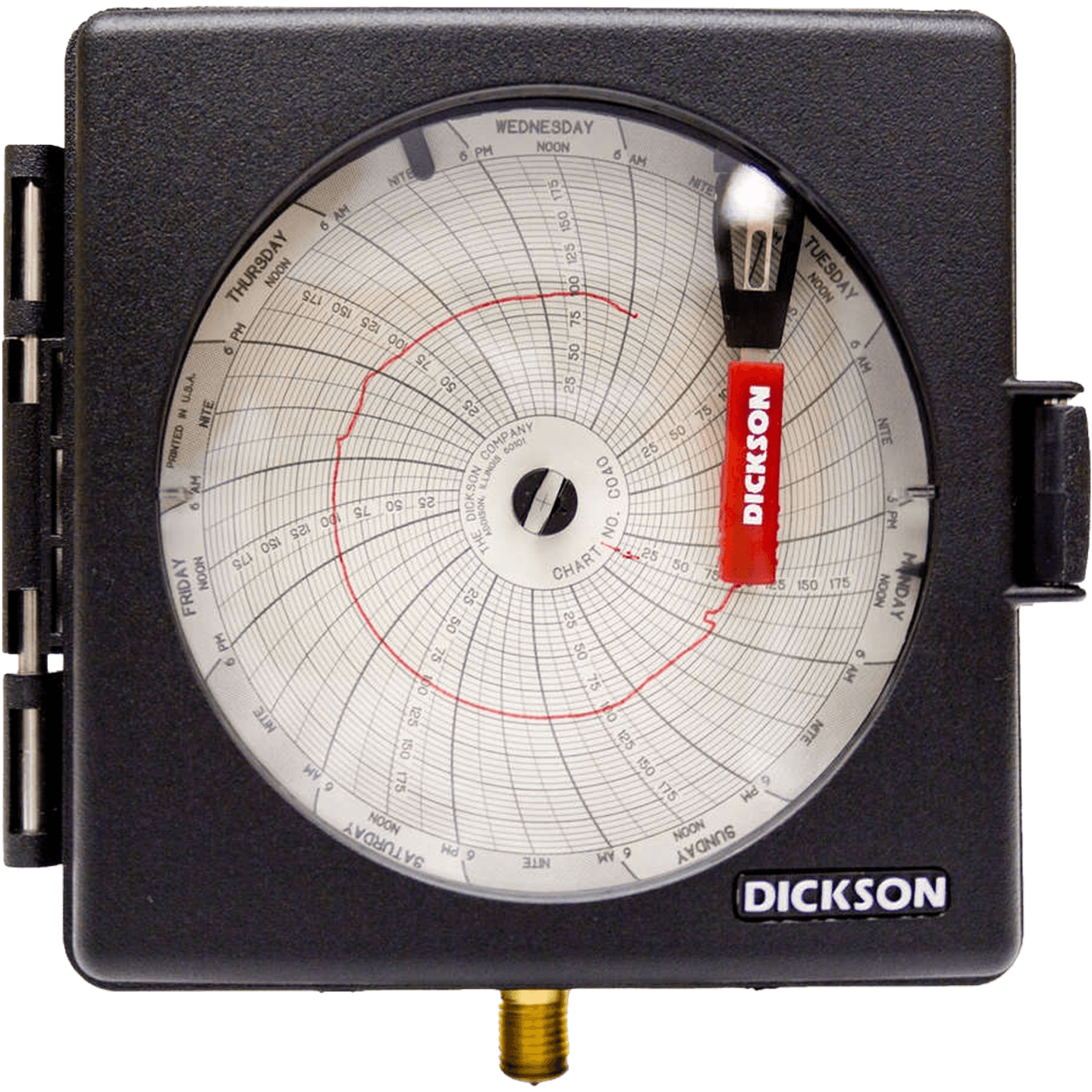

4-inch Pressure Chart Recorder
Brand
DICKSON
|
Model
PW474
|
🇺🇸 USA
Suitable for **water pressure and pneumatic pressure** measurement, with a measurement range of 0–200 PSI. It features a dial-type design for convenient real-time observation of pressure changes and data reading, making it especially suitable for pressure holding tests and long-term monitoring applications.
With high accuracy and high reliability, it can meet various industrial and equipment inspection needs, and features an IP56 water- and dust-resistant rating, making it suitable for a wide range of on-site environments.
Price
NT$ 24,200
Out of Stock
Views: 11
Description
The DICKSON PW474 4-inch circular chart pressure recorder is specifically designed for water and air pressure measurement, with a measurement range of 0 to 200 PSI, making it suitable for various industrial applications.
Its circular chart design is not only aesthetically pleasing but also makes data easy to read, ensuring users can easily perform pressure-holding tests. This device offers high accuracy and reliability, making it ideal for use in laboratory and production environments.
Specifications
- AccuracyNon-geared type (無險式)
- Measurement Range0~200PSI (approx. 14 kgf/cm²)
- Error2% of full scale
- Response TimeAbout 1 second
Features
- Chart SpeedSelectable 7 days/24 hours
- Interface1/4“NPT thread
- Waterproof RatingIP56
Attributes
- Operating Temperature-30~50 °C / below 95%RH non-condensing
- Storage Temperature0~50 °C / below 80%RH non-condensing
- Altitude Limitbelow 1,000 meters
- Power Supply1.5V AA battery x 1
- Battery Lifeapprox. one year (depending on usage conditions)
- Dimensions164 x 152 x 74 mm
- Weight820g
- Accessoriesrecording paper, 1/4NPT adapter
