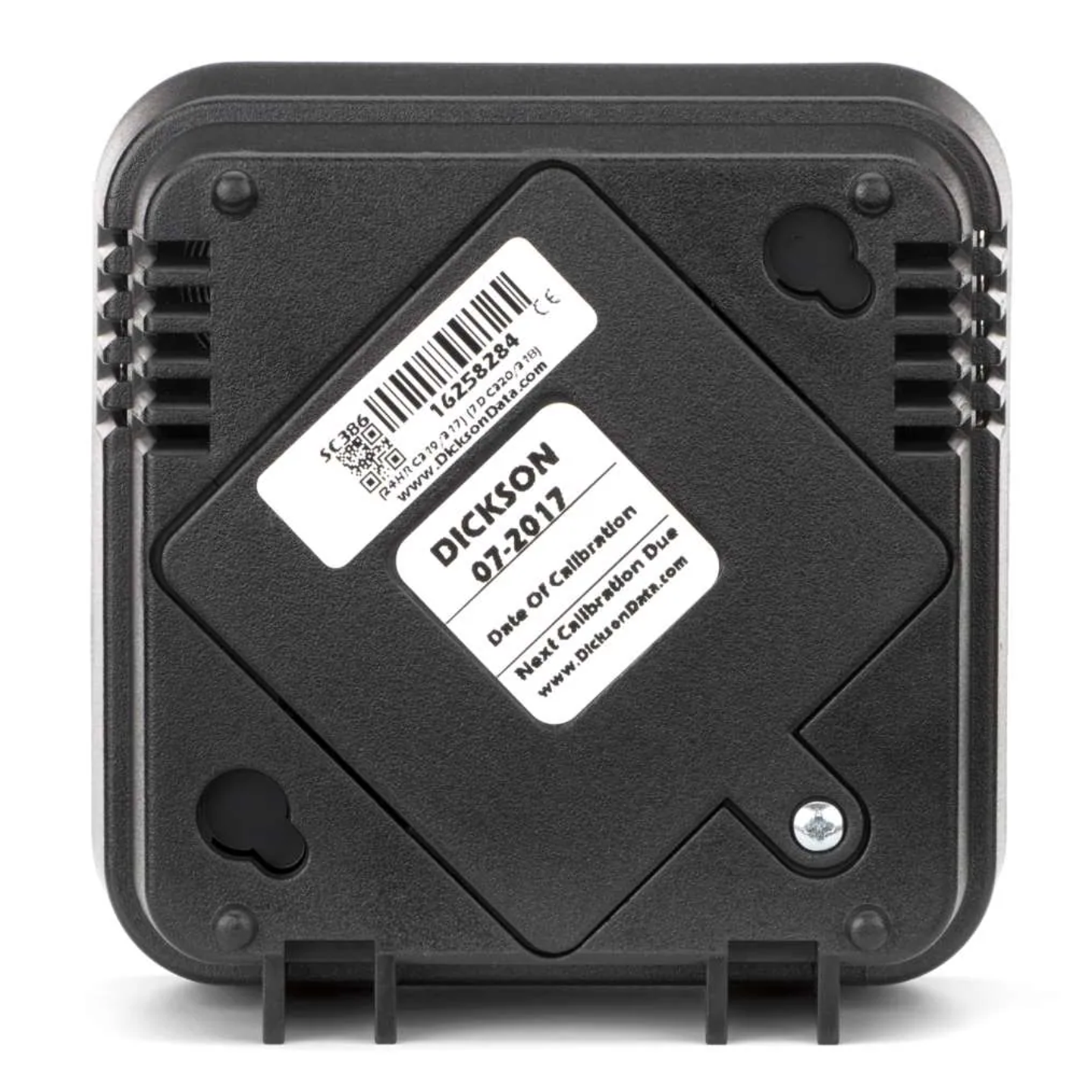

DICKSON 3″ Temperature Chart Recorder
Brand
DICKSON
|
Model
SC3
|
🇺🇸 USA
DICKSON Paper Temperature Loggers Monitor and record data in virtually any location with these compact temperature loggers.
These loggers are calibrated for accurate logging in refrigerators, freezers, incubators, and more. Units are °F/°C,
selectable for 24 hours or 7 days, and the rugged housing protects the logger from damage in harsh environments.
Depending on your application requirements, the unit can be wall-mounted or free-standing.
Out of Stock
Views: 0
Description
Model: SC367, SC377, SC386, SC387, SC397
DICKSON Paper Temperature Loggers Monitor and record data in virtually any location with these compact temperature loggers.
These loggers are calibrated for accurate logging in refrigerators, freezers, incubators, and more. Units are °F/°C,
selectable for 24 hours or 7 days, and the rugged housing protects the logger from damage in harsh environments.
Depending on your application requirements, the unit can be wall-mounted or free-standing.
DICKSON, paper temperature recorder, SC367, SC377, SC386, SC387, SC397, 3"
Accuracy: ±1℃
Operating environment: -22 to 122F (-30 to 50C), 0 to 95%
Battery: One AA battery (user replaceable)
Battery Life: 2 years under normal use
Dimensions: 3 inches
Dimensions (Inches/cm): 3.7X3.7X2.2 (9.3X9.3X5.7)
Recording time: 24 hours or 7 Days 227g Accessories: One "AA" battery & pen (without recording paper) IP rating: IP20 Warranty: 12 months
Model
Temperature (℃)
Time/Chart Model(℃)
Pen
SC367
-25 ℃ ~ 0 ℃
7DAY:C310 24 HR:C309
P222(Red x 6 )
( Optional )
SC377
-15℃ ~+10℃
7DAY:C312 24HR:C311
SC386
-5℃ ~ 20℃
7DAY:C318 24HR:317
SC387
+10℃~+35℃
7DAY:C314 24HR:C313
SC397
+25℃~50℃
7DAY:C316 24HR:C315
Specifications
- Accuracy± 2% Of Full Scale
- Measuring RangeSC367 : -25.0 to 0. C ; SC386 : (-5 to 20C)
- Deviation±2% of full scale (recorder only)
- Response Time11 Minutes to 63% of Full Scale (in air moving 5' per second)
- Temperature SensorPrecise spiral wound bi-metallic strip transducer
Features
- Charter Speed7 days / 24 hours (Selectable)
- ChannelsChannels CH1: Temperature
- Waterproof RatingIP 20
Attributes
- Operating TemperatureSC367 : -25.0 to 0. C ; SC386 : (-5 to 20C) / lower than 95%RH without dew。
- Storage Temperature0~50 °C / lower than 80%RH without dew。
- Elevation LimitationLower than 1,000 meters
- Power Supply1.5V Battery (AA) x 1
- Battery LifeApprox. 2 years (depend on how to use)
- Dimensions3.7X3.7X2.2 " (9.3X9.3X5.7 cm)
- Weight227 g
- AccessoryRecording Chart
