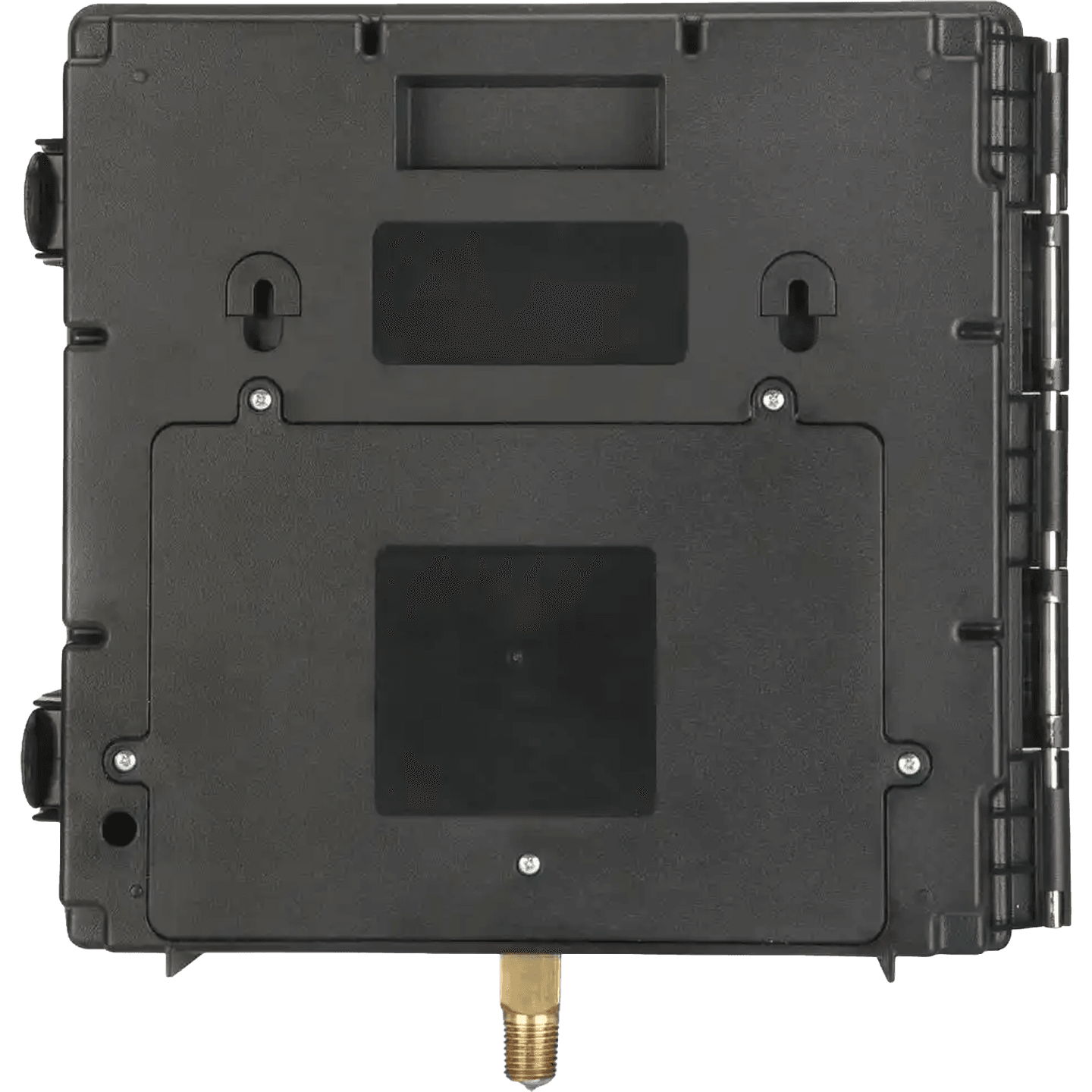

DICKSON PW865 8-inch Pressure Chart Recorder
Brand
DICKSON
|
Model
PW865
|
🇺🇸 USA
The measurement range is 0.0 to 300.0 PSI, featuring a circular chart design that is especially suitable for pressure hold testing and long-term monitoring applications. It provides 7-day / 24-hour chart speed switching for recording and analysis as needed. The connection specification is a 1/4” NPT thread with a 5/8” hex design for convenient installation. With an IP66 waterproof and dustproof rating, it can be used in various industrial and outdoor environments.
Out of Stock
Views: 56
Description
The DICKSON PW865 8-inch pressure chart recorder is designed for measuring both water and air pressure, with a range from 0.0 to 300.0 PSI (approximately 21 kg). Its circular design is not only aesthetically pleasing but also allows for continuous pressure monitoring, making it ideal for various pressure holding test applications. The PW865 provides efficient recording capabilities, delivering accurate and reliable data to help you easily manage and analyze pressure changes.
Specifications
- Accuracy無數字顯式
- Measuring Range0.0 to 300.0 PSI (約21公斤)
- Response Time約1 - 5 秒
Features
- Recording Interval7天/24小時可選擇
- Interface1/4
- Waterproof RatingIP66
Attributes
- Operating Temperature-30~50°C / lower than 95%RH without dew。
- Storage Temperature0~50 °C / lower than 80%RH without dew。
- Altitude LimitLower than 1,000 meters
- Power Supply1.5V Battery (AA) x 1 (User Replaceable)
- Battery LifeApprox. 1 year (depend on how to use)
- Dimensions16.4 x 15.2 x 7.4 cm
- Weight1.32 kg (2.9 Lbs)
- AccessoriesRecording Chart 、1/4NPT Thread
