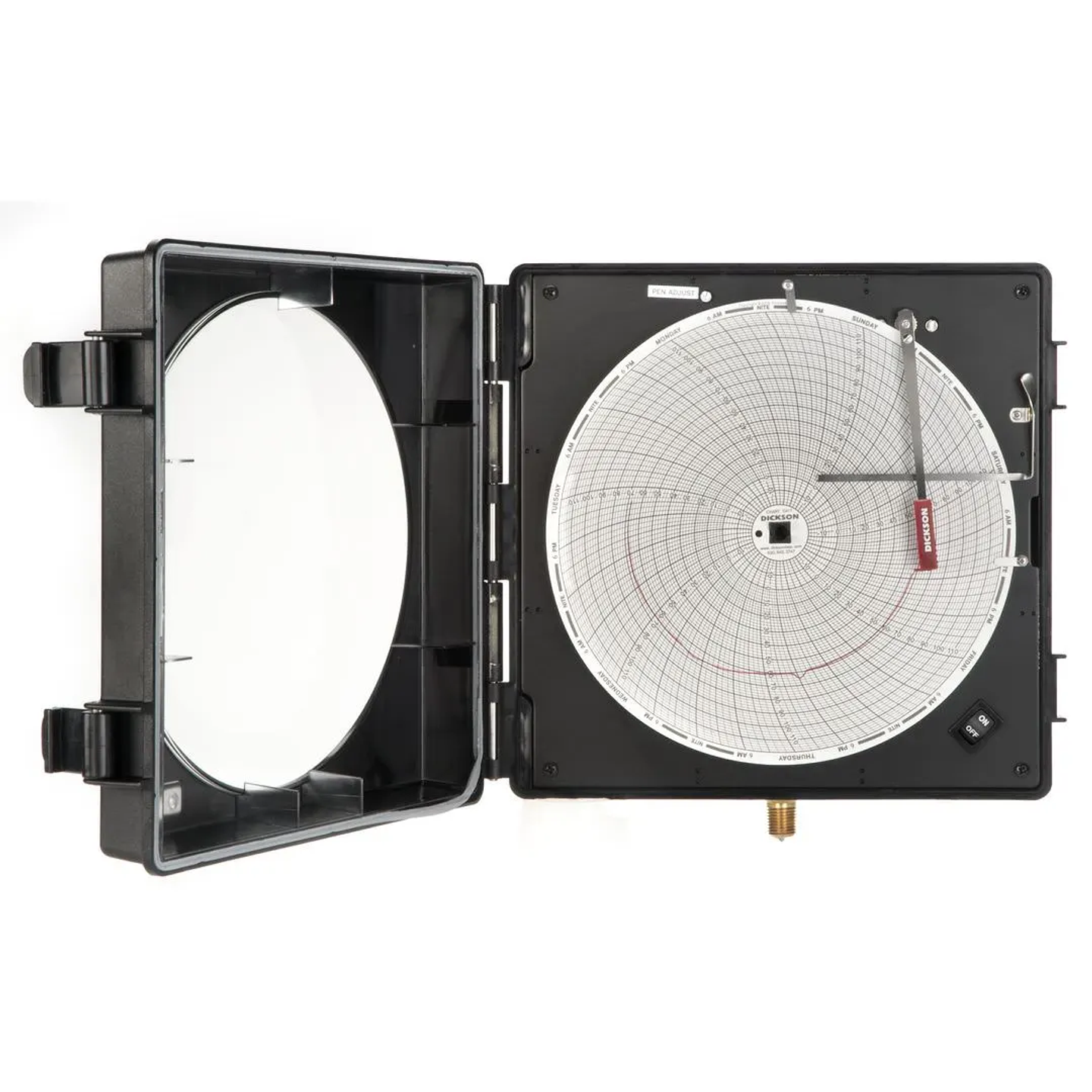

DICKSON 8" PW8 Pressure chart recorder
Brand
DICKSON
|
Model
PW867
|
🇺🇸 USA
• 8-inch circular design for clear pressure change display
• Measurement range: 0.0 to 300.0 PSI
• Suitable for both water and air pressure testing
• Waterproof rating: IP66
• Chart speed: selectable 7 days/24 hours
• Interface: 1/4" NPT thread, 5/8" hex
Out of Stock
Views: 0
Description
The DICKSON PW867 8-inch pressure chart recorder is a high-performance device designed for monitoring both water and air pressures, with a measurement range of 0.0 to 300.0 PSI. Its circular design not only looks appealing but also provides a clear representation of pressure changes, allowing users to effortlessly track pressure status. Ideal for industrial and laboratory applications.
Specifications
- 精確度無數字顯式
- 量測範圍0.0 to 300.0 PSI(約21 公斤)
- 誤差為滿刻度的 2％
- 反應時間約1 - 5 秒
Features
- 圖表速度7天/24小時可選擇
- 介面1/4" NPT 螺紋，5/8" 六角
- 防水等級IP66
Attributes
- Operating Temperature-30~50°C / lower than 95%RH without dew。
- Storage Temperature0~50 °C / lower than 80%RH without dew。
- Elevation LimitationLower than 1,000 meters
- Power Supply1.5V Battery (AA) x 1 (User Replaceable)
- Battery LifeApprox. 1 year (depend on how to use)
- Dimensions16.4 x 15.2 x 7.4 cm
- Weight1.32 kg (2.9 Lbs)
- AccessoryRecording Chart 、1/4NPT Thread
