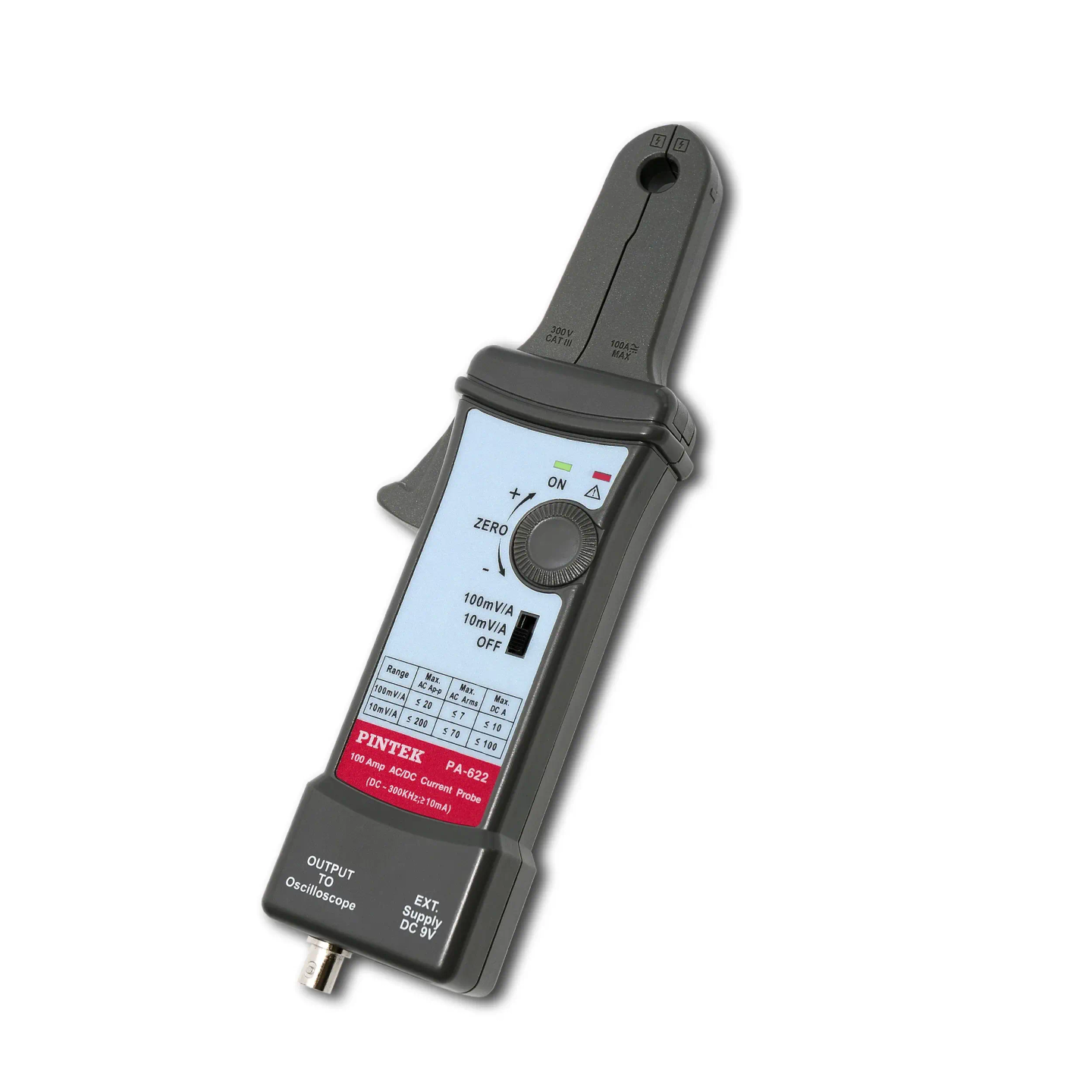

Oscilloscope Current Probe
Model
PA-622
|
🇹🇼 Taiwan
Maximum measurement current ±100A DCA,
Frequency range: DC~300KHz,
Sensitivity: ≧10mA,
Overload warning feature,
Rise time: 1.2μs,
Supports battery and power adapter supply,
Durable detachable design.
Out of Stock
Views: 0
Description
The PA-622 Oscilloscope Current Probe is a high-performance measuring tool designed for accurate current measurement. It boasts a maximum measurement current of ±100A DCA and a minimum sensitivity of ≧10mA, with a frequency range from DC to 300KHz to precisely capture signal variations. Its unique overload warning feature ensures safety during use, and it provides two range settings (10mV/A and 100mV/A) to meet various measurement needs. Additionally, the detachable design enhances durability, making it suitable for various working environments.
Specifications
- 頻率範圍直流 300KHz (-3dB)
- 精確度+/- 3%: 50mA~10A Peak at 100mV/A; +/-4% 500mA~40A peak at 10mV/A; +/-15% 40A~100A Peak
- 最大工作電壓300V CATIII
- 最大靈敏度>= 10mA
- 上升時間1.2 micro s.
- 電池或電壓變電器9V NEDA 1604A, IEC DLR61 或 PINTEK 電源轉換器
- 附件BP-250, MT-246N, 電壓變壓器 說明書
Features
- 最大測量電流±100A DCA
- 頻率範圍DC~300KHz
- 靈敏度≧10mA
- 過載警示功能具
- 上升時間1.2μs
- 供電方式乾電池及電源轉接器
- 設計堅固耐用的分離式設計
Attributes
- Operating Temperature5 to 40°C / lower than 80%RH without dew
- Storage Temperature-20 to 50°C / lower than 80%RH without dew
- Dimensions280 mm x 70mm x 32 mm (11 x 2.8 x 1.3 inch)
- Weight260 g (9.5 oz) (Not includs Battery)
- AccessoryNo
