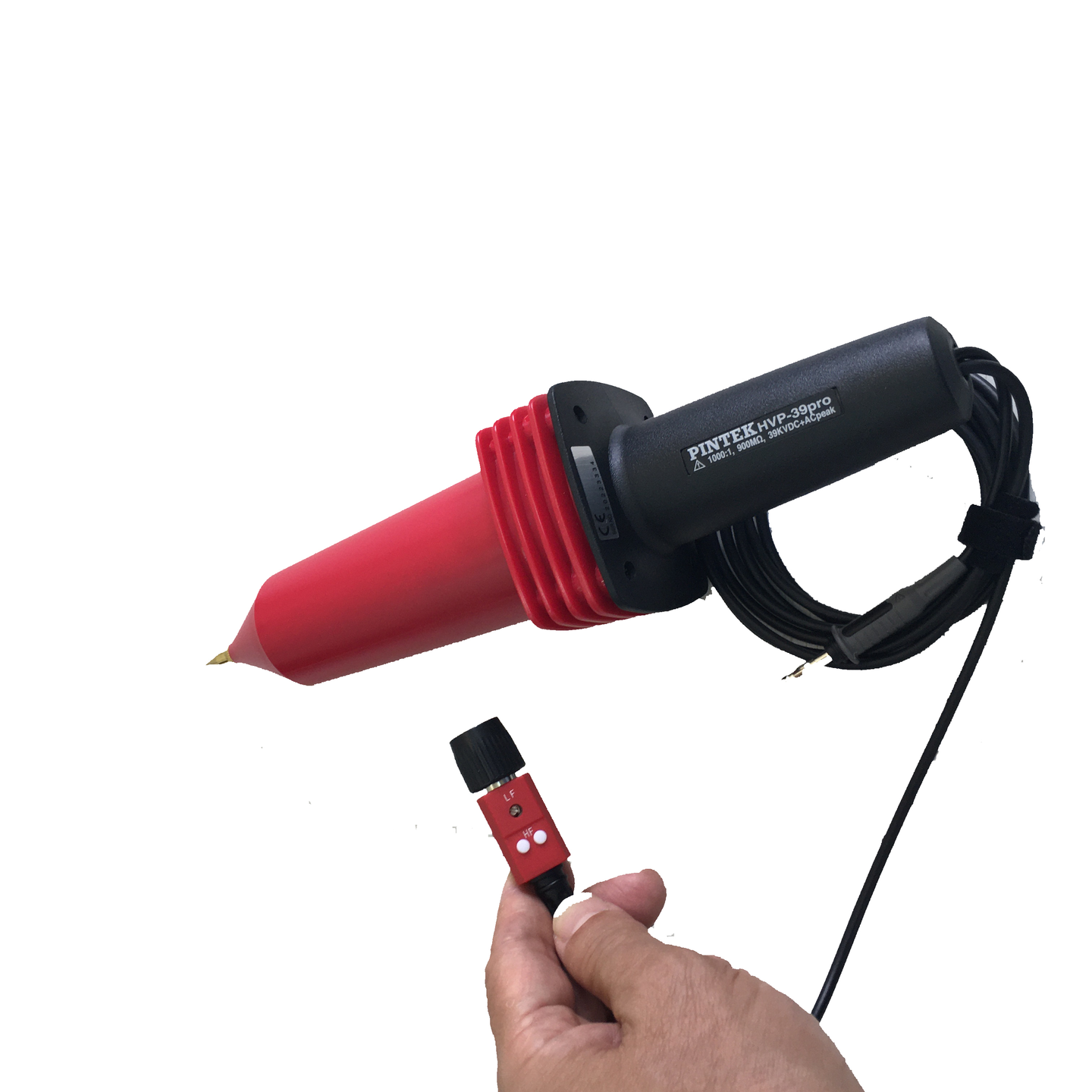

High Voltage Oscilloscope Probe 39kV, 50MHz, (Attenuation 1000:1)
Brand
PINTEK
|
Model
HVP-39pro
|
🇹🇼 Taiwan
HVP-39 Pro Made in Taiwan
High Voltage Oscilloscope Probe 39kV, 50MHz, High Voltage Probe (Attenuation 1000:1)
HVP-39 Pro is a high-voltage probe made in Taiwan, with a maximum bandwidth of 220MHz and an attenuation factor of X1000; the maximum withstand voltage reaches 39k DC+AC Vpeak; the BNC connector is suitable for various oscilloscopes, GWINSTEK, SIGLENT, UNI-T, RIGOL, OWON, All models of GW Instek oscilloscopes or oscilloscopes of other brands.
HVP-39pro ( 1000:1, 39KV, 50MHz )
39KVDC+AC peak value
900MΩ impedance
DC~50MHz(-3dB)
1000:1 for oscilloscope
Very low noise.
Price
NT$ 15,015
Out of Stock
Views: 0
Description
HVP-39 Pro Made in Taiwan
High Voltage Oscilloscope Probe 39kV, 50MHz, High Voltage Probe (Attenuation 1000:1)
HVP-39 Pro is a high-voltage probe made in Taiwan, with a maximum bandwidth of 220MHz and an attenuation factor of X1000; the maximum withstand voltage reaches 39k DC+AC Vpeak; the BNC connector is suitable for various oscilloscopes, GWINSTEK, SIGLENT, UNI-T, RIGOL, OWON, All models of GW Instek oscilloscopes or oscilloscopes of other brands.
HVP-39pro ( 1000:1, 39KV, 50MHz )
39KVDC+AC peak value
900MΩ impedance
DC~50MHz(-3dB)
1000:1 for oscilloscope
Very low noise.
Specifications
- Measuring RangeDC~50MHz
- Attenuation Ratio1000:1
- Read OutNone
- Input Impedance900MΩ
- Capacitance2.0 PF
- Max. DC+AC peak39KV CAT II
- Max. AC RMS.27KV CAT II
- Max. Loading Current45uA
- Rise Time7 nS
- Signal / Noise>60dB at 1KHz ; >50dB at 1MHz
- DC Accuracy≦3% (0~35KV)
- Accuracy≦3% at 1 KHz
- Temp. Coefficient≦200 PPM/℃
- Compensation RangeCompensation Range 10PF~35PF
- Safety RatingMeets EN61010-031 CAT II
- 2M±0.2M2M±0.2M
- Operating Temperature-10~55 ℃
- Humidity Range85% RH or less(at 35℃)
- Storage Temperature-20~70 ℃
- Color: Handle/BodyBlack/Red
- Weight460g /80(W) x 80(H) X 320(L) mm
Features
- HVP-39pro Main Features( 1000:1, 39KV, 50MHz )
- Max. DC+AC peak39KVDC+AC Peak Value
- Input Impedance900MΩ Resistance
- BandwidthDC~50MHz(-3dB)
- Attenuation Ratio1000:1 for oscilloscope
- Very low noise>60dB at 1KHz ; >50dB at 1MHz
