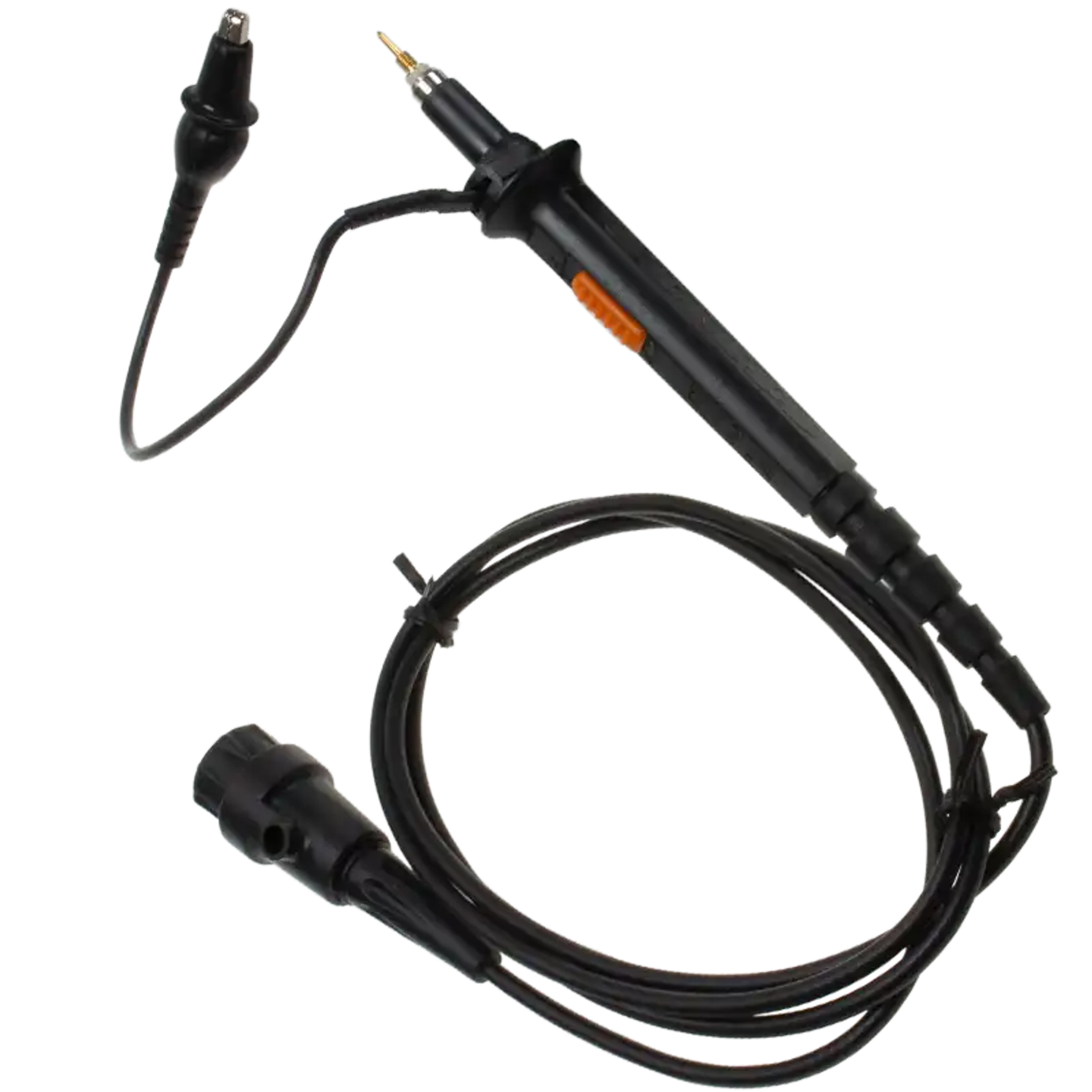

Oscilloscope measuring line clip
Brand
TECPEL
|
Model
LF-250
|
🇹🇼 Taiwan
LF-250 oscilloscope measuring line, 250MHz range, compatible with all BNC-connected oscilloscopes.
Complies with CE safety standards, features external insulation for safety and durability.
High-quality Taiwanese manufacturing, an ideal choice for measurement tools.
Price
NT$ 900
Out of Stock
Views: 44
Description
The LF-250 oscilloscope measuring line is a high-quality probe designed for a frequency range of 250MHz, sourced from a renowned oscilloscope manufacturer in Taiwan. This probe is compatible with all BNC-connected oscilloscopes and complies with CE safety standards, featuring external insulation for enhanced safety and durability. The LF-250 is the ideal choice for accurate electronic signal measurement, suitable for both professional engineers and electronics enthusiasts.
Specifications
- Measuring Range250MHz(±3dB)
- Maximum Input VoltageDC 600V
- Resistance1MΩ(x1) / 10MΩ(x10)
- Attenuationx1 / x10
Features
- Sound Frequency250MHz(±3dB)
- Maximum Input VoltageDC 600V
- Resistance1MΩ(x1) / 10MΩ(x10)
- 衰減設定x1 / x10
Attributes
- Operating Temperature5~40 °C / Humidity below 80%RH, non-condensing
- Storage Temperature-20 ~ 50 °C / Humidity below 80%RH, non-condensing
- Dimensionsmm
- WeightApprox. grams
- AccessoriesNone
