100MHz Oscilloscope Differential Probe
Brand
TECPEL
|
Model
DP-100
|
🇹🇼 Taiwan

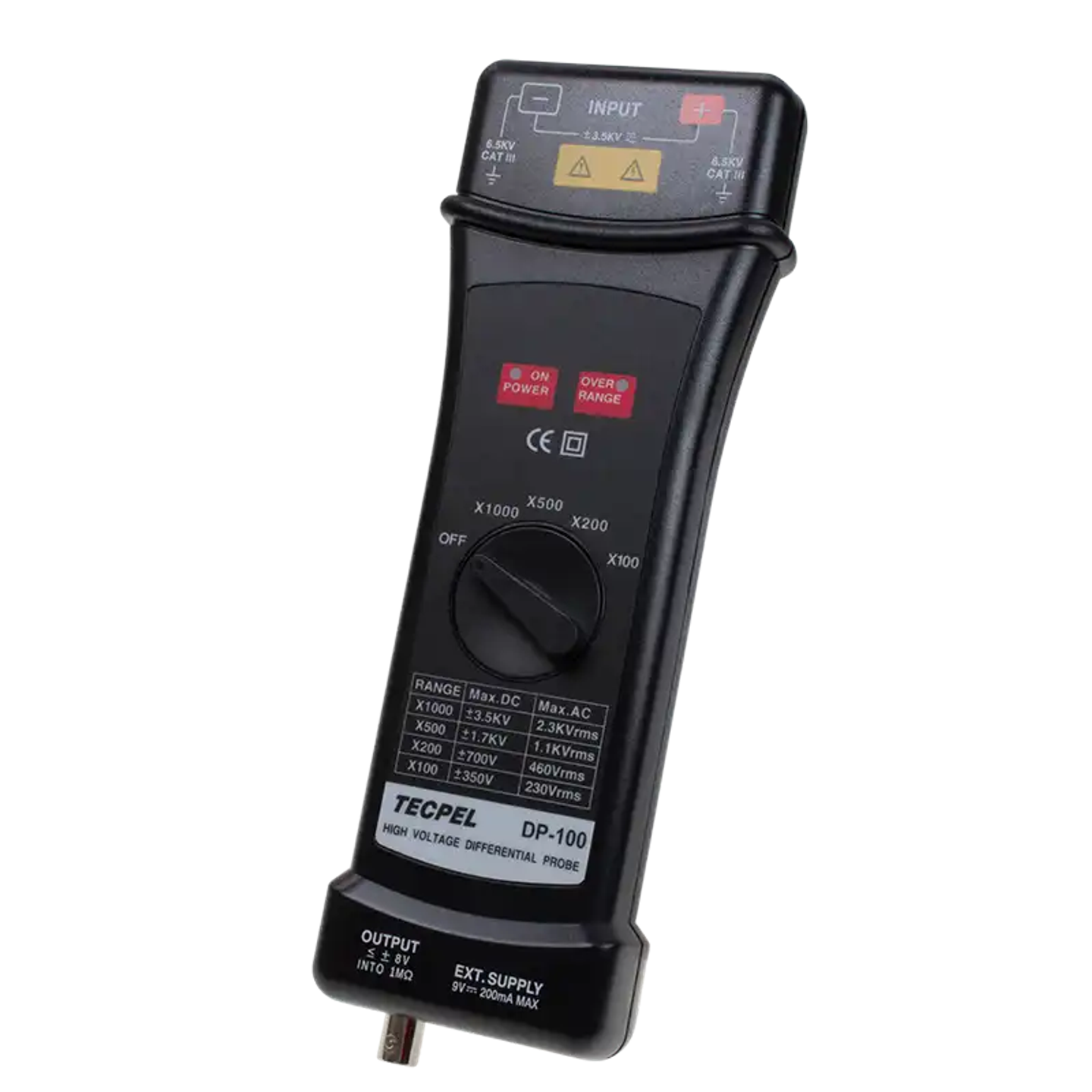

The DP-100 Differential probe provides a safety means for measuring differential voltage to all oscilloscope models. The DP-100 converts the high differential voltage (<=7000 peaks) into a low voltage (<=7.0v, with reference to the earth) and displays it on the oscilloscopes.
DP-100 ( 100MHz/7KVp-p )
This is the first detachable design (patent for 15 years)
High frequency, big power using. Max. Measuring is 7000Vp-p.
It is capable for any brand of digital and analog oscilloscopes.
Additional AC Adaptor.
16MΩ high input impedance.
Out of Stock
Views: 0
Description
The DP-100 Differential probe provides a safety means for measuring differential voltage to all oscilloscope models. The DP-100 converts the high differential voltage (<=7000 peaks) into a low voltage (<=7.0v, with reference to the earth) and displays it on the oscilloscopes.
The DP-100 is designed to operate with the 1M Ohm impedance oscilloscope. When combined with the 50 Ohm load, the attenuation will be twice. We recommend using Tecpel PL-10 with DP-100 to expand the measuring with a Digital multimeter (DMM) to observe more accurate measurements. The accuracy of the oscilloscope is 3%, and the DMM is less than 1%. Note: If you connect DP-100 to the DMM without PL-10, the accuracy will be higher than 10%.
Specifications
- Measuring Range100MHz(±3dB)
- IN voltageDC 600V
- Resistance1MΩ(x1) / 10MΩ(x10)
- Attenuationx1 / x0
Attributes
- Operating Temperature5~40°C / lower than 80%RH without dew
- Storage Temperature-20 to 50°C / lower than 80%RH without dew
- Dimensionsmm
- WeightApprox. g
- AccessoryNo
