Differential oscilloscope probe DP-30K ( 30KVp-p / 75MHz )
Brand
PINTEK
|
Model
DP-30K
|
🇹🇼 Taiwan
• 30KVp-p high voltage tolerance
• Frequency range up to 75MHz
• Input impedance of 81.6MΩ // 1pF
• Easy switching between x200 and x2000 attenuation
• Unique detachable design, patented No. 114205
• Maximum common mode voltage of 7.5KV DC
• Requires external 5V DC power supply, max current consumption approx. 0.5A
Out of Stock
Views: 48
Description
The Differential Oscilloscope Probe DP-30K is designed for high voltage applications, featuring a voltage rating of 30KVp-p and a frequency range of 75MHz, making it suitable for various electronic testing scenarios. With an input impedance of 81.6MΩ, it ensures accurate measurements without affecting the tested circuit. Additionally, its unique detachable design enhances convenience and durability, catering to a range of professional testing needs.
Specifications
- Measuring Range75MHz
- Differential Voltage≦ 1.5 KV DC for X200, (約 1.1 KV RMS) ≦ 15 KV DC for X2000, (約 7 KV RMS)
- Maximum Input Voltage最高差動電壓: 30 KVp-p, 或 ± 15KVp-p 最大共模電壓或浮動電壓: 7.5 KV DC 或 15 KVp-p 或 5 V RMS 輸入端及接地端間最高電壓: 5 KV RMS 注意: 最高電壓輸入時, 時間請勿超過 1 分鐘
- Input Impedance差動: 81.6 MΩ // 1 pF 單端到接地端間的輸入阻抗: 40.8 MΩ // 2 pF
- Sound Level60Hz: > 80dB ; 100Hz: > 60dB ; 1MHz: > 50dB
- AttenuationX200, 或 X2000
- Power Supply指定外接 5 V DC 電源(必須使用本公司指定品)
- 耗電最大耗電量約 0.5 A / 5 V DC
Features
- 高電壓耐受能力30KVp-p
- Sound Frequency75MHz
- Input Impedance81.6MΩ // 1pF
- 衰減設計x200, x2000
- 設計專利第114205號
- 最大共模電壓7.5KV DC
- Power Supply外接 5V DC
- 最大耗電量約 0.5A
Attributes
- Operating Temperature5 to 40°C / lower than 80%RH without dew
- Storage Temperature-20 to 50°C / lower than 80%RH without dew
- Dimensions220 x 85 x 30 mm; 350 g

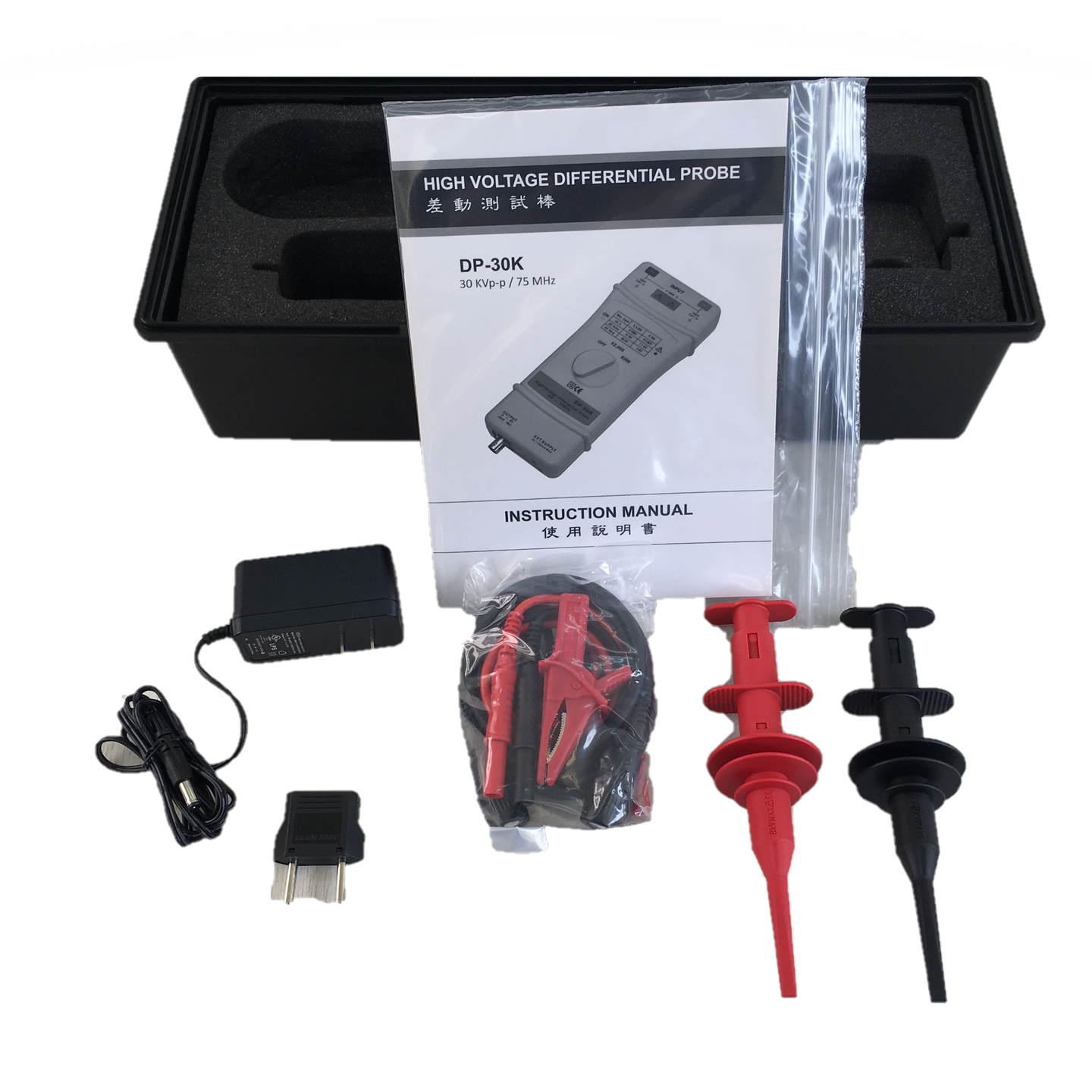

- Accessoriestest leads, power adopter, alligator cip, carrying box,
