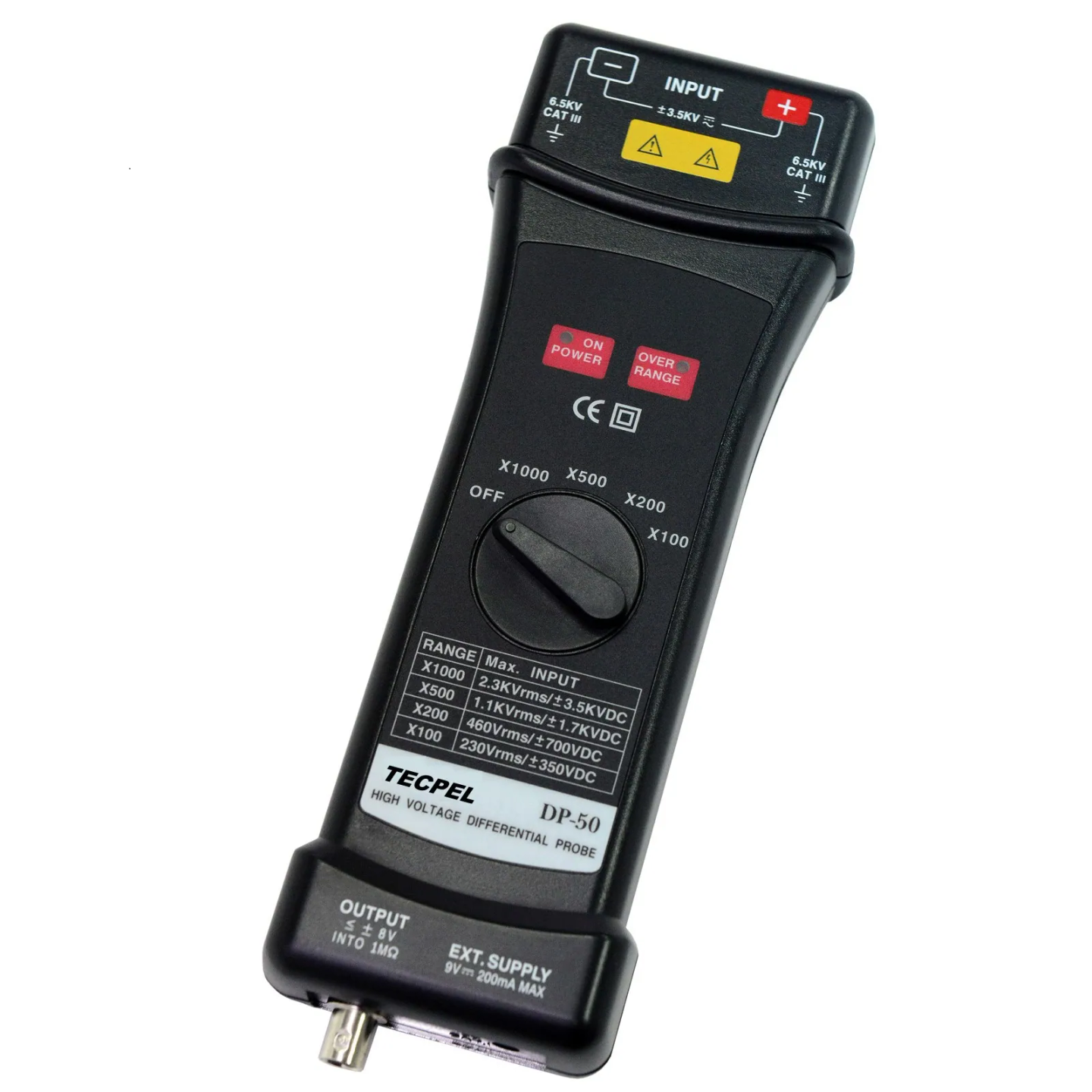

50 MHz Oscilloscope Differential Probe
Brand
TECPEL
|
Model
DP-50
|
🇹🇼 Taiwan
• Bandwidth: DC - 50 MHz (-3dB)
• Attenuation: x100, x200, x500, or x1000
• Accuracy: +/- 2%
• Input Voltage Range:
- ≦ 700 Vp-p for x100 (approx. 230 Vrms or DC)
- ≦ 1400 Vp-p for x200 (approx. 460 Vrms or DC)
- ≦ 3500 Vp-p for x500 (approx. 1140 Vrms or DC)
- ≦ 7000 Vp-p for x1000 (approx. 2300 Vrms or DC)
• Maximum Input Voltage: Maximum differential voltage: 7000 V
• Input Impedance: Differential: 16 MΩ / 1 pF
• Output Voltage: ≦ +/- 7.0 V
• Rise Time: 7 ns
Out of Stock
Views: 47
Description
The DP-50 50 MHz Oscilloscope Differential Probe is designed for high-performance testing of electronic devices, featuring excellent bandwidth and high accuracy. It complies with CATIII 1,000V safety standards and is compatible with various brands of oscilloscopes. This probe is particularly suitable for measuring high-voltage and fast signals, effectively reducing noise interference and providing stable test results, catering to the needs of professional engineers.
Specifications
- Measuring Range50 MHz
- Differential VoltageDC + pk AC : 6500V
- Resistance1,000V(DC + AC peak) 或 600Vrms
- Common Mode Rejection Ratio (CMRR)60Hz:大於 10,000:1; 100Hz:大於 1,000:1; 1MHz:大於 300:1
- Sound Level≤ 2mVrms(50Ω 負載)
- Attenuationx20, x50, x200
Features
- BandwidthDC - 50 MHz (-3dB)
- Attenuationx100, x200, x500, x1000
- Accuracy±2%
- Maximum Input Voltage≦ 700 Vp-p (x100), ≦ 1400 Vp-p (x200), ≦ 3500 Vp-p (x500), ≦ 7000 Vp-p (x1000)
- Input Impedance差動: 16 MΩ / 1 pF
- Output Voltage≦ +/- 7.0 V
- Rise Time7 ns
- Noise Rejection Ratio60Hz: > 80 dB; 100Hz: > 60 dB; 1MHz: > 50 dB
- Power Supply外接9 V DC電源
Attributes
- Operating Temperature5 to 40°C / lower than 80%RH without dew
- Storage Temperature-20 to 50°C / lower than 80%RH without dew
- Dimensions210 x 58 x 30 mm
- WeightApprox. 200g
- AccessoriesNo
