DP-5205A High Frequency Differential Probe
Brand
PINTEK
|
Model
DP-5205A
|
🇹🇼 Taiwan
Designed for high precision measurement needs, suitable for various timing and waveform checks.
Key features include:
- Maximum input voltage: ±1300 V
- Power supply: 5 V DC
- Wide bandwidth: DC to 100 MHz
- Accuracy: ≦ ±2%
Out of Stock
Views: 0
Description

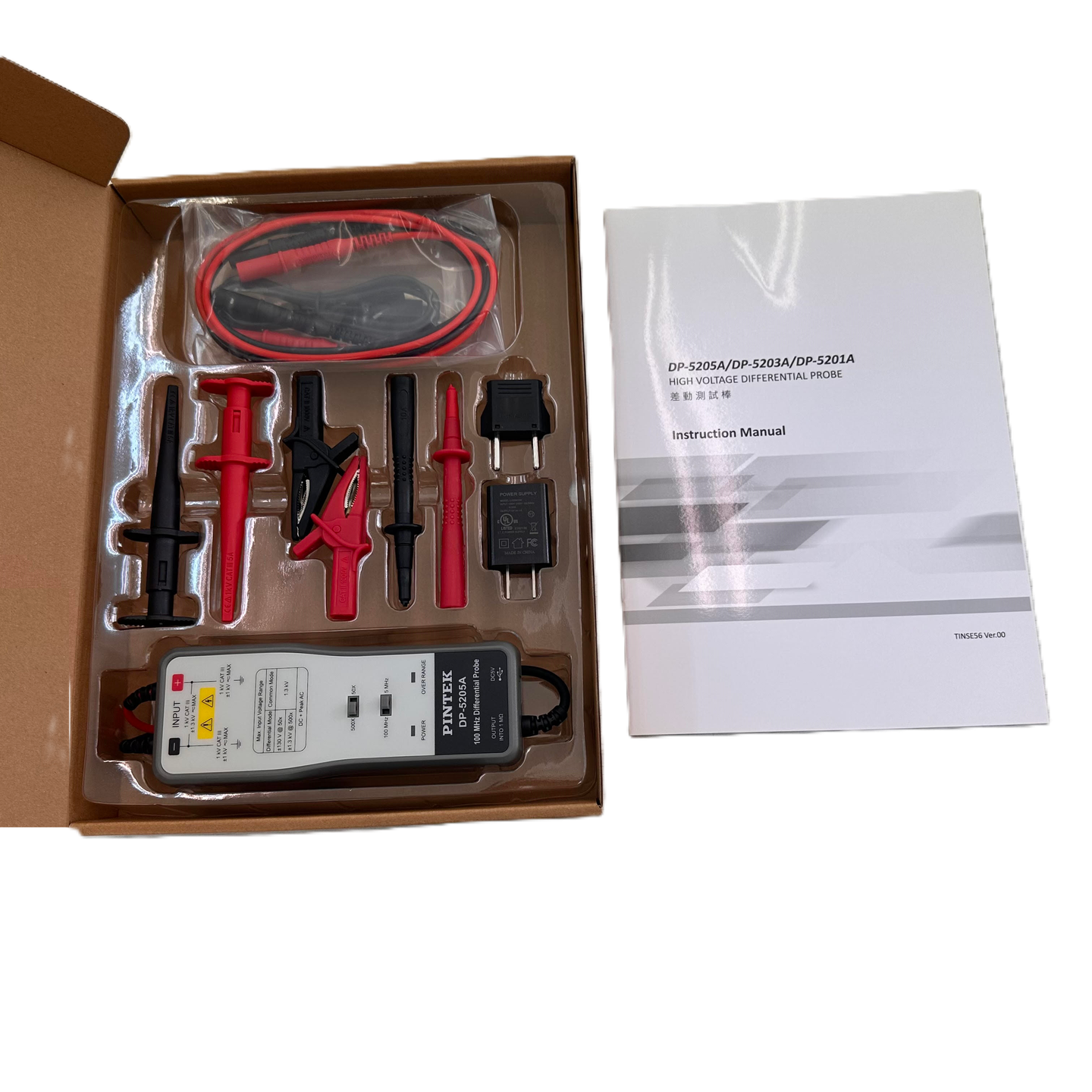

The DP-5205A High Frequency Differential Probe offers high accuracy and a wide bandwidth, capable of withstanding a maximum input voltage of ±1300 V, powered by a 5 V DC source. This probe is ideal for high precision measurement needs, providing stable performance for timing, waveform checks, and signal identification. Complete accessories include test probes and a USB cable for easy operation and connectivity.
Specifications
- 溫度範圍Reference: +20 °C ~ +30 °C Use: 0 °C ~ +50 °C Storage: -30 °C ~ +70 °C
- 濕度範圍Reference: ≦70 %RH Use: 10 % ~ 85 %RH Storage: 10 % ~ 90 %RH
Features
- 最大輸入電壓±1300 V (DC + AC peak)
- 供電方式5 V DC
- 頻率範圍DC - to 100 MHz
- 精確度≦ ±2%
Attributes
- Power SupplyPowered externally by 5 V DC (USB Input)
- Safety RatingUSB 2.0
- Dimensions175 x 68 x 28 mm
