DP-5203A Differential Probe

Brand TECPEL | Model DP-5203A | 🇹🇼 Taiwan

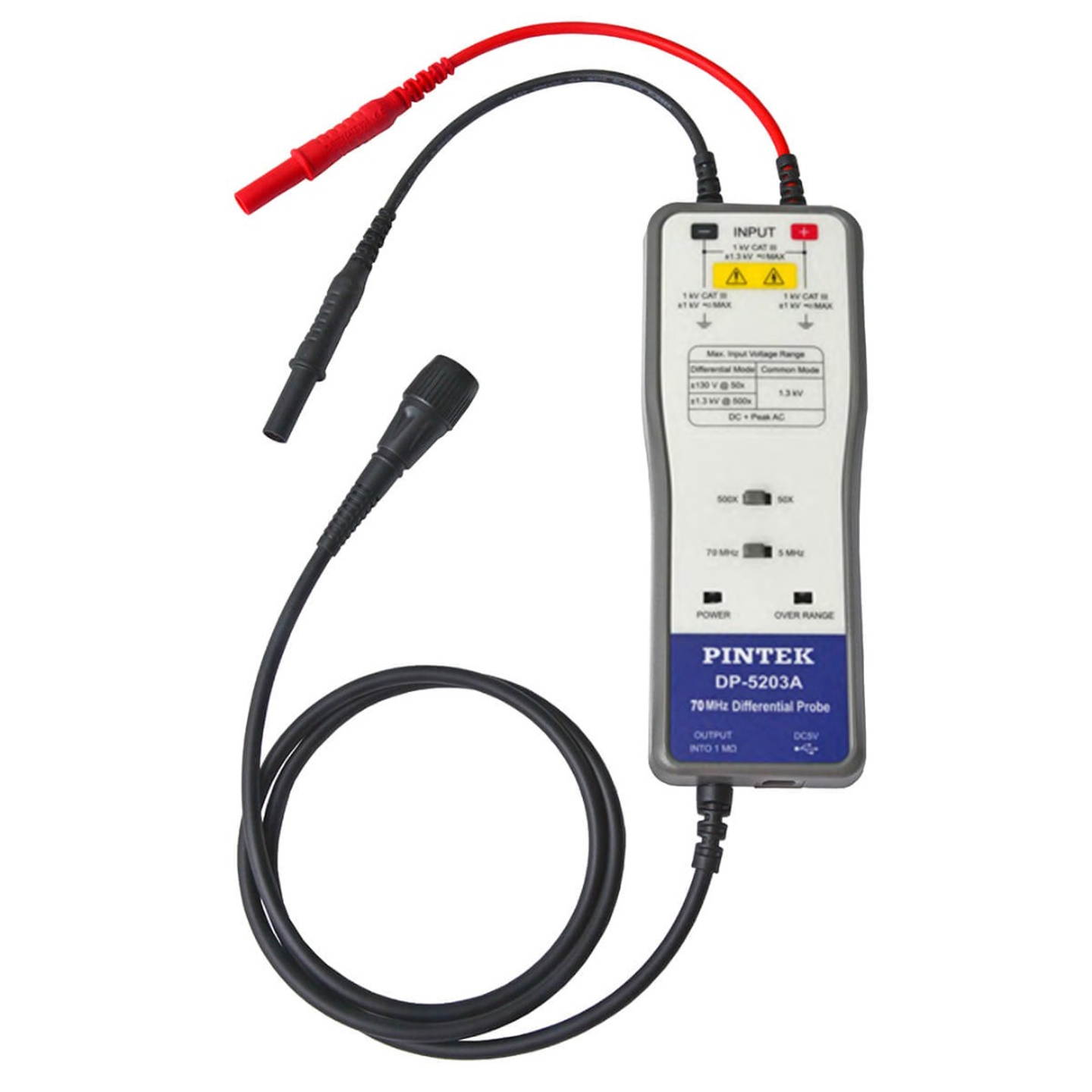

DP-5203A Differential Probe
TECPEL's DP-5203A with a rich testing functions and powerful performance, is the preferred tool for engineers and technicians.
Out of Stock
Views: 0

Description

Features : MAX. Input Voltage: +/-1300V (DC + AC peak)Bandwidth: 70MHz all rangesAttenuation: x50, x500Input Impedance: 5MΩ // 2PF (each to Ground) 10MΩ // 1PF (dual terminals)Accuracy: +/-2% all ranges5MHz limited Bandwidth selectionIt is able to connect to oscilloscope USB to get 5V DC power. The probe itself also has power adaptor for standard accessoryionals.

Specifications

  • BandwidthDC to 70 MHz
  • AttenuationX50 / X500
  • Accuracy≦ ±2%
  • Input Voltage Range≦ ±130 V (DC + AC peak) for X50, (i.e about 183 VRMS) / ≦ ±1300 V (DC + AC peak) for X500, (i.e about 1838 VRMS)
  • Permitted Max. Input VoltageMax differential voltage: ±1300 V (DC + AC peak) Max voltage between each input terminal and ground: 919 VRMS
  • Input Impedance5 MΩ // 2 pF each side to ground

Features

  • Output Voltage≦ ±2.6 V
  • Output Impedance50 Ω (for 1 MΩ input oscilloscope)
  • Rise Time≈ 6 nS
  • Rejection Rate on Common Mode60 Hz: ＞80 dB / 100 Hz: ＞60 dB / 1 MHz: ＞50 dB

Attributes

  • POWERExternal 5 V DC (USB Input), consumption about 300 mA
  • Dimensions175 x 68 x 28 mm
  • Weight285 g
  • Operating Temperature0 °C ~ +50 °C
  • Relative Mode10 % ~ 85 %RH
  • AccessoryExtender leads x 2pcs, Hook clips x 2pcs, Alligator clips x 2pcs, Test probes x 2pcs, USB cable x 1pc, Plug convertor x 1pc, AC adapter x 1pc, Instruction manual
