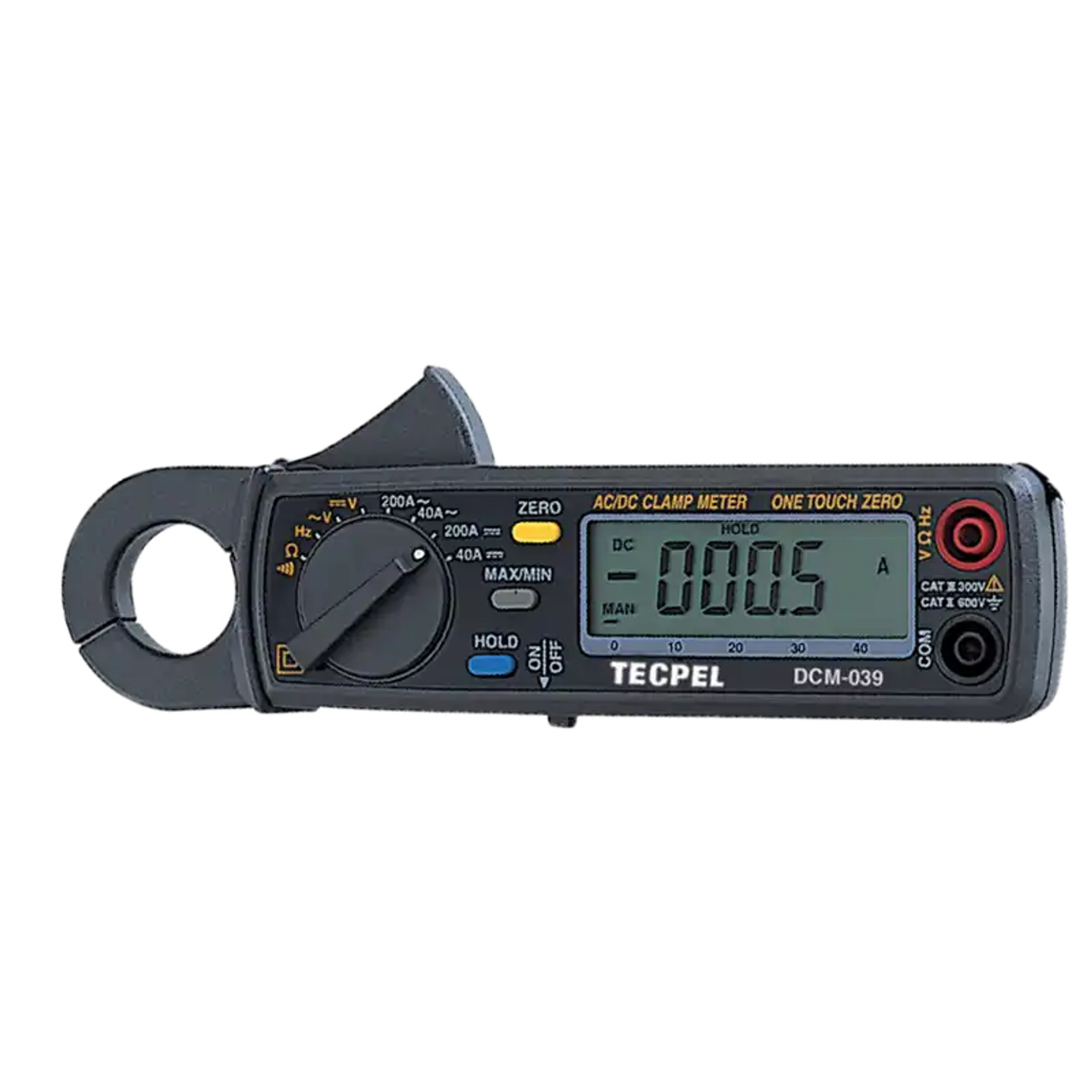

Digital AC/DC Clamp Meter
Brand
TECPEL
|
Model
DCM-039
|
🇹🇼 Taiwan
• Measures AC and DC current, with minimum resolution down to 10mA
• Clamp meter zero function
• High resolution and fast sampling rate, ideal for measuring small currents
• Maximum/minimum value update for real-time data
• Low battery indication to ensure the meter is always ready for use
Price
NT$ 3,990
In Stock
Views: 116
Description
The DCM-039 Digital AC/DC Clamp Meter is a professional measuring instrument suitable for measuring AC and DC current in a wide range of equipment, with a minimum display resolution of 10mA. Its high-resolution design delivers accurate readings even when measuring small currents, and the clamp zero function makes precise measurements easier. It is ideal for electricians, engineers, and maintenance personnel across a variety of applications.
Specifications
- Display Counts3,999 counts
- Jaw OpeningØ23 mm
- DC Current40 / 150 / 200 A ±2.2%+2
- AC Current40 / 150 / 200 A ±1.0%+3
- AC Voltage400 V (1.5%+2 @50/60 Hz)
- DC Voltage400 V ±(1.0%+2)
- Resistance40 / 400 Ω ±(1.0%+2)
- Frequency100~100K Hz ±(0.5%+2)
- ResolutionDC: 0.1V / AC: 0.1V / I:10mA
- Sampling Rate2 times per second / bar graph 20 times per second
Features
- Analog Bar Graph40 segments, updated 20 times per second
- Continuity Buzzerbelow 40 Ω
- Max/Min○
- Data Hold○
- Low Battery Indication○
- Zero Adjustment○
- Double Insulation○
Attributes
- Operating Temperature0~50 °C / below 85%RH, non-condensing
- Storage Temperature-10~50 °C / below 75%RH, non-condensing
- Altitude Limitbelow 1,000 m
- Power Supply1.5v AA battery x 2
- Dimensions180 × 63.6 × 35.6 mm
- Weight190g (including batteries)
- AccessoriesBatteries x2, test leads, carrying bag, user manual
