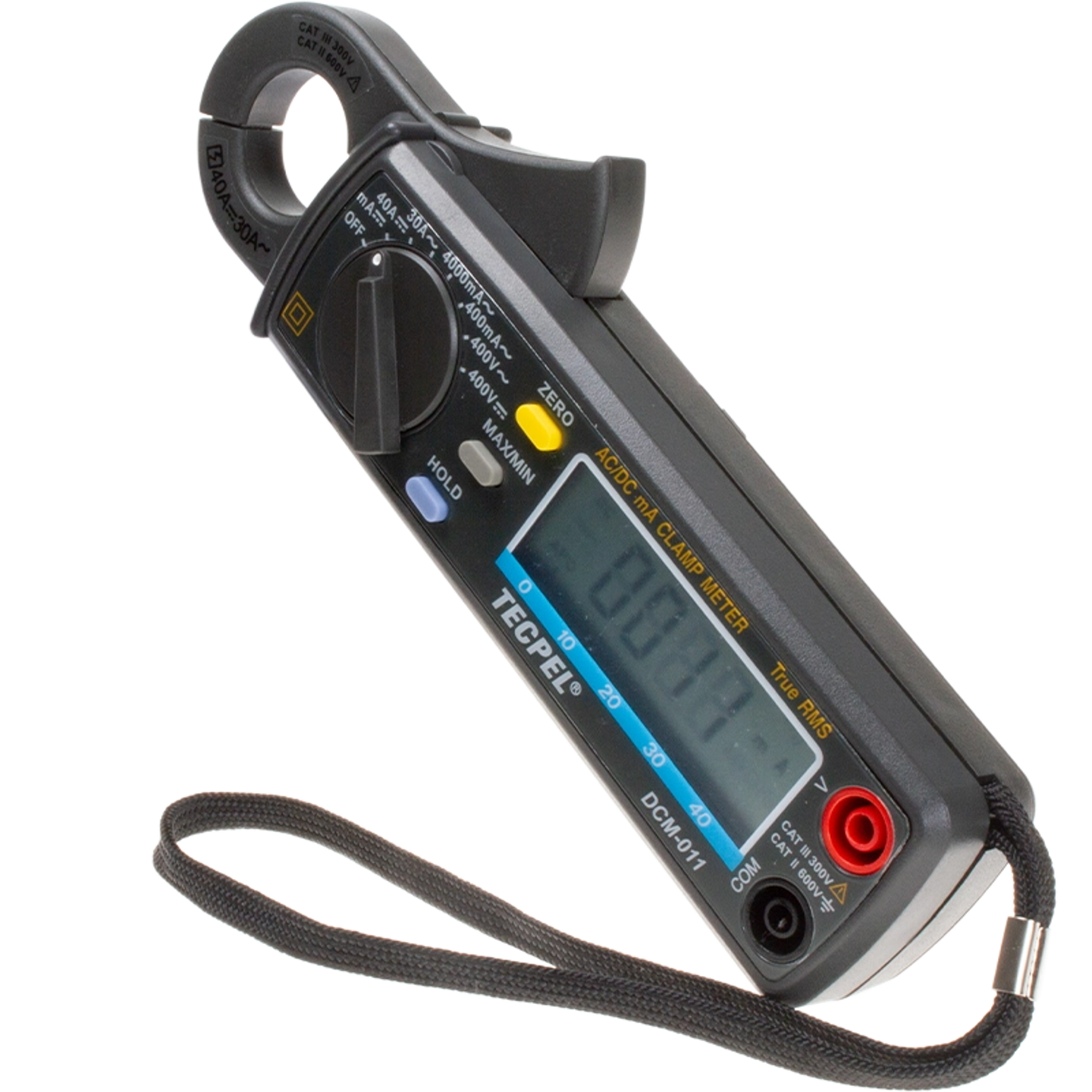

High Precision Clamp Meter

Brand TECPEL | Model DCM-011 | 🇹🇼 Taiwan
TECPEL DCM-011 is a high-performance, accurate, and easy-to-use digital clamp meter introduced by TECPEL. The double-insulated design provides users with higher safety protection, reducing possible risks during operation. The DC current resolution is 1mA, while AC current can reach 0.1mA, allowing you to easily read precise measurement results.
Price NT$ 6,500
Out of Stock
Views: 145

Description

TECPEL DCM-011 is a high performance, accurate and easy to use measuring digital hook meter from TECPEL, designed for measuring AC and DC currents and voltages, made in Taiwan, with guaranteed quality. It features True RMS AC current and voltage measurements, clear display captions, and an easy-to-read measurement display. The double-insulated design provides a higher level of safety for the user, reducing possible risks during operation. The error specification is ±1.5% + 4 for AC and ±1% + 2 for DC, providing excellent reliability. The resolution is 1mA for DC and 0.1mA for AC, allowing you to easily read accurate measurement results. TECPEL DCM-011 digital hook meter is your best choice for AC and DC current and voltage measurement, which is not only accurate and reliable but also has high safety and ease of use.

Specifications

  • Display Digits3,999 digits
  • Jaw OpeningØ23 mm
  • AC Current1m/ 30/ 40 A ±(2.5%+3 counts) @ 400mA range
  • DC Current400m/ 4000m/ 30 A ±(2.5%+5 counts)
  • DC Voltage400V ±(1.0% + 2 counts)
  • AC Voltage400V ±(1.5% + 4 counts) @ 50/60Hz
  • Sampling Rate3/second

Features

  • Measurement RangeManual
  • Analog BarUpdate rate 30/s
  • Zero CalibrationDCA range available
  • Maximum/MinimumMAX/MIN
  • Data HoldHOLD
  • Auto Power Off30 minutes

Attributes

  • Operating Temperature-10~50 °C / Below 85%RH, no condensation
  • Storage Temperature-20~60 °C / Below 75%RH, no condensation
  • Altitude LimitBelow 2,000 meters
  • Power Supply1.5V AA battery x 2
  • Power ConsumptionApprox. 15mA
  • External Dimensions183 × 61.3 × 35.6 mm
  • Weight190g
  • AccessoriesBatteries x2, Test leads, Carrying case, Manual
