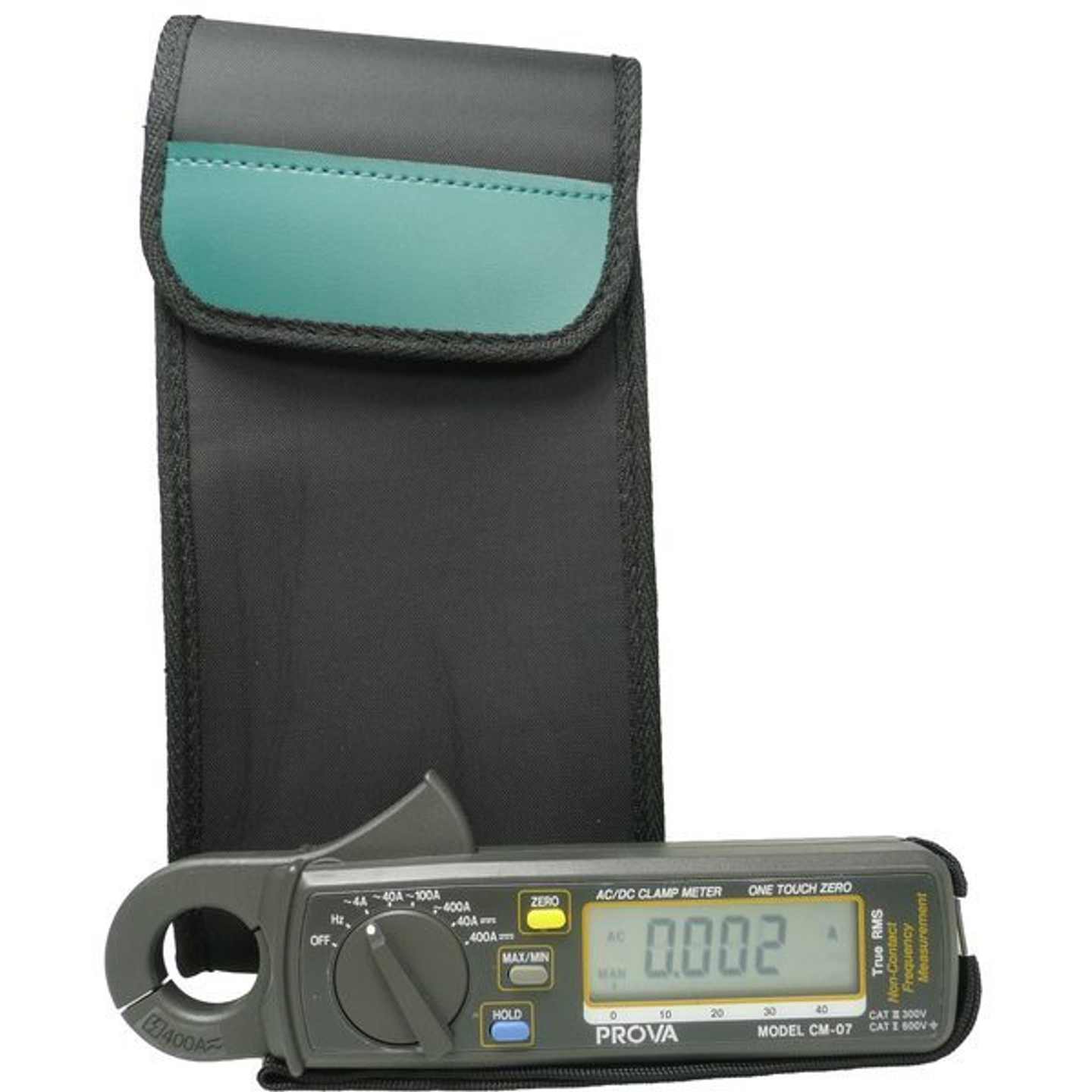

DC/AC Digital Clamp Transmitter
Brand
PROVA
|
Model
CM-07
|
🇹🇼 Taiwan
The CM-07 DC/AC Digital Clamp Transmitter offers the following features:
- High resolution: DC 10mA, AC 1mA
- True RMS measurement
- Non-contact frequency measurement
- One-touch DC current zero adjustment
- Compact 23mm clamp design
- Large LCD display and fast bar graph functionality
- Maximum/minimum value and data hold functions
- Easy rotary switch, ideal for tight spaces
Out of Stock
Views: 200
Description
The CM-07 DC/AC Digital Clamp Transmitter is a high-performance current measuring tool suitable for various electrical applications. This instrument features high-resolution DC and AC current measurement capabilities, and supports true RMS measurement to accurately capture a range of current signals. Its compact 23mm clamp design allows for easy operation in tight spaces, while the large LCD display with fast bar graph functionality provides intuitive data visualization, enabling users to easily monitor maximum/minimum values and data hold functions for measurement accuracy and convenience.
Specifications
- Display CountsDC: ±(1%+2 digits) / AC: ±(1.5%+7 digits)
- Jaw Opening23 mm
- DC Current99.99~999.9K Hz
- AC CurrentDC 10mA, AC 1mA - 100mA
- FrequencyDigital per second 2 times�� bar graph per second 20 times
- Sampling RateDC 40A to 400A, AC 4A to 500A
- Temperature EffectOperating temperature -10 °C to 50 °C
Features
- True RMSLow battery indication
- Crest FactorWhen current is greater than 0.1A, it can be detected
- Overload ProtectionOverload protection: AC 500A
- Max/MinTrue RMS: supported
- Low Battery IndicatorCrest factor: ≤ 4
Attributes
- Operating Temperature0~50 °C / Below 85%RH, no condensation
- Storage Temperature-10~50 °C / Below 75%RH, no condensation
- Altitude LimitBelow 1,000 meters
- Power Supply1.5V AAA battery x 2
- Power ConsumptionApprox. 10mA
- Dimensions183 x 61.3 x 35.6 mm
- Weight190g (including batteries)
- AccessoriesCarrying pouch, user manual, 1.5V battery x 2
