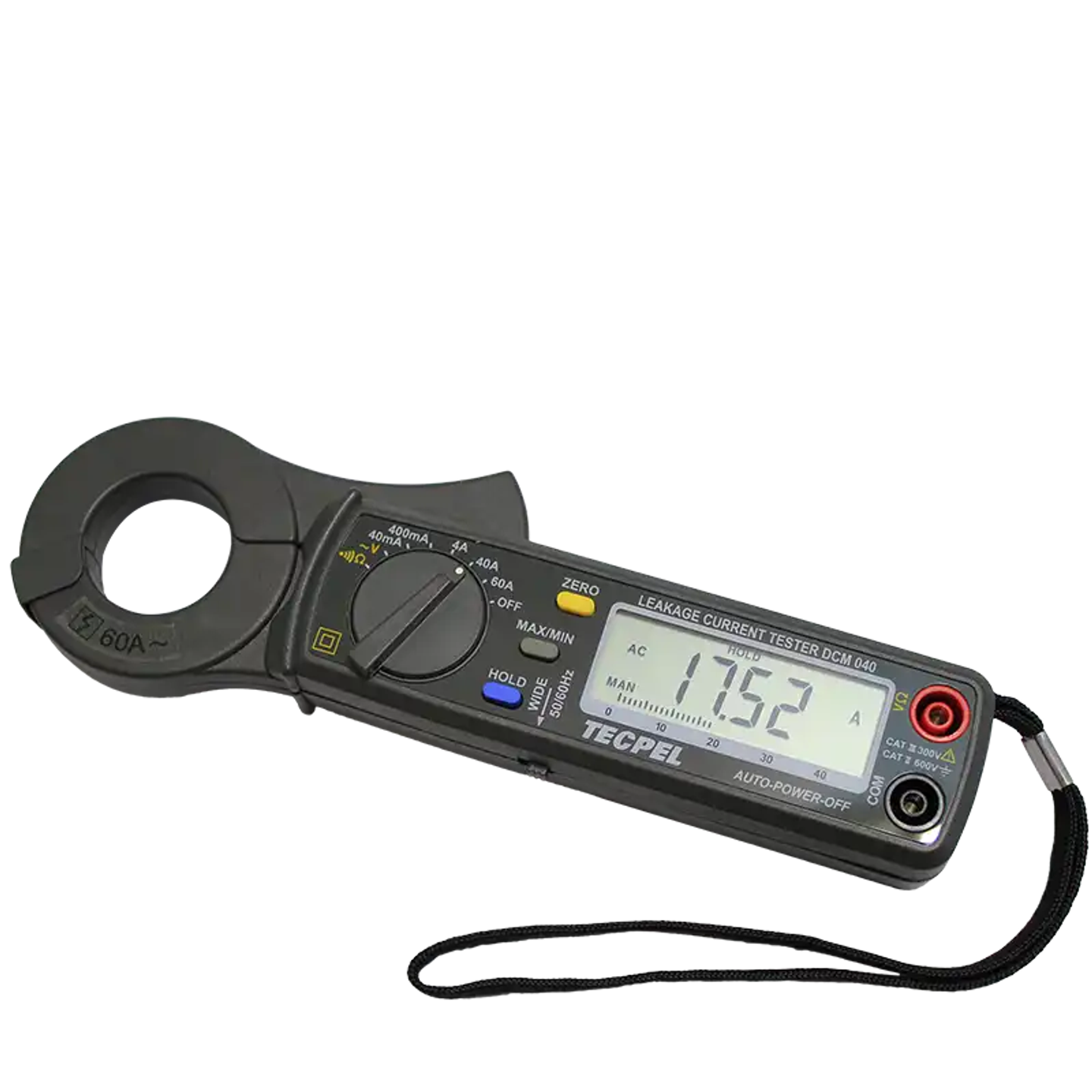

Digital AC Leakage Clamp Meter
Brand
TECPEL
|
Model
DCM-040
|
🇹🇼 Taiwan
The DCM-040 AC clamp meter features the following functions:
- Measures low-level AC current, suitable for leakage current testing
- Continuity test: 20 readings per second
- Low battery indicator: 40 segments
Out of Stock
Views: 100
Description
The DCM-040 Digital AC Leakage Clamp Meter is designed specifically for measuring low-level AC current in power lines. It can accurately detect leakage current between the live and neutral conductors, ensuring the safety and stability of electrical systems. Featuring high sensitivity, this clamp meter is suitable for a wide range of electrical testing applications, making it ideal for servicing electrical equipment as well as household circuit diagnostics.
Specifications
- Jaw OpeningØ30 mm
- AC Current40m/ 400m/ 4/ 40/ 60 A ±(2.0%+5)
- AC Voltage400 V ±(1.5%+2) @40~100KHz
- Resistance40/ 400 Ω ±(1.0%+2)
- Sampling Rate2 times per second
Features
- Continuity TestLess than 40 Ω
- Zero CalibrationYes
- Data HoldYes
- Max/MinYes
- Analog Bar Graph40 segments, updated 20 times per second
- Low Battery IndicatorYes
- Double Insulation Protection○
Attributes
- Operating Temperature-10~50 °C / below 85%RH, non-condensing
- Storage Temperature-20~60 °C / below 75%RH, non-condensing
- Altitude LimitBelow 2,000 m
- Power Supply1.5V AA battery x 2
- Dimensions210 × 62 × 35 mm
- Weight200g (including batteries)
- AccessoriesBatteries x2, test leads, carrying case, instruction manual
