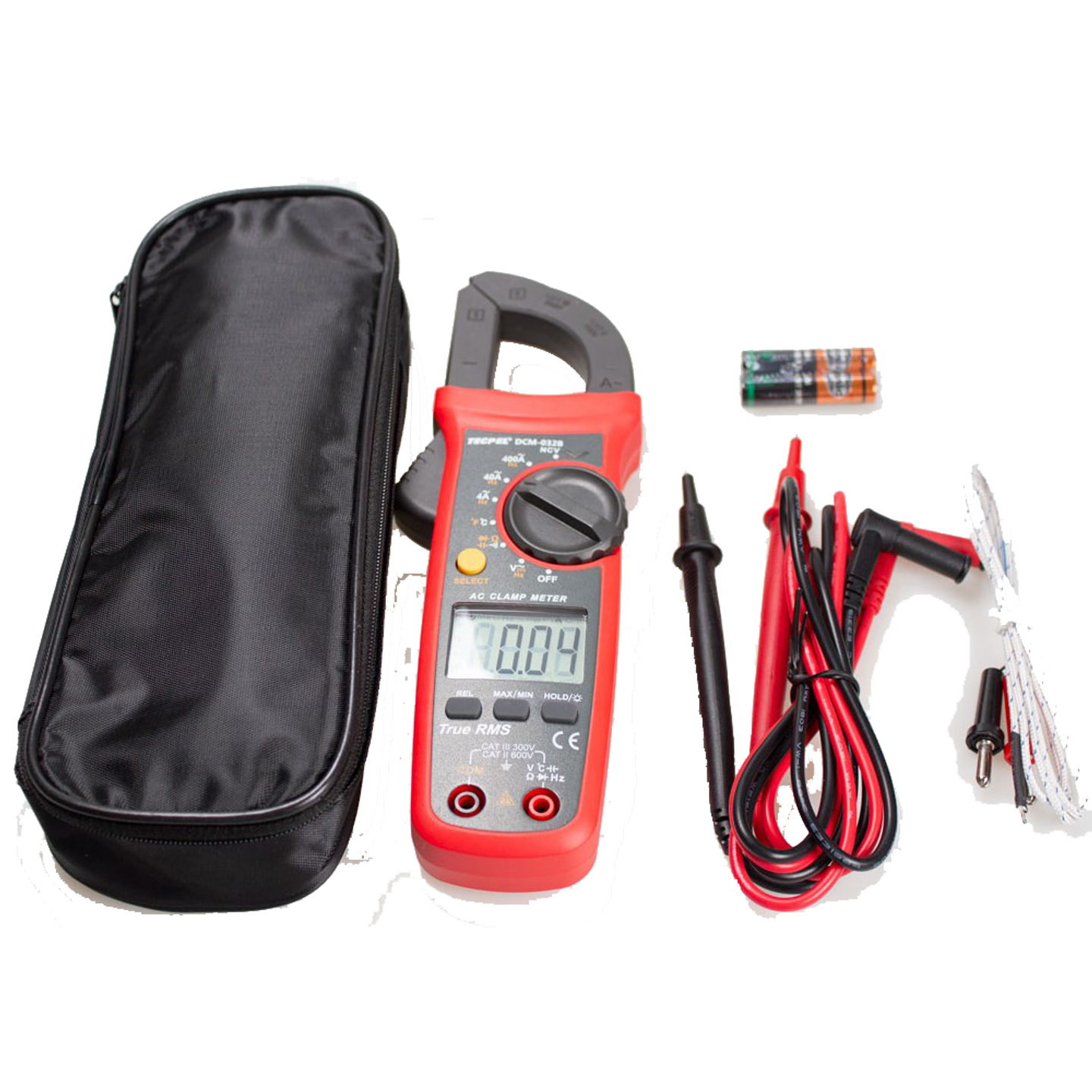

AC Digital Clamp Meter
Brand
TECPEL
|
Model
DCM-032B
|
🇨🇳 China
The DCM-032B clamp meter features:
- Measurement of AC current, DC voltage, and resistance
- AC current measurement accuracy up to 0.001 A
- Diode and continuity testing functions
- Low battery indication for reliable measurements
- High input impedance design to minimize circuit impact
Price
NT$ 735
Out of Stock
Views: 180
Description
The DCM-032B AC Digital Clamp Meter is designed for measuring AC current with high precision, capable of displaying measurements as low as 0.001 A. It also measures DC voltage and resistance, making it suitable for maintenance and testing of various electrical devices.
Specifications
- Display CountsDC: ±(0.8%+1數值) / AC: ±(1%+5數值)
- Jaw OpeningØ28 mm
- AC Current4/ 40/ 400 A
- DC Voltage400m / 4 / 40 / 400 / 600 V
- AC Voltage4 / 40 / 400 / 600 V
- Resistance400/ 4k/ 40k/ 400k/ 4M/ 40M Ω
- Capacitance4n/ 40n/ 400n/ 4μ/ 40μ/ 400μ/ 4m F
- Frequency10~10M Hz
- Temperature Range-40 ~ 1,000°C (-40 ~ 1832°F) ±(2.5%+3)
Features
- Diode Test1mV
- Continuity小於10Ω
- Low Battery Indicator電壓低於 2.6V
- Data Hold10MΩ
- Input Impedance10MΩ
Attributes
- Operating Temperature0 to 40°C / lower than 85 %RH without dew。
- Storage Temperature-20 to 60°C / lower than 75 %RH without dew。
- Altitude LimitLower than 2,000 meters
- Power SupplyDC 1.5V Battery（AAA)x 2
- Dimensions485 x 320 x 385mm
- Weight260g
- AccessoriesTest Lead、 Temperature measuring probe、 Battery 、 Carrying Bag、Manual
