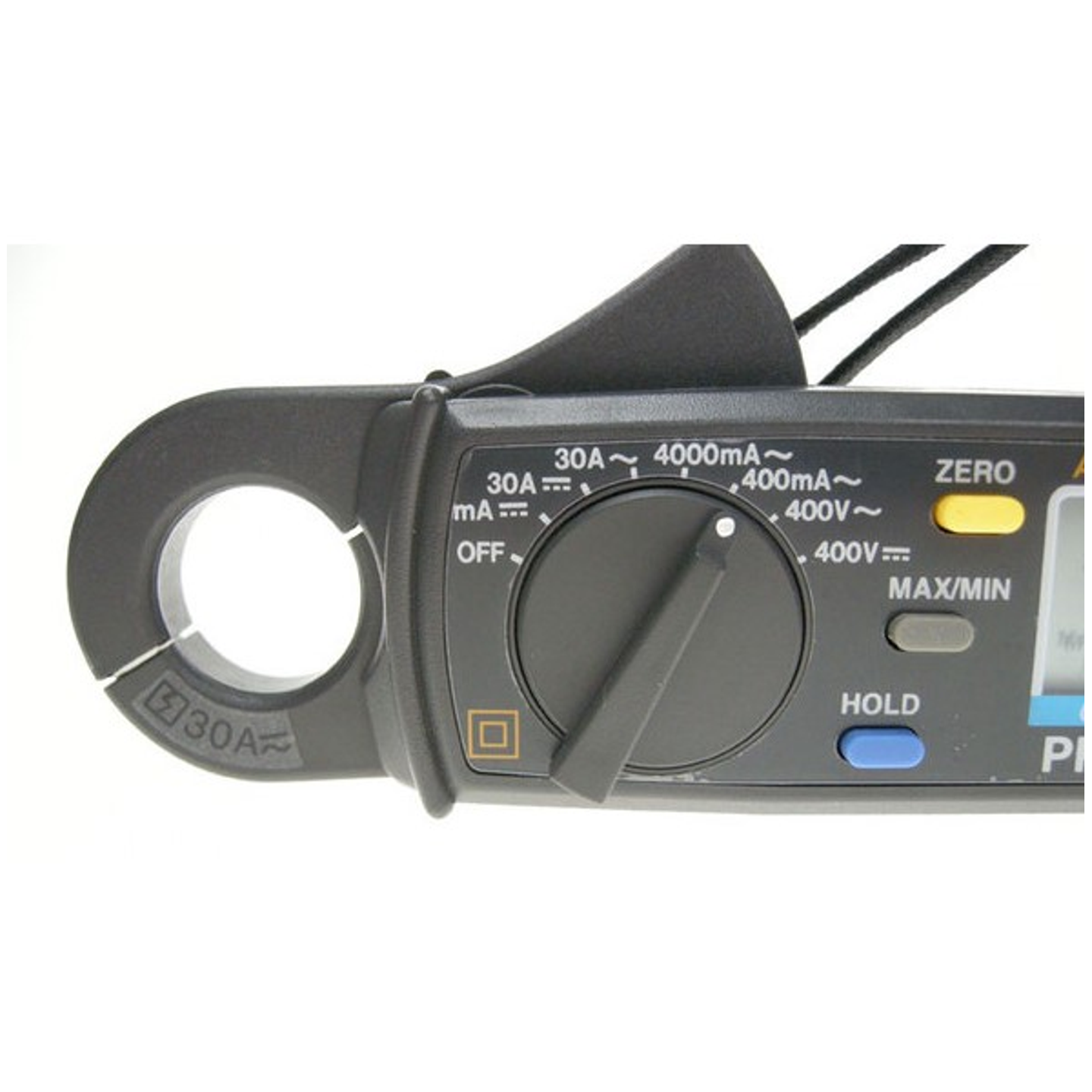

PROVA-11 High Precision Clamp Meter
Brand
PROVA
|
Model
PROVA-11
|
🇹🇼 Taiwan
PROVA-11 is a high performance, accurate and easy to use measuring digital hook meter from TECPEL.
The double-insulated design provides a higher level of safety for the user, reducing possible risks during operation.
The resolution is 1mA for DC and 0.1mA for AC, allowing you to easily read accurate measurement results.
Price
NT$ 6,279
Out of Stock
Views: 207
Description
PROVA-11 s a high performance, accurate and easy to use measuring digital hook meter from TECPEL, designed for measuring AC and DC currents and voltages, made in Taiwan, with guaranteed quality.
It features True RMS AC current and voltage measurements, clear display captions, and an easy-to-read measurement display.
The double-insulated design provides a higher level of safety for the user, reducing possible risks during operation.
The error specification is ±1.5% + 4 for AC and ±1% + 2 for DC, providing excellent reliability.
The resolution is 1mA for DC and 0.1mA for AC, allowing you to easily read accurate measurement results.
TECPEL DCM-011 digital hook meter is your best choice for AC and DC current and voltage measurement, which is not only accurate and reliable but also has high safety and ease of use.
Specifications
- Display Counts3,999 digits
- Jaw OpeningØ23 mm
- AC Current±(1.5% + 5 value) @ 400mA
- DC Current±(2.0% + 3 value) @ smaller than 30A
- DC Voltage±(1.0% + 2 value)
- AC Voltage±(1.5% + 4 value) @ 50/60Hz
- Sampling Rate0.1V
Features
- Measuring Range10MΩ
- True RMSRoHS specification, NEW CE 2014
- Analog Bar Graph更新率 30/秒
- Zero AdjustmentDCA 檔位一鍵歸零
- Max/MinMAX/MIN
- Data HoldHOLD
- Input Impedance10MΩ
- Auto Power Off可用
Attributes
- Operating Temperature-10~50°C / lower than 85%RH without dew。
- Storage Temperature-20~60°C / lower than 75%RH without dew。
- Altitude LimitLower than 1,000 meters
- Power Supply1.5V Battery (AA) x 2
- Dimensions183 × 61.3 × 35.6 mm
- Weight190g
- AccessoriesBattery x2、Test Lead、Carrying Bag、Manual
- Safety RatingCAT III 300V, CAT II 600V
- CertificationRoHS, CE, UL
