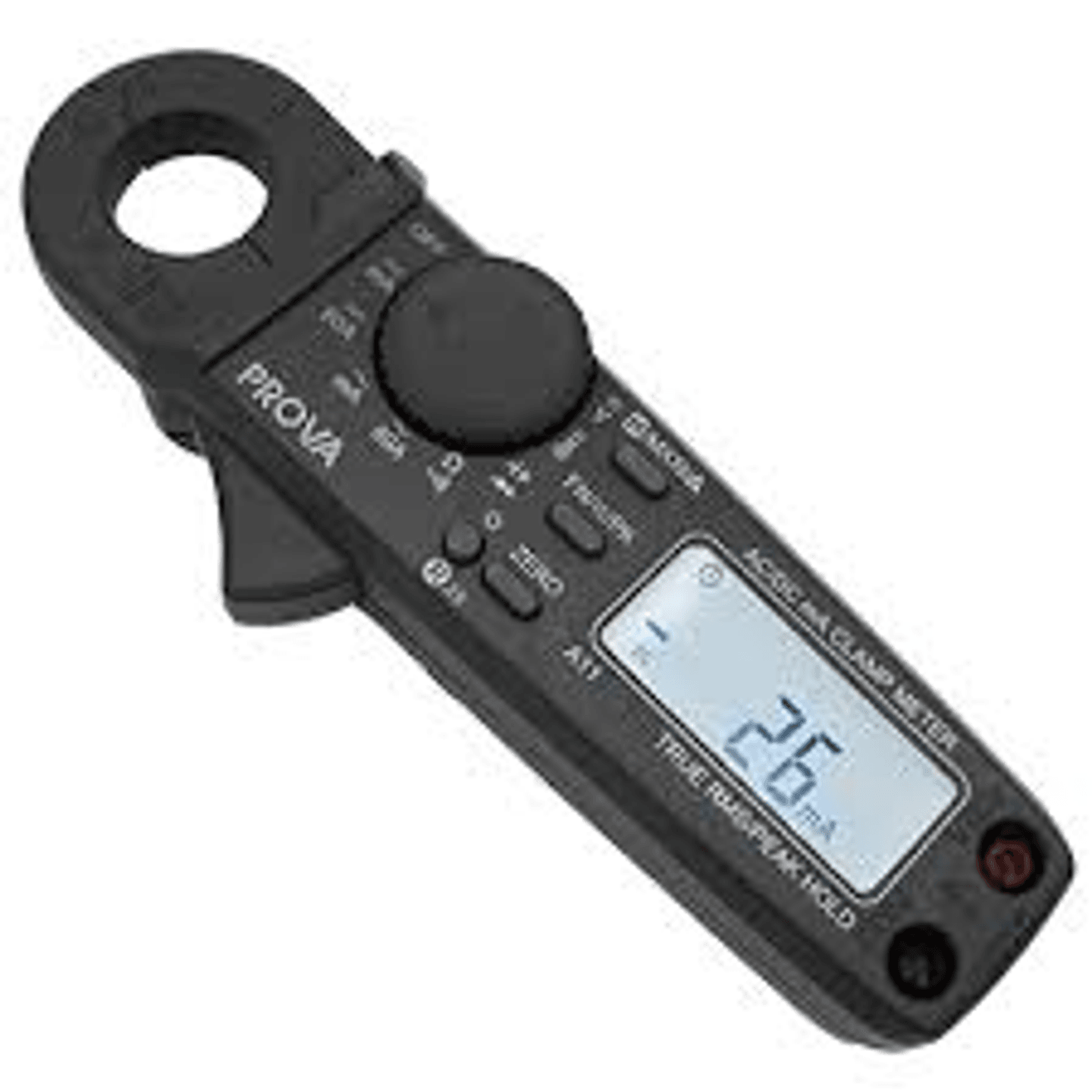

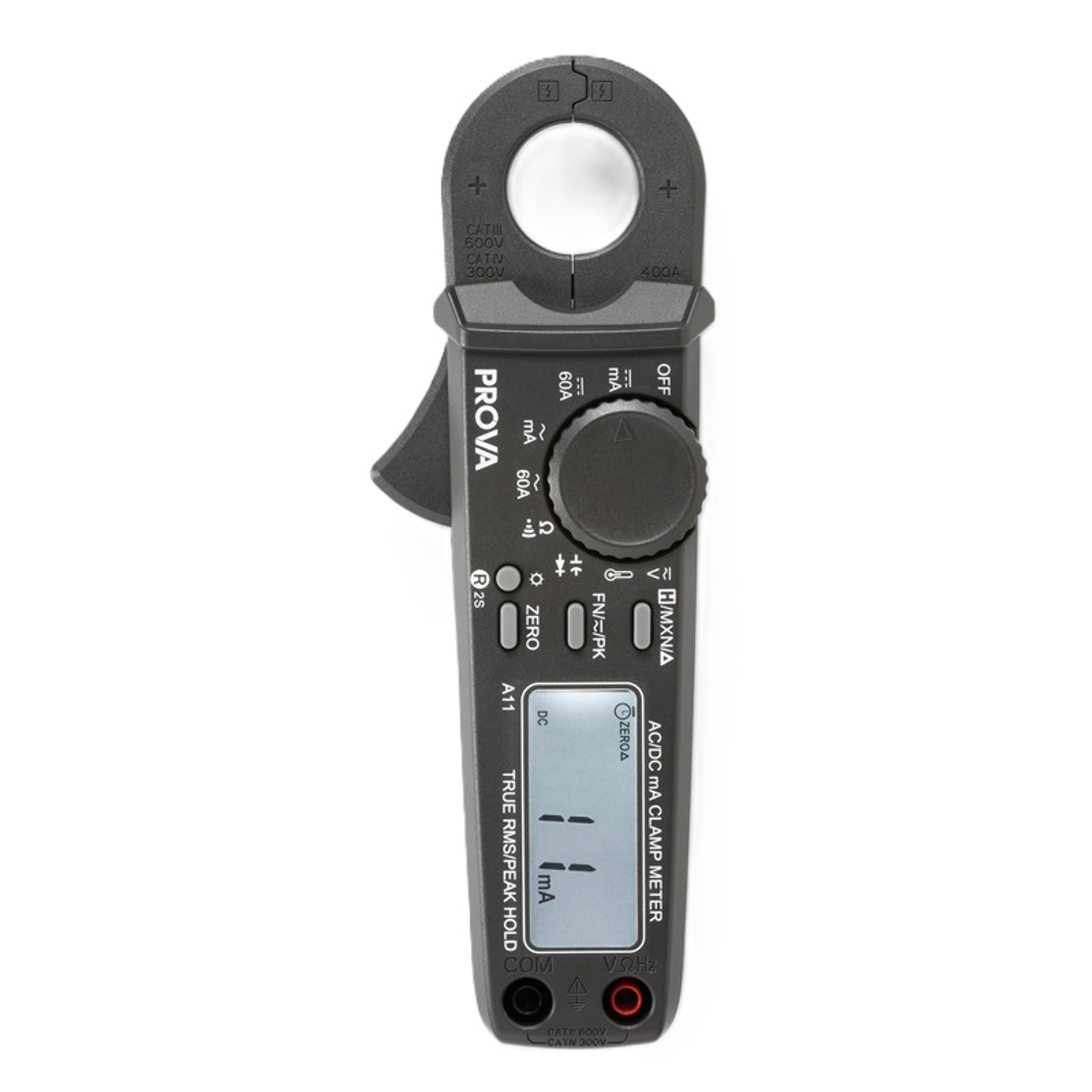

mA AC/DC Clamp Meter
Brand
PROVA
|
Model
PROVA-A11
|
🇹🇼 Taiwan
PROVA-A11 AC/DC clamp meter features high resolution and true RMS (TRMS) measurement capability, enabling precise monitoring of various current variations with a low-pass filter to meet professional power testing requirements.
25mm large jaw design makes it easy to clamp onto conductors, allowing effortless operation even in tight spaces.
Price
NT$ 9,200
Out of Stock
Views: 81
Description
The PROVA-A11 is a mA AC/DC clamp meter designed for precise current and voltage measurements, particularly suitable for internal use. This clamp meter offers various measurement functions including resistance, temperature, and capacitance measurements, catering to a wide range of user needs. Its outstanding design allows users to operate easily in crowded switchboxes or cable areas, ensuring accuracy and convenience in measurements.
Specifications
- Display Digits6000 digits
- DC Current6/30/40/60 A ±(4%+5 counts)
- AC Current600m/6000m/30/60A ±(5%+5 counts)
- DC Voltage60V / 600V ±(1.5%+3 counts)
- AC Voltage60V / 600V ±(1.5%+5 counts)
- Resistance600/6K/60K//600K Ω ±(1.5%+2 counts)
- Temperature Range-40~400°C (-40~752 °F) ±(2%+2 counts)
- Capacitance600n/6u/60u/600u/6000u F ±(2.5%+5uF)
- Sampling Rate2/s
Features
- Continuity test< 30.0 Ω
- Diode0~1.999 V
- Range selectionAuto/Manual
- Maximum/MinimumMAX/MIN
- AverageAVE
- Relative difference△
- Data holdHOLD
- Low-pass filterLPF, 1KHz, -3dB
Attributes
- Operating TemperatureTemperature 0~50 °C, humidity less than 85%RH
- Storage TemperatureTemperature -20~60 °C, humidity less than 75%RH
- Altitude LimitMaximum 2,000 meters
- Power Supply1.5V (No.3 battery)AA x 2
- Power Consumption17mA
- Dimensions191 x 66 x 36 mm
- Weight250g (including battery)
- AccessoriesCarrying bag x 1, User manual x 1, Test leads x 1, K-type thermocouple x 1, Capacitance and K-type thermocouple adapter x 1
