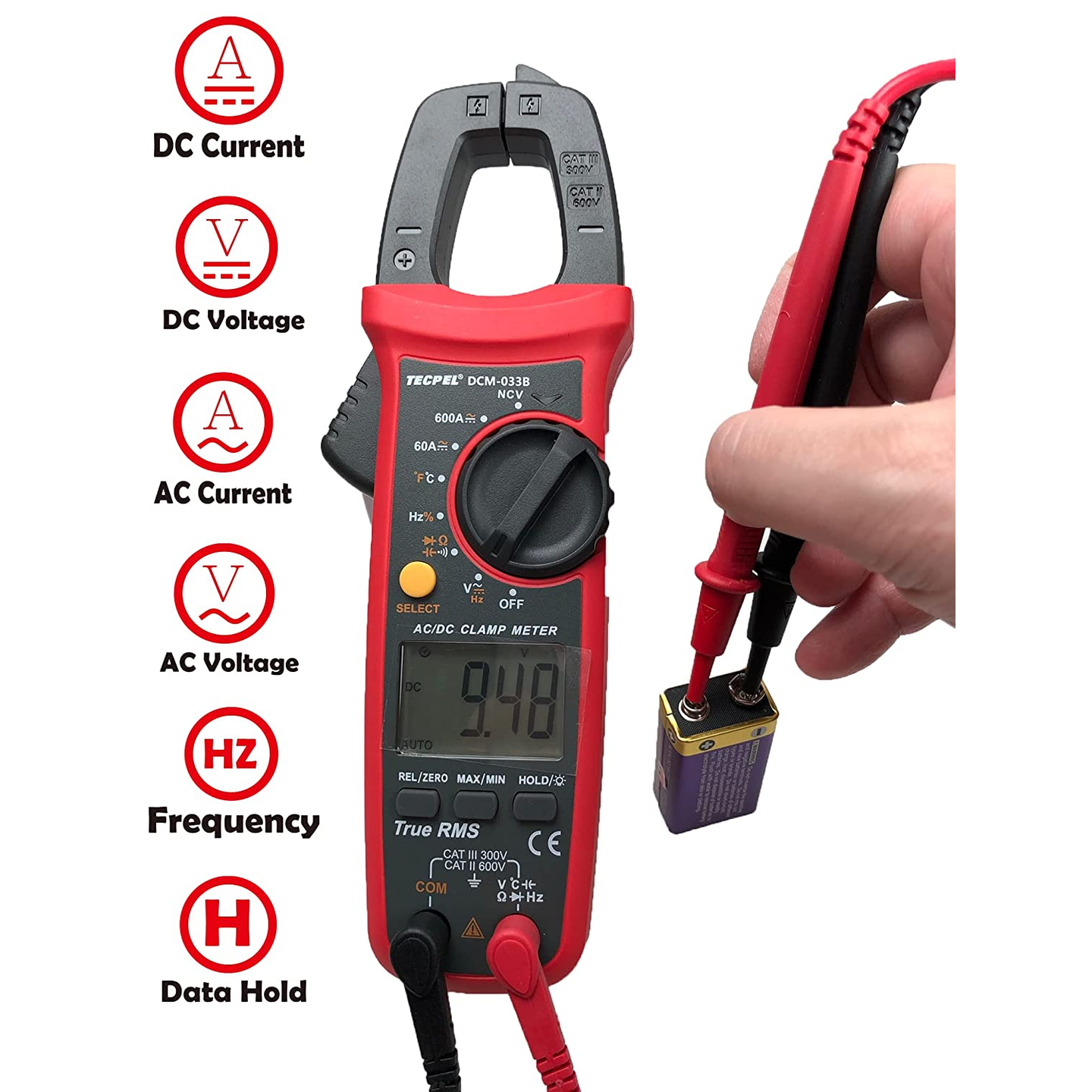

6099-Count Digital DC/AC Clamp Meter for Current Measurement
Brand
TECPEL
|
Model
DCM-033B
|
🇨🇳 China
DCM-033B 6099 digital AC/DC clamp meter features high resolution and excellent measurement accuracy. It can display as low as 0.01A, allowing you to precisely monitor current changes, making it an ideal tool for professional electrical testing.
Supports measurements of AC/DC current, voltage, and resistance. With diode and continuity test functions, it meets everyday maintenance and troubleshooting needs.
Price
NT$ 1,418
Out of Stock
Views: 102
Description
DCM-033B 6099 digital DC/AC clamp meter features high resolution and measurement accuracy, with a minimum display of 0.01A.
Built-in NCV non-contact voltage sensing technology improves inspection efficiency and safety. The high-input-impedance design ensures more stable and reliable measurement results, making it suitable for electricians, engineers, and equipment maintenance personnel.
This clamp meter is suitable for use by electricians, engineers, and related professionals. It can effectively measure important electrical data such as AC and DC current, voltage, and resistance, while providing stable and reliable measurement results.
Specifications
- Accuracy6,099 counts
- Jaw OpeningØ28 mm
- AC Current60 / 600 A ±(2.0%+5)
- DC Current60 / 600 A ±(2.0%+5)
- DC Voltage600m / 6 / 60 / 600 V ±(0.5%+2)
- AC Voltage6 / 60 / 600 V ±(0.8%+5)
- Resistance600/ 6k/ 60k/ 600k/ 6M/ 60M Ω ±(0.8%+2)
- Capacitance60n/ 600n/ 6μ/ 60μ/ 600μ/ 6m/ 60m F ±(4%+5)
- Measurement Range-40 ~ 1,000 °C ±(2.5%+3)
- Frequency10 ~ 10M Hz 0.1% + 4)
- ResolutionDC: 0.1mV / AC: 0.001V
Features
- Diode Test1mV
- Continuity TestLess than 10Ω
- Low Battery IndicationBelow 2.6V
- NCV Electric Field DetectionEFHi and EFLo two levels
- Input Impedance10MΩ
Attributes
- Operating Temperature0 to 40°C / lower than 85 %RH without dew。
- Storage Temperature-20 to 60°C / lower than 75 %RH without dew。
- Elevation LimitationLower than 2,000 meters
- Power SupplyDC 1.5V (AAA) x 2
- Dimensions485 x 320 x 385mm
- Weight260g
- AccessoryTest Lead、 Temperature measuring probe、 Battery 、 Carrying Bag、Manual
