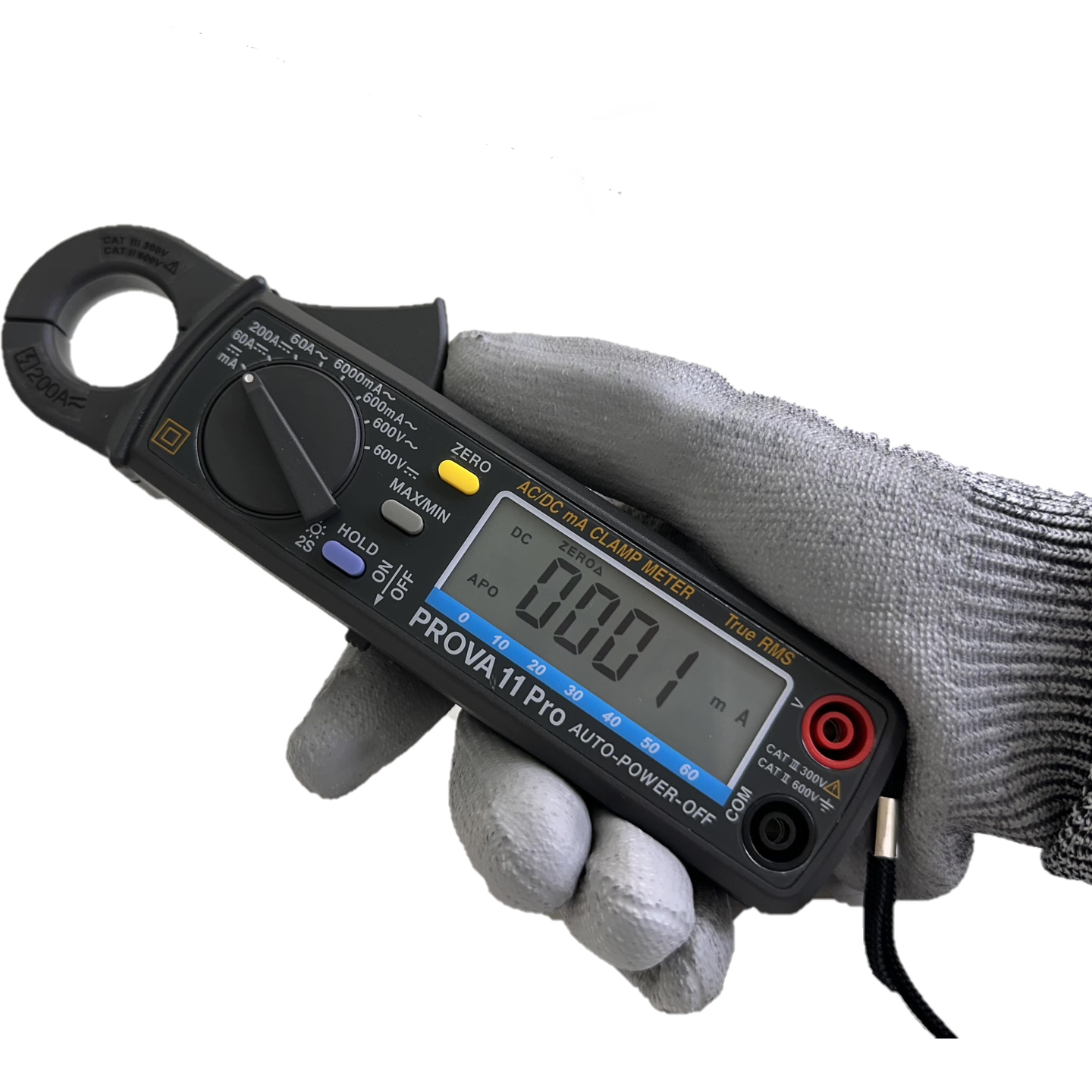

PROVA11 Pro High-Precision Current Clamp Meter
Brand
PROVA
|
Model
PROVA-11-Pro
|
🇹🇼 Taiwan
PROVA-11 Pro is a high-performance, accurate, and easy-to-use digital clamp meter.
Its double-insulated design provides greater safety for the user and reduces potential risks during operation.
DC current resolution is 1mA, and AC current resolution is down to 0.1mA, allowing you to easily read precise measurement results.
Out of Stock
Views: 86
Description
PROVA11 Pro is a high-performance, accurate, and easy-to-use digital clamp meter. It complies with RoHS and is manufactured in Taiwan with assured quality.
It features True RMS AC current and voltage measurement, a clear display with easy-to-read readings.
The double-insulated design provides greater safety for the user and reduces potential risks during operation.
DC current resolution is 1mA, and AC current resolution is down to 0.1mA, allowing you to easily read precise measurement results.
This digital clamp meter is the ideal choice for measuring AC and DC current and voltage, offering not only accuracy and reliability but also enhanced safety and ease of use.
Specifications
- Display Count6,000 counts
- Jaw OpeningØ23 mm
- AC Current600m / 6000m / 60 A ±(2.0%+5 digits)
- DC Current6 / 60 / 200 A ±(2.2%+3 digits)
- DC Voltage600V ±(0.5%+2 digits)
- AC Voltage600V ±(1.0%+2 digits)
- Sampling Rate3/sec
Features
- Measurement RangeManual
- True RMSAC current/voltage True RMS
- Analog BarRefresh rate 30/sec
- Zero CalibrationOne-touch zeroing for DCA range
- Max/Min ValuesMAX/MIN
- Reading HoldHOLD
- BacklightLCD backlight
- Input Impedance10MΩ
- Auto Power Off15 minutes
Attributes
- Operating Temperature-10~50 °C / below 85%RH, non-condensing
- Storage Temperature-20~60 °C / below 75%RH, non-condensing
- Altitude Limitbelow 2,000 meters
- Power Supply2 x 1.5V AA batteries
- Dimensions183 × 61.3 × 35.6 mm
- Weight190g
- Accessories2 batteries, test leads, carrying case, user manual
- Safety RatingCAT III 300V, CAT II 600V
- CertificationsRoHS, CE, IEC 61010
