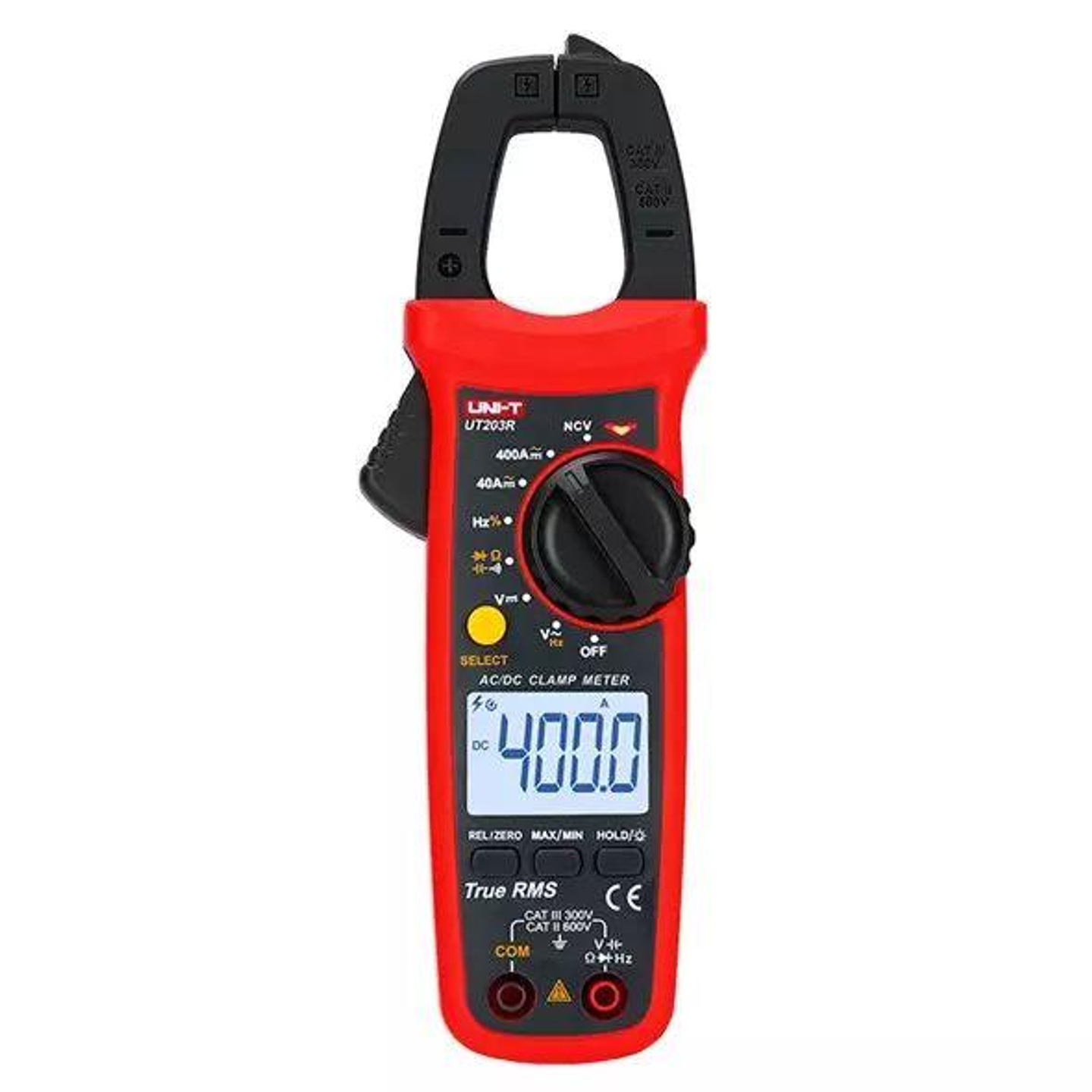

AC/DC Digital Clamp Meter
Brand
UNI-T
|
Model
UT-203R
|
🇨🇳 China
UT-203R Digital clamp meters are designed according to EN61010-2010 CAT II 600V/CAT III 300V, featuring overload protection, high reliability, high safety and high accuracy.
Price
NT$ 1,360
Out of Stock
Views: 0
Description
The UT203R/UT204R are portable true RMS AC/DC clamp meters with automatic range.
They are designed according to EN61010-1 CAT II 600V/CAT III 300V safety standards,
and come with full-function protection, which ensures users have a safe and reliable measurement experience.
Aside from basic measurement functions, they also have high precision current scale and high voltage frequency measurement extension.
Specifications
- Display counts6,099
- Jaw OpeningØ28 mm
- AC Current40.00 /400.0 A ±(2%+5)
- DC Current40.00 /400.0 A ±(2%+5)
- DC Voltage400.0mV 4.000V 40.00V 400.0V 600V
- AC Voltage4.000V 40.00V 400.0V 600V ±(0.8%+5)
- Resistance400.0Ω 4.000kΩ 40.00kΩ 400.0kΩ 4.000MΩ 40.00MΩ ±(0.8%+2)
- Capacitance40.00nF 400.0nF 4.000uF 40.00uF 400.0uF 4.000mF 40.00mF ±(4.0%+5)
- Frequency10Hz～10MHz 0.01Hz～0.01MHz ±(0.1%+4)
- Temperature Measurement (UT204R Only)-40 to 1,832 °F (-40 to 1,000 °C) ±(2.0%+5)
- Diode Test6.000 V The open circuit voltage is about 4V
Features
- NCVEFLo / EFHI
- Input Impedance10MΩ
- Safety RatingUL STD 61010-1, 61010-2-032, 61010-2-033; CSA STD C22.2 No. 61010-1, 61010-2-032, 61010-2-033.
Attributes
- Operating Temperature0 to 40°C / lower than 70%RH without dew。
- Storage Temperature10 to 50 °C / lower than 50%RH without dew。
- Elevation LimitationLower than 2,000 meters
- Power SupplyAAA 1.5 Battery x 2
- Dimensions215 × 63.5 × 36 mm
- Weight235g
- AccessoryTest Lead、 Temperature Sensor、 Battery 、Carrying Bag、Manual
