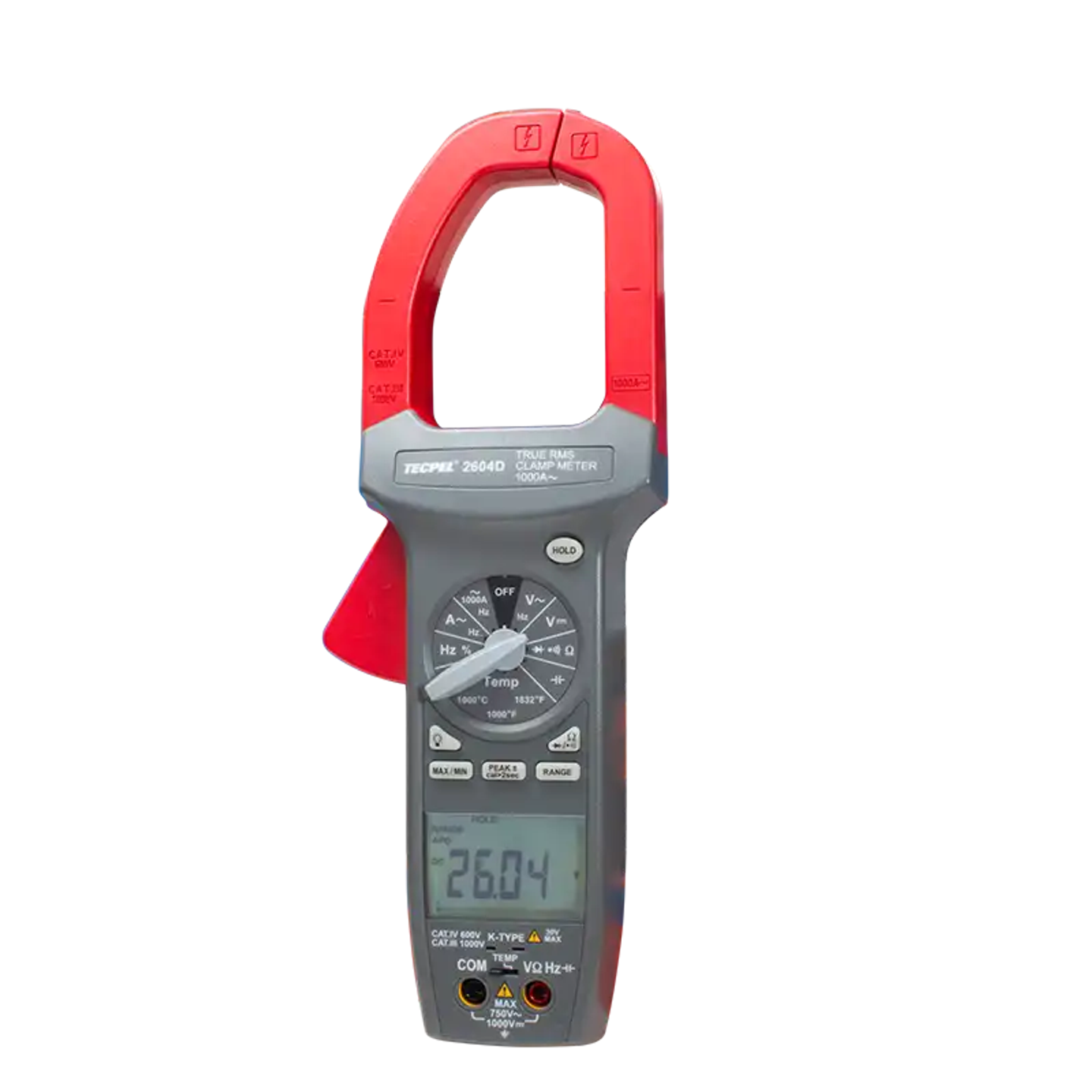

1000A digital AC current clamp
Brand
TECPEL
|
Model
DCM-2604D
|
🇹🇼 Taiwan
• Measures AC currents up to 1000A
• Includes AC and DC voltage measurement
• Measures resistance and capacitance
• Supports diode testing
• Peak hold function
• Auto power-off design for energy saving
• Max/Min value recording
• Safety rating complies with EN61010 standards
• Suitable for engineers and educational use
Price
NT$ 2,200
Out of Stock
Views: 5
Description
The DCM-2604D digital AC current clamp is designed to measure AC currents up to 1000A, making it ideal for electrical system troubleshooting and monitoring factory cable currents. This clamp meter not only accurately measures current but also features diode testing and capacitance measurement functions, catering to the needs of engineers and educational institutions for easy access to various electrical parameters.
Specifications
- 精確度6,600 位數
- 鉗口開度Ø51 mm
- 交流電流66 / 660 A
- 交流電壓6.6 / 66 / 660 / 750 V
- 直流電壓6.6 / 66 / 660 / 1,000 V
- 電阻660 / 6.6K / 66K / 660K / 6.6M / 66M Ω
- 二極體測試0.001 ~ 2.000V
- 電容6.6n / 66n / 660n / 6.6u / 66u / 660u / 6.6m F
- 頻率66 / 660 / 6.6K / 66K / 660K / 1M Hz
- 佔空比5 ~ 95%
- 工作溫度-35 ~ 1,000°C(-30 ~ 1,832°F)
Features
- 頻率數字每秒 2.8次 、 條圖每秒 28次
- 超標指示OL 或 -OL
- 峰值鎖定(PEAK)✓
- 自動關機約 30分鐘
- 導通測試✓
- 數值保持✓
- 最大/最小值✓
- 安全等級EN61010-1, EN 61010-2-032
- 量測類別CAT IV 600V, CAT III 1000V, CE approved
Attributes
- Operating Temperature0~50°C / lower than 70%RH without dew。
- Storage Temperature-20~60°C / lower than 80%RH without dew。
- Elevation LimitationLower than 2,000 meters
- Power Supply9V Battery (NEDA 1604, IEC 6F22, JIS 006P)
- Dimensions279 x 103 x 53 mm
- Weight510g / 18 OZ (Battery including)
- AccessoryTest Lead; temperature; Carrying Bag; Manual
