DC 2000A AC/DC Clamp Meter
Brand
TECPEL
|
Model
DCM-2608D
|
🇹🇼 Taiwan
# Digital Clamp Meter for High Current
(Digital Clamp Meter)[https://test.trh.com.tw/img/products/image_1775716462813_sfwi2v_320.webp]

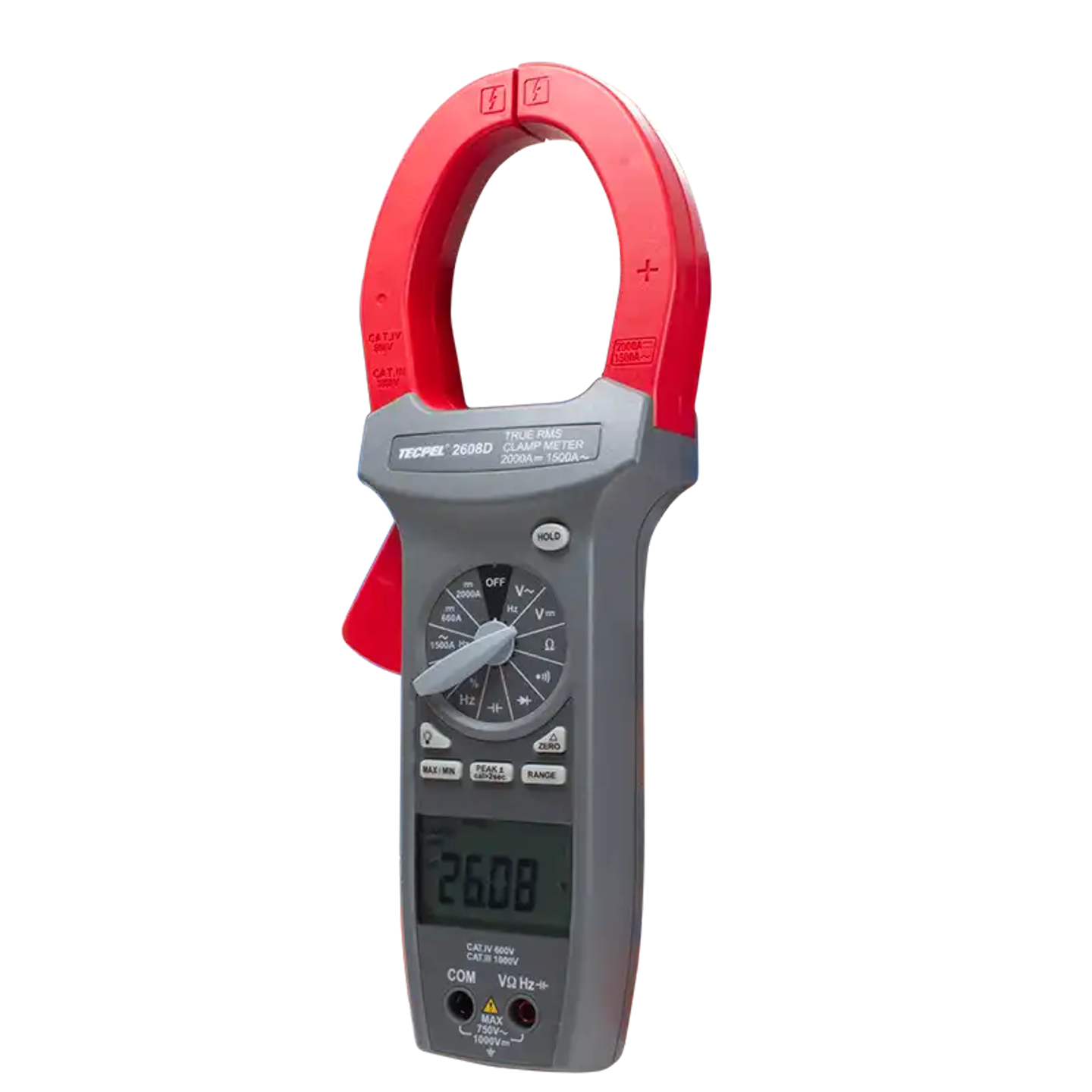

The DCM-2608D AC/DC Clamp Meter is a clamp meter designed for measuring high currents. It can measure 1500A AC and 2000A DC, and features diode and capacitance measurement functions.
Downloads
Price
NT$ 3,990
Out of Stock
Views: 121
Description
The DCM-2608D digital AC/DC clamp meter is a clamp meter specially designed for high-current measurement, capable of accurately measuring AC current up to 1500A and DC current up to 2000A.
In addition to basic current measurement functions, this device also features diode testing and capacitance measurement, making it highly suitable for power system maintenance and current monitoring in factories, meeting the needs of engineers and educational instruction in schools.
Specifications
- Display Counts6,600 counts
- Jaw DiameterØ75 mm
- AC Current (True RMS)660 / 1500 A
- DC Current660 / 2,000 A
- AC Voltage (True RMS)660m / 6.6 / 66 / 660 / 750 V
- DC Voltage660m / 6.6 / 66 / 660 / 1,000 V
- Resistance660 / 6.6K / 66K / 660K / 6.6M / 66M Ω
- Diode Test0.001 ~ 2.000V
- Capacitance6.6n / 66n / 660n / 6.6u / 66u / 660u / 6.6m F
- Frequency66 / 660 / 6.6K / 66K / 660K / 1M Hz
- Duty Cycle5 ~ 95%
Features
- FrequencyDigits per second 2.8, bar graph per second 28
- Overrange IndicationOL or -OL
- Peak Hold (PEAK)✓
- Auto Power OffApprox. 30 minutes
- Continuity Test✓
- Data Hold✓
- Max/Min✓
- Safety StandardEN61010-1, EN 61010-2-032
- Measurement CategoryCAT IV 600V, CAT III 1000V, CE approved
Attributes
- Operating Temperature0~50°C / Below 70%RH non-condensing
- Storage Temperature-20~60°C / Below 80%RH non-condensing
- Altitude LimitationBelow 2,000 m
- Power Supply Specifications9V battery (NEDA 1604, IEC 6F22, JIS 006P)
- Dimensions281 x 108 x 53 mm
- Weight570g / 20.1 OZ (including battery)
- AccessoriesTest leads, carrying case, instruction manual
