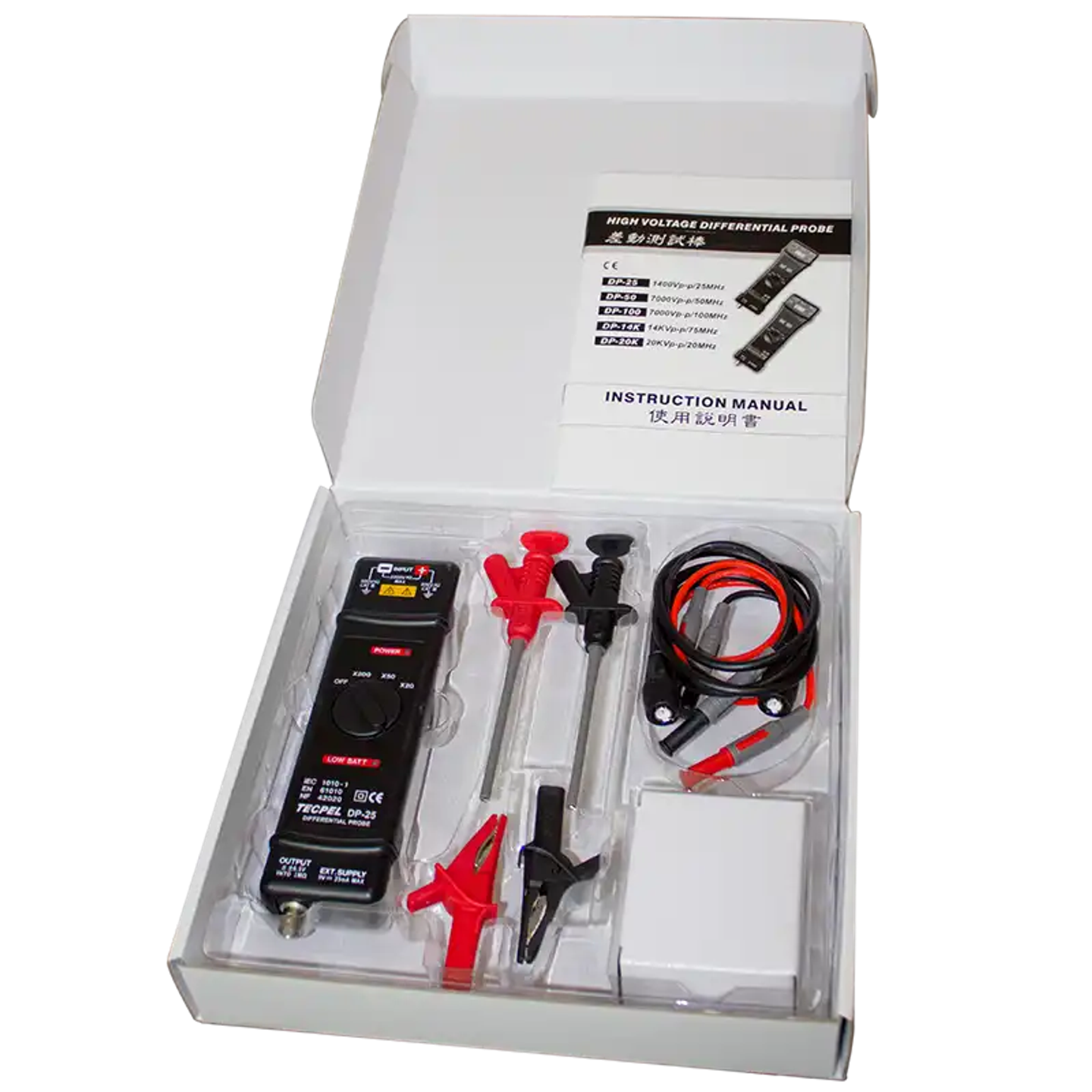

25MHz Oscilloscope Differential Probe
Brand
TECPEL
|
Model
DP-25
|
🇹🇼 Taiwan
DP-25 Oscilloscope 25MHz measuring line
Out of Stock
Views: 0
Description
25MHz oscilloscope differential test bar, adopts CATIII 1,000V safety standard, and can be used with oscilloscopes of various brands.
DP-25 ( 1.0 KVp-p / 25M economical type )
The first separate design (patented for 15 years).
3-stage attenuation switch, more convenient to use.
CATⅢ1000V safety approval.
The maximum measurement is 1000Vp-p, which can almost meet most electronic and electrical operations.
It can be matched with any brand of oscilloscope (analog or digital), making the oscilloscope as convenient as an ammeter for measurement without considering the grounding problem, let alone the offset (OFFSET) problem.
The powerful voltage regulator circuit makes the power input can still work generally between 5V~14V. When the power supply is less than 5V, the output circuit will automatically shut down to ensure that as long as the output is OK.
Super special price models, value for money, welcome to contact our company's domestic sales department.
Specifications
- Measuring RangeDifferential Voltage DC + AC peak: 1000 Vp-p
- IN voltage1000V(DC + AC peak) 或 350Vrms
- Resistance240Vrms
- CMRR60 Hz: ＞ 80 dB ; 100 Hz: ＞ 60 dB ; 1 MHz: ＞ 50 dB
- Sound Level≦ 1.0m Vrms
- Attenuationx20, x50, x200
- Common Mode VoltageDC + AC peak: 240 Vrms
- Attenuation RatiosX20, X50, X200
- Maximum Operation Voltage≦ 50 V at X20, ≦ 125 V at X50, ≦ 500 V at X200
- Input Impedance4 MΩ // 1.2 PF
- Output Voltage≦ ± 6.5 V
- Power SupplyExternal 6V ~ 9V DC
- Accuracy≦ ± 2%
- Bandwidth25 MHz
- AC AdapterADP-110 V or ADP-220 V
- BNC Plug CableBP-250: BNC Plug to BNC Plug; 50 Ω Resistance, RG58C UL, Length 100 cm.
- Silicone WireBP-356N: Banana Plug to Banana Plug, UL 6 KV, 18 AWG, Length 60 cm (Red x 1 pc, Black x 1 pc)
- IC ClipBP-256A: IC Clip, UL 1000 V CAT III (Red x 1 pc, Black x 1 pc)
- Alligator ClipBP-276N: Alligator Clip, UL 1000 V CAT II, 10 A (Red x 1 pc, Black x 1 pc)
Features
- Switchable Attenuationyes
- Over Range Indicateyes
- VersatilityA comprehensive range of accessories to meet various testing needs
- DurabilityMade from high-quality materials for long-lasting use
- Safety RatingConforms to various safety standards, providing reliable connections
- PortabilityLightweight design for easy transport and use
Attributes
- Operating TemperatureTemperature 0 ~ 50°C, Humidity below 70%RH
- Storage TemperatureTemperature -20 ~ 60°C, Humidity below 80%RH
- Dimensions195 x 55 x 30 mm
- WeightApprox. 250g
- AccessoryBNC Plug Cable 100 cm, Silicone Wire 60 cm
- Power Adapter115V: SP-115, 230V: SP-230
- ColorsAvailable in red and black
