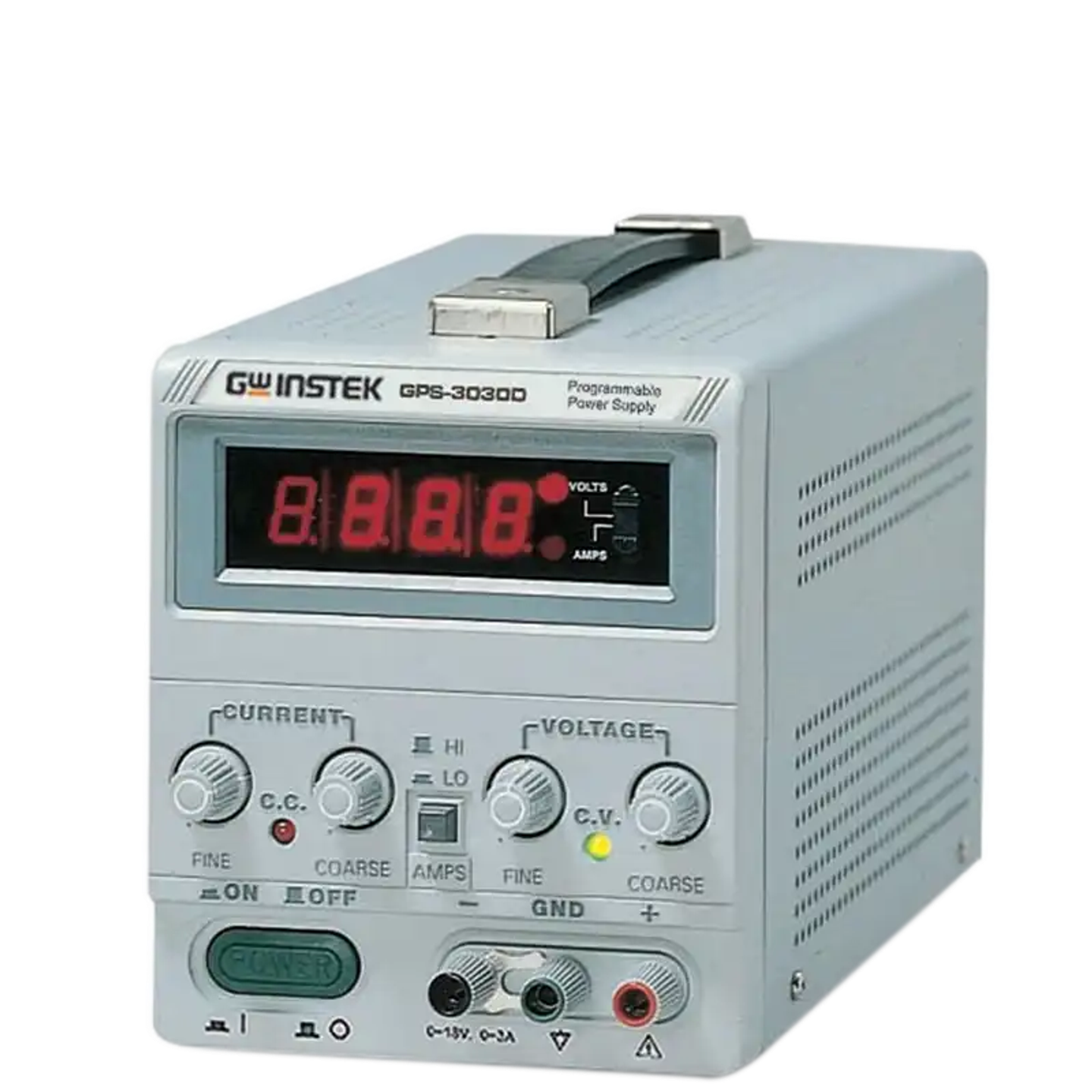

32V 3A DC Power Supply
Brand
GWINSTEK
|
Model
GPS-3030D
|
🇨🇳 China
GPS-3030D Single-channel power supply with 30V/3A output, light, thin, short, easy to carry, and moderately priced. It is an ideal choice for occasions requiring low rate of change.
| Model | Meter Type | Output Watts (W) | Output Volts (V) | Output Amperes (A) | Weight (kg) |
|-------------|------------|-------------------|------------------|--------------------|-------------|
| GPS-1850 | Analog | 90W | 0 ~ 18 | 0 ~ 5 | 5.5 |
| GPS-3030 | Analog | 90W | 0 ~ 30 | 0 ~ 3 | 5 |
| GPS-6010 | Analog | 60W | 0 ~ 60 | 0 ~ 1 | 4 |
| GPS-1830D | Digital | 54W | 0 ~ 18 | 0 ~ 3 | 4 |
| GPS-1850D | Digital | 90W | 0 ~ 18 | 0 ~ 5 | 5 |
| GPS-3030D | Digital | 90W | 0 ~ 30 | 0 ~ 3 | 5 |
| GPS-3030DD | Digital | 90W | 0 ~ 30 | 0 ~ 3 | 5 |
Out of Stock
Views: 0
Description
GPS series is a single-channel output, 90W linear DC power supply, overload and polarity reverse protection, can protect the power supply and load from accidental damage.
The GPS Series is a single output, 54W to 90W, linear DC power supply. The GPS range includes analog and digital display meters with varying power outputs. The GPS Series features overload and reverse polarity protection as well as high regulation and low ripple/noise (remaining at 0.01% and < 1mVrms respectively). Continuous or dynamic internal load selection is suitable for applications such as pulsed current. The remote control terminal can be programmed and operated through external devices.
Specifications
- CH1 Output Range0~30V/0~3A
- InterfaceIndependent output
- Constant Voltage Regulation Rate≦0.01%+3mV
- Voltage Load Regulation Rate≦0.01% + 3mV (≦3A)
- Output Voltage≦3mArms
- Current Limit Regulation Rate≦0.2% + 3mA
- Current Load Regulation Rate≦0.2% + 3mA
Features
- ChannelsSingle channel
- Output modeConstant voltage and current limit mode
- Output CharacteristicsLow ripple and low noise
- Protective FunctionOverload and polarity reversal protection function
- Warning FunctionCC and CV lights are always on
Attributes
- Operating Temperature0~40 °C / lower than 80%RH without dew
- Storage Temperature-10~70 °C / lower than 70%RH without dew
- Elevation LimitationLower than 1,000 meters
- Header Display3 1/2 digits 0.5“ LED Display
- Header Accuracy±( 0.5% of rdg + 2 digits )
- Power SupplyAC 100V/120V/220V/240V ±10%, 50/60Hz
- Dimensions128(W) x 145(H) x 285(D)mm
- Weight5 kg
- AccessoryPower Cable、Test Lead
