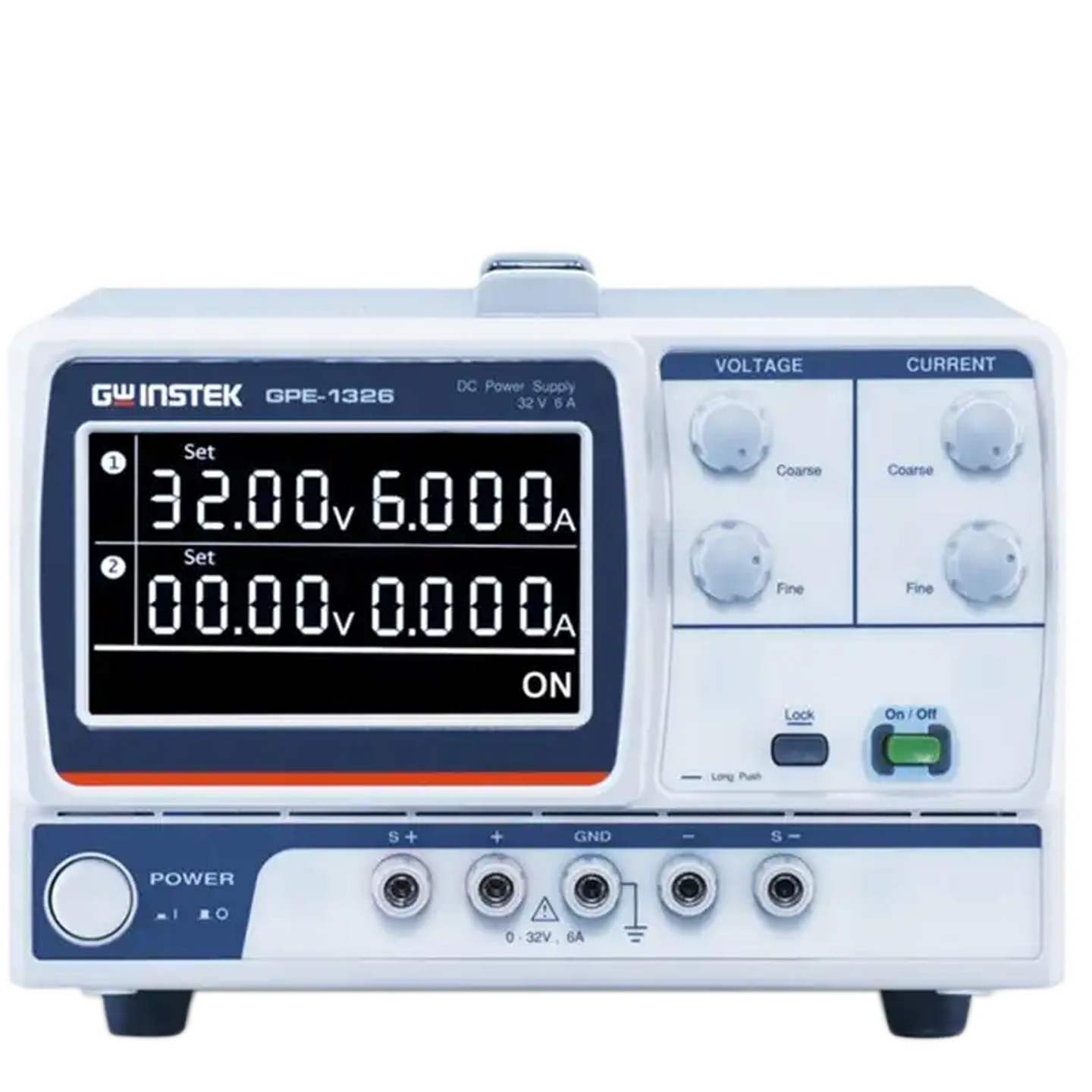

32V/6A DC Power Supply
Brand
GWINSTEK
|
Model
GPE-1326
• Single-channel DC power supply with a maximum output of 32V/6A
• Setting and readback resolution of 10mV/1mA
• Equipped with On/Off switch for convenient operation
• Easy external control function on the rear panel
• Provides voltage/current setting and readback parameter viewing
• Features panel lock function for setting security
• Intelligent temperature-controlled fan effectively reduces noise
Out of Stock
Views: 69
Description
The GPE-1326 DC Power Supply is a high-performance product in the GPE series by GW Instek, designed for the electronics industry and research laboratories. It features a large LCD display, high measurement resolution, convenient external control functions, and an intelligent temperature-controlled fan that effectively reduces operational noise, ensuring stable operation over extended periods. This power supply has a maximum output voltage of 32V and a maximum current of 6A, suitable for various electronic experiments and applications.
Specifications
- Output Voltage0~32V / 0~6A
- Output Current獨立輸出
- Voltage Limit Regulation Rate≦0.01%+3mV
- Load Regulation≦0.01% + 3mV (額定電流≦3A) ; ≦0.01% + 5mV (額定電流≦10A) ; ≦0.02% + 5mV (額定電流≧10A)
- Current Limit Regulation Rate≦3mArms
- Voltage Ripple≦0.2% + 3mA
- Current Ripple≦3mArms
Features
- Channels單通道
- Independent Output Switch10mV / 1mA (設定與回讀)
- ResolutionOn/ Off開關
- External Control後面板具簡易外部控制功能
- Parameter Readback具電壓/電流設定及回讀參數檢視功能
- Overload Protection具面板鎖功能、智慧型溫控風扇, 有效降低運轉噪音
- Other Functions具面板鎖功能、智慧型溫控風扇，有效降低運轉噪音
Attributes
- Operating Temperature0~40°C / lower than 70%RH without dew
- Storage Temperature-10~60 °C / lower than 80%RH without dew
- Altitude LimitLower than 1,000 meters
- Display4.3 " LCD Display
- Power SupplyVoltage :100mV / Current :10mA
- DimensionsVoltage ±(0.1% of reading +30mV) / Current ±(0.3% of reading +6mA)
- WeightAC100V/120V/220V±10%; 230V(+10%~-6%); 50/60Hz
- Accessories210(W) x 155(H) x 306(D) mm
