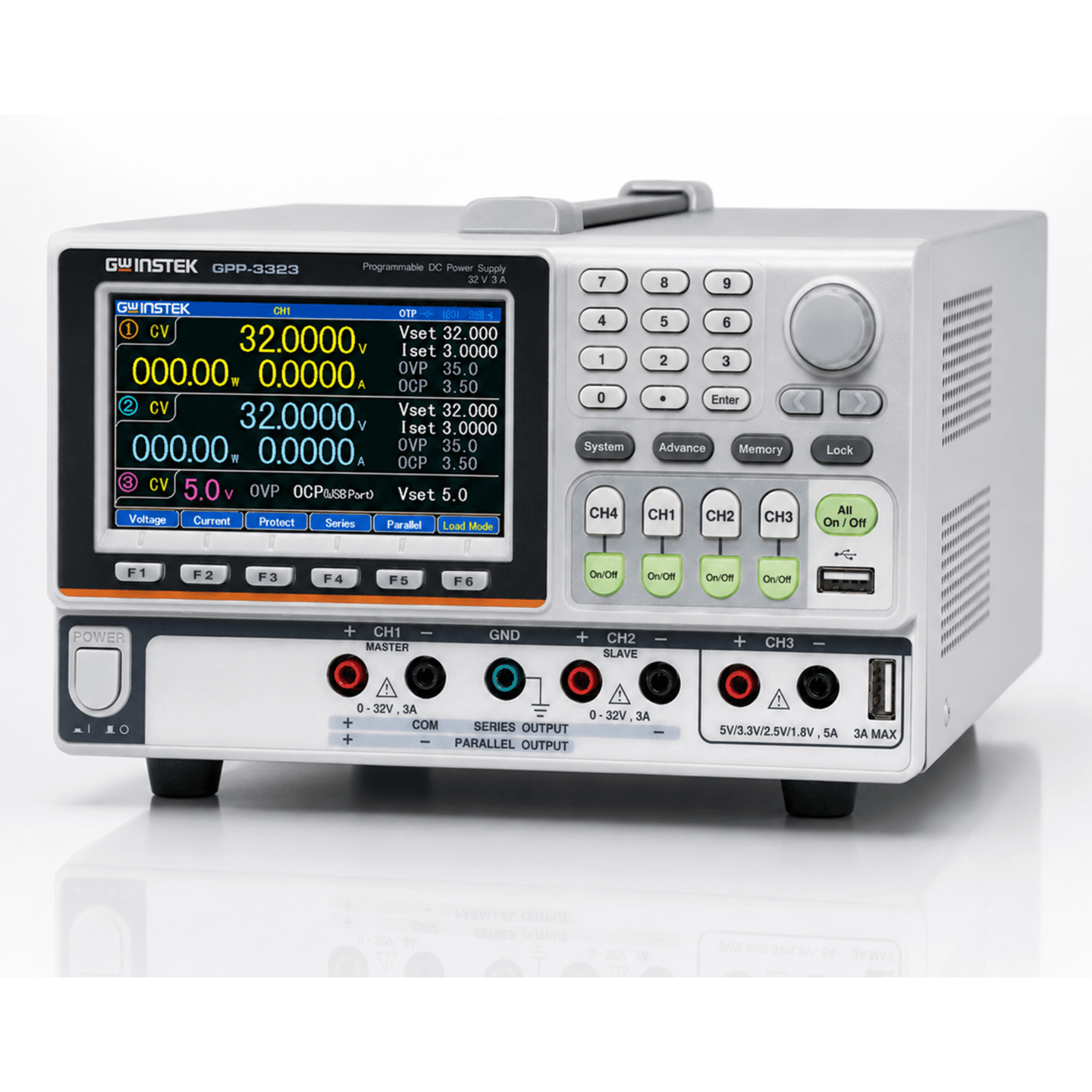

GPP-3323 Three Channel（CH1：0~32V / 0~3A，CH2：0~32V / 0 ~3A，CH3：1.8V，2.5V，3.3V，5.0V / 5A）、
Brand
GWINSTEK
|
Model
GPP-3323
|
🇹🇼 Taiwan
The maximum output power of the GPP series is 217W. The multi-channel programmable DC power supply includes four models:
GPP-1326 single channel (0~32V / 0~6A),
GPP-2323 dual channel (CH1: 0~32V / 0~3A , CH2: 0~32V / 0~3A),
GPP-3323 three channels (CH1: 0~32V / 0~3A, CH2: 0~32V / 0~3A, CH3: 1.8V, 2.5V, 3.3V, 5.0 V / 5A),
GPP-4323 four channels (CH1: 0~32V / 0~3A, CH2: 0~32V / 0~3A, CH3: 0~5V / 0~1A, CH4: 0~15V / 0~1A ).
This series not only provides programmable high resolution (1mV / 0.1mA) and readback resolution (0.1mV / 0.1mA), but also has the best low ripple noise characteristics ≤350uVrms/≤2mArms, transient output response time ≤50uS, providing independent output switches for each channel.
Price
NT$ 20,000
Out of Stock
Views: 2
Description
4.3" TFT LCD screen
Supports setting value, measured value and waveform output display
E-Load function (CC, CV, CR mode)
Setting resolution: 1mV/0.1mA; readback resolution: 0.1mV/0.1mA
Low ripple noise: ≦350uVrms/ ≦2mArms
Transient response time: ≦50uS
Hardware design OVP/OCP/OTP protection
Delay/output monitoring/output recording function
Intelligent temperature-controlled fan design effectively reduces noise
Sequence output function and built-in 8 sets of model waveforms
Output recording function records output voltage and current parameters (minimum recording interval 1 second)
Provides 10 sets of internal memory per sequence/delay/record/panel setup condition
Standard interface: RS-232, USB, Ext I/O; Optional: LAN, GPIB+LAN
Compatible with GPD-x303S series instructions
Specifications
- ChannelsDisplay power 0~50.00W Display voltage 1~33.00V Display current 0~3.200A CR mode setting range 1~1kΩ
- InterfaceIndependent output
- Regulation rate (CC)Linear regulation rate ≦0.2%+3mA Load regulation ≦0.2%+3mA
- Regulation rate (CV)Linear regulation rate ≦0.01%+3mV Load regulation rate ≦0.01%+3mV (rated current ≦3A); ≦0.02%+5mV(rated current＞3A)
- Output Voltage≦3mArms
- Current Limit Regulation Rate≦0.2% + 3mA
Features
- ChannelsThree channel
- Series and ParallelAutomatic series and parallel function
- Resolution0.1mV Current resolution 0.1mA Setting accuracy ≦±(0.03%+10mV) ≦±(0.30%+10mA)
Attributes
- Operating Temperature0~40°C / lower than 70%RH without dew
- Storage Temperature-10~60 °C / lower than 80%RH without dew
- Elevation LimitationLower than 1,000 meters
- Screen Display4.3
- ResolutionVoltage :100mV / Current :10mA
- AccuracyVoltage ±(0.1% of reading +30mV) / Current ±(0.3% of reading +6mA)
- Power SupplyAC100V/120V/220V/230V±10%, 50/60Hz
- Dimensions210(W) x 155(H) x 306(D) mm
- WeightApprox. 7 kg
- AccessoryPower Cable、Test Lead *2
