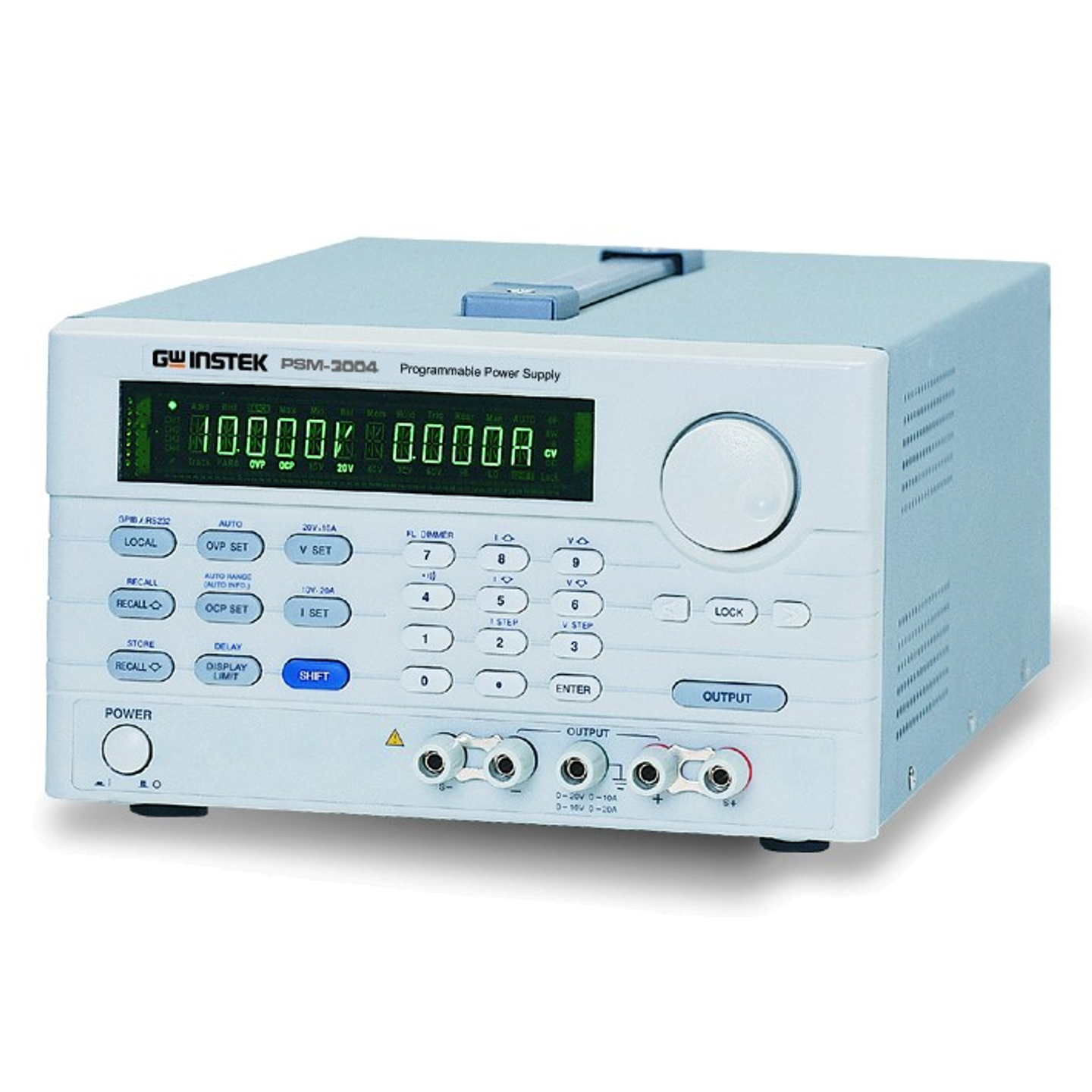

PSM Series is a programmable linear DC power supply with a 4-wire output.
Brand
GWINSTEK
|
Model
PSM-3004
The GPE-3323 series is a linear DC power supply, the number of product channels is single, the maximum voltage and current configuration is 32V/6A, and the setting and readback resolution provided are 10mV/1mA.
The main applications are the general electronics industry, academic research laboratories or personal research studios.
Out of Stock
Views: 69
Description
The PSM Series is a programmable linear DC power supply with a 4-wire output. It features a stable and pure power supply with a 0.01% load/line regulation and 350uVrms ripple. The unit is equipped with 100 memory presets for customizable time and sequence settings. It includes overvoltage protection (OVP), overcurrent protection (OCP), and over-temperature protection (OTP) for enhanced safety. The power supply offers output ON/OFF control and built-in self-diagnostic and calibration software. It provides a single-output dual-range with a maximum power of 200W (3004 model: 120W) and a resolution of 1mV/1mA. The unit has front and rear output terminals and standard interfaces, including RS-232 and GPIB (IEEE 488.2).
Specifications
- Output Voltage0~32V / 0~３A
- Output Current5V / 5A Max
- InterfaceIndependent output
- Constant Voltage Regulation≦0.01%+3mV
- Accuracy≦0.01% + 3mV (Rated current ≦3A) ; ≦0.01% + 5mV (Rated current ≦10A) ; ≦0.02% + 5mV (Rated current≧10A)
- Voltage Limit Regulation Rate≦0.2% + 3mA
- Voltage Load Regulation RatePower regulation rate ≦3mV / Load regulation rate ≦5mV
- Current Limit Regulation Rate5V±5%
- Current Load Regulation Rate5A
- Stable Performance電壓 ±(0.02% + 1mV) / 電流 ±(0.1% + 1mA)
- Temperature Coefficient電壓 ±(0.01% + 3mV) / 電流 ±(0.02% + 3mA)
- Voltage Ripple≦350μVrms / 2mVpp
- Current Ripple≦2mArms
- Load Transient Recovery Time≦50μs (滿載至半載, 輸出於 15mV 內回穩)
Features
- ChannelsThree channel
- Output ControlAutomatic series and parallel function
- Operating Mode10mV / 1mA (Settings and readback )
- Memory FunctionOn/ Off switch
- CommunicationSimple external control function on the rear panel
- Overload ProtectionWith voltage/current setting and readback parameter viewing function
- Output CharacteristicsWith panel lock function, intelligent temperature control fan, effectively reduce the operating noise
Attributes
- Operating Temperature0~40°C / lower than 70%RH without dew
- Storage Temperature-10~60 °C / lower than 80%RH without dew
- Altitude LimitLower than 1,000 meters
- Power Supply4.3 " LCD Display
- DimensionsVoltage :100mV / Current :10mA
- WeightVoltage ±(0.1% of reading +30mV) / Current ±(0.3% of reading +6mA)
- AccessoriesAC100V/120V/220V±10%; 230V(+10%~-6%); 50/60Hz
