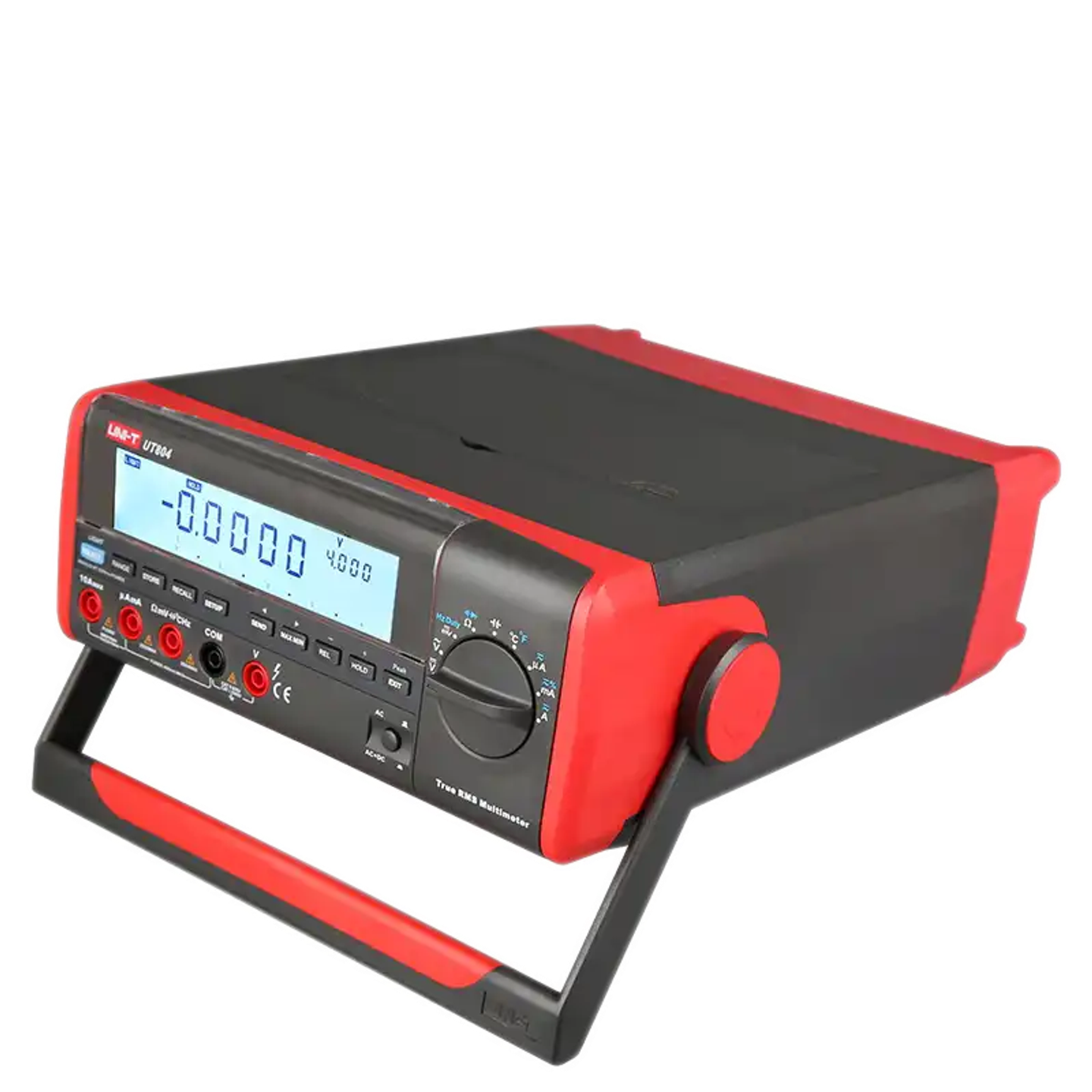

UT-804 40,000 Digits Digital Multimeter DMM
Brand
UNI-T
|
Model
UT-804
|
🇨🇳 China
The UT-804 digital multimeter features:
• Records up to 9,999 measurement data points
• Measurement ranges include voltage, current, resistance, inductance, frequency and more
• Supports RS232 or USB communication interface for computer connection
• Automatic shutdown function after approximately 10 minutes to save battery
• Input impedance greater than 10MΩ for enhanced measurement accuracy
Out of Stock
Views: 0
Description
The UT-804 is a benchtop 40,000 digits true RMS digital multimeter that offers comprehensive measurement capabilities, accurately measuring voltage, current, resistance, inductance, and frequency. Its stable performance and high precision make it an ideal tool for the maintenance and repair of electrical circuits and equipment. Whether for professional technicians or home users, the UT-804 provides reliable test results to enhance work efficiency.
Specifications
- DC voltage0.01~100% (±(1%+40)>
- DC current0.0001 V
- AC voltageless than 50 Ω
- AC current400μ / 4000μ / 40m / 400m / 10 A (±(1.5%+40)>
- Resistance400 / 4K / 40K / 400K / 4M / 40M Ω (±(1.5%+40)>
- Capacitance40n / 400n / 4μ / 40μ / 400μ / 4m / 40m F (±(5%+20)>
- Frequency40/ 400/ 4k/ 40k/ 400k/ 4M/ 40M/ 400M Hz (±(0.01%+8)>
- Temperature range-40 °C~1,000 °C (-40~1832 °F) (±(1%+30 °C)>
Features
- Data Storage9999 pcs
- 4~20mA Measurement Display 0~100%0~100%
- Auto Power OffAbout 10 minutes
- Input Impedance≥10MΩ
Attributes
- Operating Temperature-10~60°C / lower than 75%RH without dew
- Storage Temperature0~40°C / lower than 75%RH without dew
- Elevation LimitationLower than 1,000 meters
- Power SupplyAC110V or 1.5V Battery x 6
- Dimensions310 × 240 × 105 mm
- WeightApprox. 2.2 kg (without battery)
- AccessoryTest line, type-K thermocouple probe, multi-function measuring seat, Adaptor , USB cable, software, manual
