Digital Multimeter

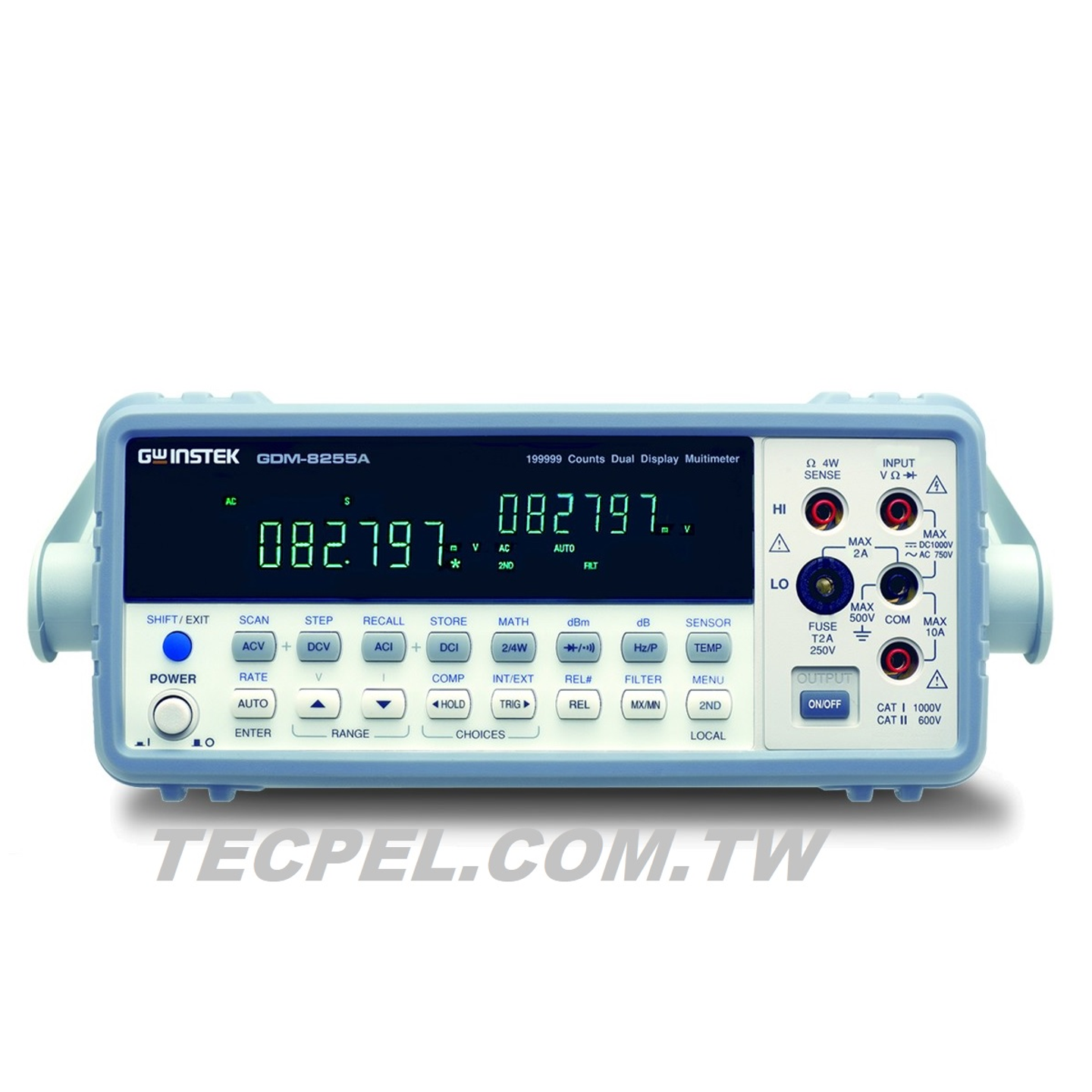

Brand GWINSTEK | Model GDM-8255A
Digital Multimeter
GDM-8255A - 1
GDM-8255A - 2
GDM-8255A - 3
The GDM-8255A Digital Multimeter features a range of measurement capabilities including: - DC voltage measurement - AC voltage measurement - DC current measurement - AC current measurement - Resistance measurement - Frequency measurement Its high accuracy makes it an ideal choice for precision measurement.
Out of Stock
Views: 0

Description

The GDM-8255A Digital Multimeter is a high-performance measuring instrument from GW Instek, designed for precise measurement of various voltages and currents, making it ideal for laboratory and industrial environments. This device offers a variety of measurement functions to meet the high precision demands of users, providing highly accurate data support.

Specifications

  • 直流電壓±(0.012% rdg + 5 digits)
  • 交流電壓20Hz~45Hz : ±(1% rdg + 100 digits)
  • 直流電流10mA , 100mA : ±(0.05% rdg + 15 digits)
  • 阻抗範圍100Ω, 1kΩ, 10kΩ, 100kΩ, 1MΩ, 10MΩ, 100MΩ
  • 二極體測試開路電壓 2.0V, 測試電流 0.5mA

Features

  • 取樣率慢速 5 1/2 digits, 10 readings/second
  • 顯示器VFD, 雙色顯示
  • 介面Digital I/O, USB Device, RS-232C
  • 自動/手動範圍是
  • 資料記錄是

Attributes

  • Dimensions265(W) x 107(H) x 350(D) mm
  • WeightApprox. 2.6 kg
  • Power SupplyAC 100V-240V ±10%, 50/60Hz
